MINMAX Technology
MIE06-HI
MIE06-HI
DC-DC Power Supply
6W Isolated Power Supply
Key Features:
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- Ultra-high I/O Isolation 9000VDC with Reinforced Insulation, rate for 1000Vrms Working Voltage
- Common Mode Transient Immunity: 15kV/μS
- No Min. Load Requirement
- Under-Voltage, Overload/Voltage and Short Circuit Protection
Approvals: EN 55032, EN 62368-1, EN 60950-1, RoHS
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIE06-HI

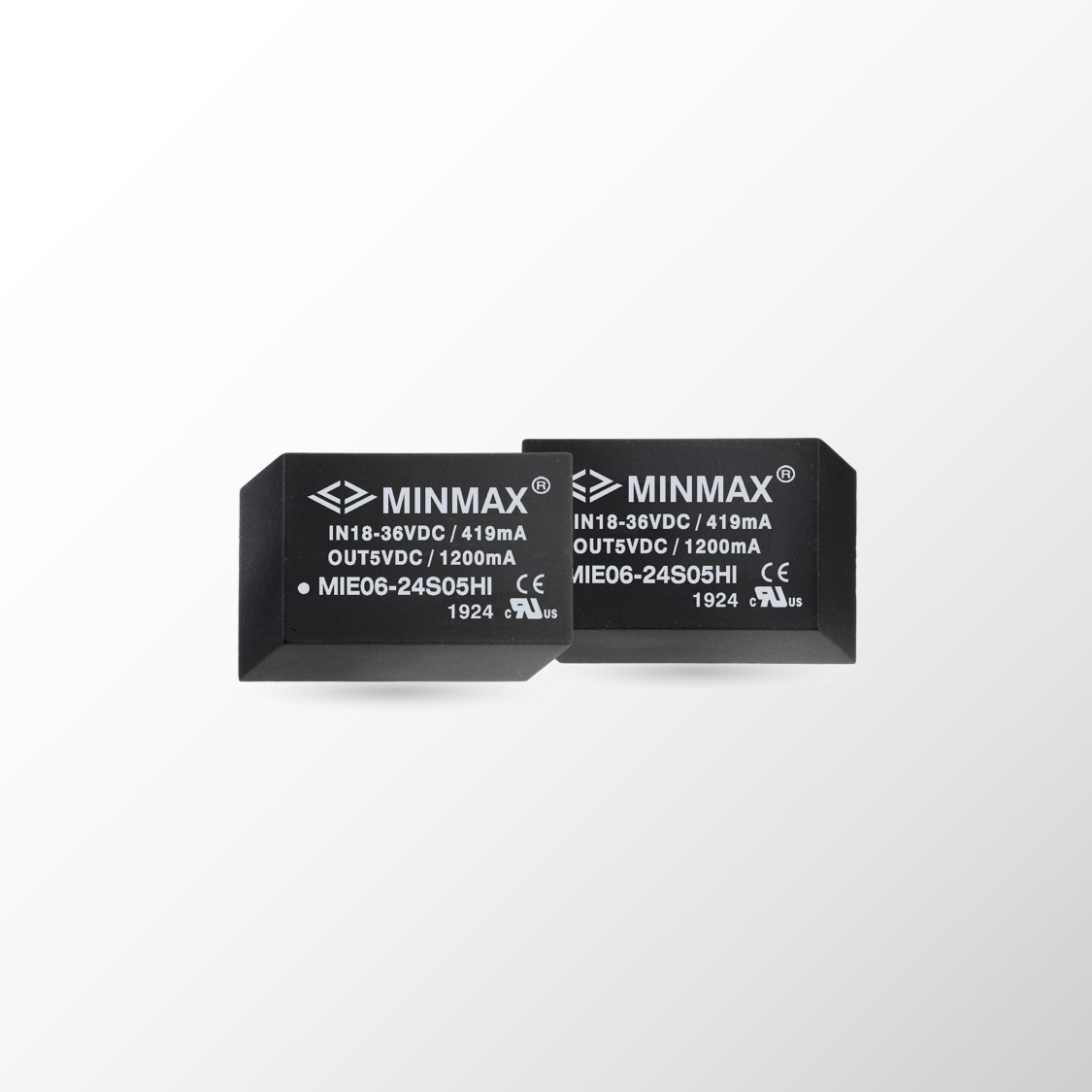

Product information "MIE06-HI"
DC-DC Power Supply
6W Isolated Power Supply
Key Features:
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- Ultra-high I/O Isolation 9000VDC with Reinforced Insulation, rate for 1000Vrms Working Voltage
- Common Mode Transient Immunity: 15kV/μS
- No Min. Load Requirement
- Under-Voltage, Overload/Voltage and Short Circuit Protection
Approvals: EN 55032, EN 62368-1, EN 60950-1, RoHS
| Cooling Method: | Convection |
|---|---|
| Format: | PCB Mount |
| Input Voltage: | 12, 24, 48V |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +95 degC |
| Output Power: | 6W |
| Output Voltage: | 5, 12, 15, 24, ±12, ±15V |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
