MINMAX Technology
MIE06-HI-48
MIE06-HI-48
The

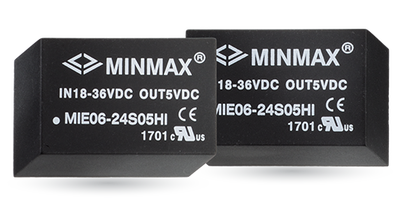

MINMAX MIE06-HI series is a range of high performance 6W DC-DC converter within
encapsulated DIP-24 package which specifically design for high isolation
applications where reinforced insulation and high working voltage are required.
There are 18 models available for input voltage of 12, 24, 48VDC with wide 2:1
input range and fixed output voltage. The I/O isolation is specified for
9000VDC with reinforced insulation, which rated for 1000Vrms working voltage.
Further features include under-voltage, overload, over voltage, short circuit
protection, no min. load requirement, EMI conduction EN 55032 Class A approved,
low I/O capacitance 40pF max. and operating ambient temp. range by -40°C to 95°C by high efficiency up to
89%. MIE06-HI series conform to UL/cUL/IEC/EN 62368-1(60950-1) safety
approvals. The MIE06-HI series offer a superior solution for demanding
application in requesting a certified supplementary.
Read More
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIE06-HI-48
Product information "MIE06-HI-48"
The
MINMAX MIE06-HI series is a range of high performance 6W DC-DC converter within
encapsulated DIP-24 package which specifically design for high isolation
applications where reinforced insulation and high working voltage are required.
There are 18 models available for input voltage of 12, 24, 48VDC with wide 2:1
input range and fixed output voltage. The I/O isolation is specified for
9000VDC with reinforced insulation, which rated for 1000Vrms working voltage.
Further features include under-voltage, overload, over voltage, short circuit
protection, no min. load requirement, EMI conduction EN 55032 Class A approved,
low I/O capacitance 40pF max. and operating ambient temp. range by -40°C to 95°C by high efficiency up to
89%. MIE06-HI series conform to UL/cUL/IEC/EN 62368-1(60950-1) safety
approvals. The MIE06-HI series offer a superior solution for demanding
application in requesting a certified supplementary.
| Industry: | Ultra-High Isolation |
|---|---|
| Input Voltage: | 48V |
| Operating Temp Range: | -40 to +95 degC |
| Output Power: | 6W |
| Output Voltage: | 5, 12, 15, ±12, ±15V |
| Package: | DIP-24 |
| Power Type: | DC-DC |
