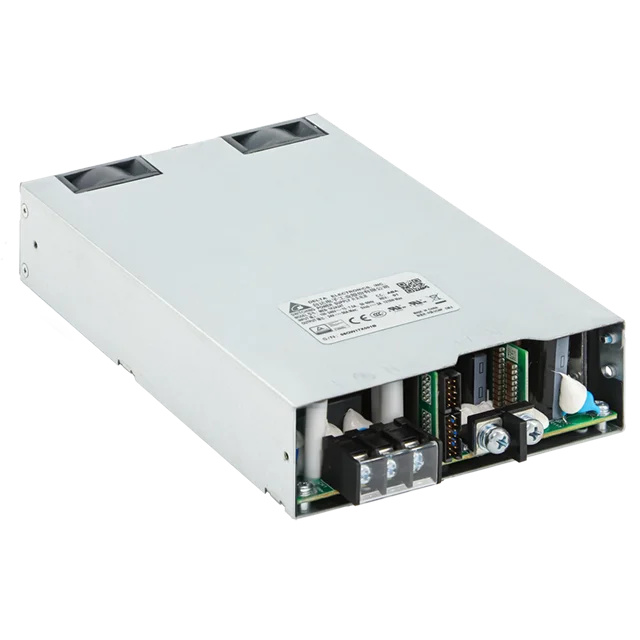

DeltaPSU
MEB-1200
Key features:
- Up to 1200 Watt in 5.00" x 8.03" x 1.59" Package
- Full Power from 90V to 264V, up to 50°C Ambient
- Up to 500KHrs MTBF
- 2MOPP Isolation, Suited for Type BF Medical Products
- 5V/2A Standby Output
- Current Sharing
- Class B Conducted and Radiated EMI
- IEC60601-1-2 4th Edition Immunity Compliance
- PMBus Ver 1.3 Supported
- Intelligent Fan Speed Control
| Model | MEB-1K2A24 | MEB-1K2A42 | MEB-1K2A48 |
| Output voltage | 24V | 42 V | 48 V |
| Output current | 50A | 28.5 A | 28 A |
| Output power | 1200W | 1200 W | 1200 W |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MEB-1200
Product information "MEB-1200"
Key features:
- Up to 1200 Watt in 5.00" x 8.03" x 1.59" Package
- Full Power from 90V to 264V, up to 50°C Ambient
- Up to 500KHrs MTBF
- 2MOPP Isolation, Suited for Type BF Medical Products
- 5V/2A Standby Output
- Current Sharing
- Class B Conducted and Radiated EMI
- IEC60601-1-2 4th Edition Immunity Compliance
- PMBus Ver 1.3 Supported
- Intelligent Fan Speed Control
| Model | MEB-1K2A24 | MEB-1K2A42 | MEB-1K2A48 |
| Output voltage | 24V | 42 V | 48 V |
| Output current | 50A | 28.5 A | 28 A |
| Output power | 1200W | 1200 W | 1200 W |
| Dimensions: | 204 x 127 x 40.5 mm |
|---|---|
| Efficiency: | 93%, 93.5%, 94% |
| Operating Temp Range: | -20 to +70 degC |
| Output Current: | 25A, 28.5A, 50A |
| Output Power: | 1200W |
| Output Voltage: | 24V, 42V, 48V |
| Certifications: | CAN/CSA C22.2 No. 62368-1, CAN/CSA C22.2 No 60601-1, CSA C22.2 No 60950-1, EN 60601-1, EN 60950-1, IEC 60601-1, IEC 60950-1, IEC 62368-1, TUV EN 60601-1-11, UL60601:1, UL 60950-1, UL 62368-1 |
