DeltaPSU
MDS-005
Key features:
- Safety Approvals to IEC 60601-1 & IEC 62368-1
- Efficiency Level VI
- Class B EMI and 4th Edition Immunity Compliant
- IP22 Ingress Protection Rating
- 1 Million Hours MTBF
- IT & Medical Safety Approvals

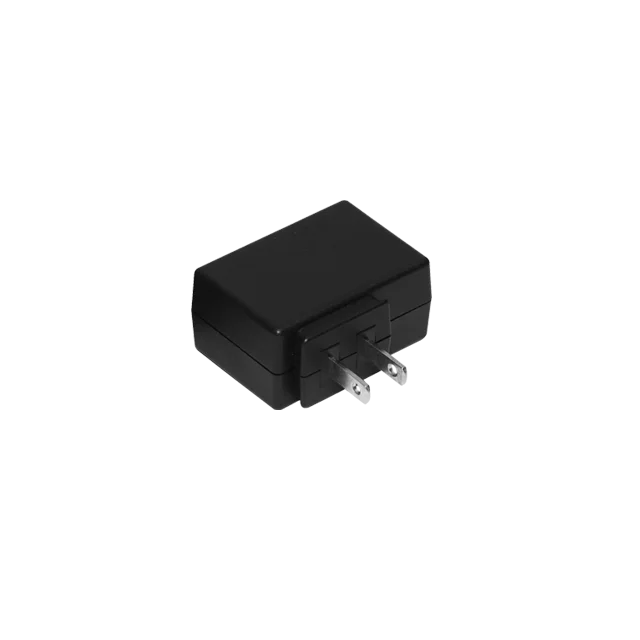

The MDS‑005AAS05 series all deliver 5 V at 1 A (5 W) with universal 90‑264 VAC input and the same medical safety approvals (IEC 60601‑1 & IEC 62368‑1), IP22 rating and high reliability. What differs between the variants is primarily the regional plug and connector configuration: A is the standard China wall‑mount version while B and C are tailored for US/Japan and EU wall‑mount types respectively, and AU/AV denote China type models with Micro USB or barrel output connectors. These options help match the adapter to specific regional power outlets and output connector needs without changing core electrical performance.
Available models:
- MDS-005AAS05 A
- MDS-005AAS05 AU
- MDS-005AAS05 AV
- MDS-005AAS05 B
- MDS-005AAS05 C
If you are interested in our product, you can contact us through our contact page.
Key features:
- Safety Approvals to IEC 60601-1 & IEC 62368-1
- Efficiency Level VI
- Class B EMI and 4th Edition Immunity Compliant
- IP22 Ingress Protection Rating
- 1 Million Hours MTBF
- IT & Medical Safety Approvals
The MDS‑005AAS05 series all deliver 5 V at 1 A (5 W) with universal 90‑264 VAC input and the same medical safety approvals (IEC 60601‑1 & IEC 62368‑1), IP22 rating and high reliability. What differs between the variants is primarily the regional plug and connector configuration: A is the standard China wall‑mount version while B and C are tailored for US/Japan and EU wall‑mount types respectively, and AU/AV denote China type models with Micro USB or barrel output connectors. These options help match the adapter to specific regional power outlets and output connector needs without changing core electrical performance.
Available models:
- MDS-005AAS05 A
- MDS-005AAS05 AU
- MDS-005AAS05 AV
- MDS-005AAS05 B
- MDS-005AAS05 C
| Dimensions: | 39.5 x 56.5 x 28.0 mm |
|---|---|
| Efficiency: | 71% |
| Output Current: | 1A |
| Output Power: | 5W |
| Output Voltage: | 5V |
| Operating Temperature: | 0 to +40 degC |
| Certifications: | ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No 60601-1, EN 60601-1, IEC 60601-1 |
