MDP200 Series

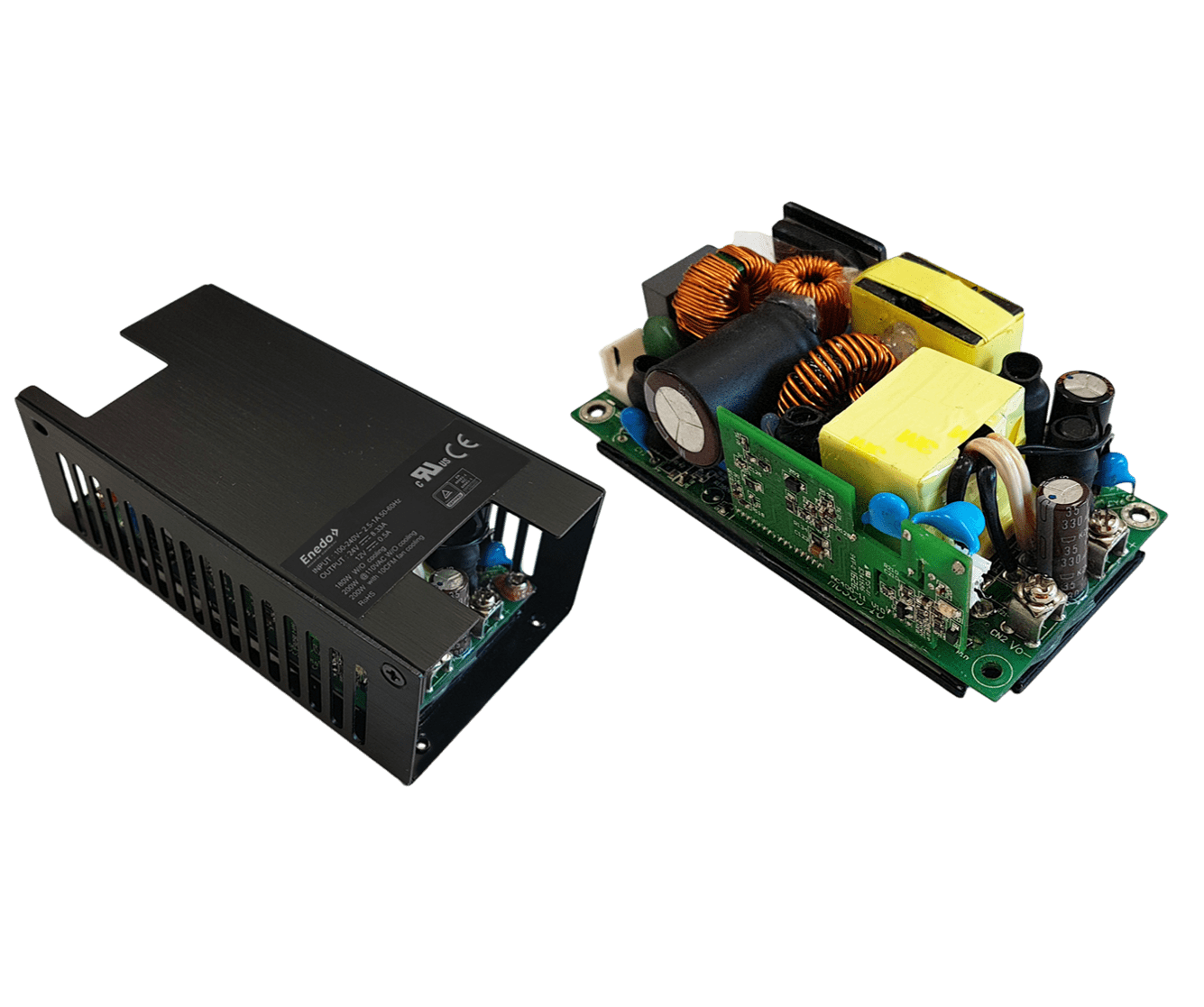

Ultra compact, 200W open-frame medical grade power supply series, the MDP200 is designed to provide 2x MoPP grade protection, and is suitable for use in BF medical appliances. Available in 12, 24 and 48 VDC outputs, this series of high performance AC/DC power supplies provides up to 200 W of steady output power with forced air, and 160 W with convection cooling over the full 90 – 264 VAC wide input voltage range, all in a compact 2 x 4 x 1.48″ form factor.
Read More
Key featuresÂ
- Wide input voltage range 90 – 264 VACÂ
- Steady 200 W with forced air 160 W with free air coolingÂ
- IEC protection Class I &Â
- Class II configurationsÂ
- Compact form factor 2 x 4 x 1.48″Â
- High efficiency 93.5%Â
- 12, 24 and 48 VDC standard output variantsÂ
- Low earth/touch leakage currentsÂ
- Low no-load power consumption <0.3W)Â
- 12V auxiliary, 0.5A outputÂ
- 2x MoPP – BF compatible
Applications
- Â Diagnostic medical equipment
- Â Medical pumps & ventilators
- Â Dialysis devices
- Â Home healthcare appliances
- Â Medical monitoring systems
- Â Portable medical equipment
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MDP200
Product information "MDP200 Series"
Ultra compact, 200W open-frame medical grade power supply series, the MDP200 is designed to provide 2x MoPP grade protection, and is suitable for use in BF medical appliances. Available in 12, 24 and 48 VDC outputs, this series of high performance AC/DC power supplies provides up to 200 W of steady output power with forced air, and 160 W with convection cooling over the full 90 – 264 VAC wide input voltage range, all in a compact 2 x 4 x 1.48″ form factor.
Key featuresÂ
- Wide input voltage range 90 – 264 VACÂ
- Steady 200 W with forced air 160 W with free air coolingÂ
- IEC protection Class I &Â
- Class II configurationsÂ
- Compact form factor 2 x 4 x 1.48″Â
- High efficiency 93.5%Â
- 12, 24 and 48 VDC standard output variantsÂ
- Low earth/touch leakage currentsÂ
- Low no-load power consumption <0.3W)Â
- 12V auxiliary, 0.5A outputÂ
- 2x MoPP – BF compatible
Applications
- Â Diagnostic medical equipment
- Â Medical pumps & ventilators
- Â Dialysis devices
- Â Home healthcare appliances
- Â Medical monitoring systems
- Â Portable medical equipment
| Input Voltage: | 12, 24, 48V |
|---|---|
| Market Sector: | Medical |
| Output Power: | 200W |
| Power Format: | Open Frame |
