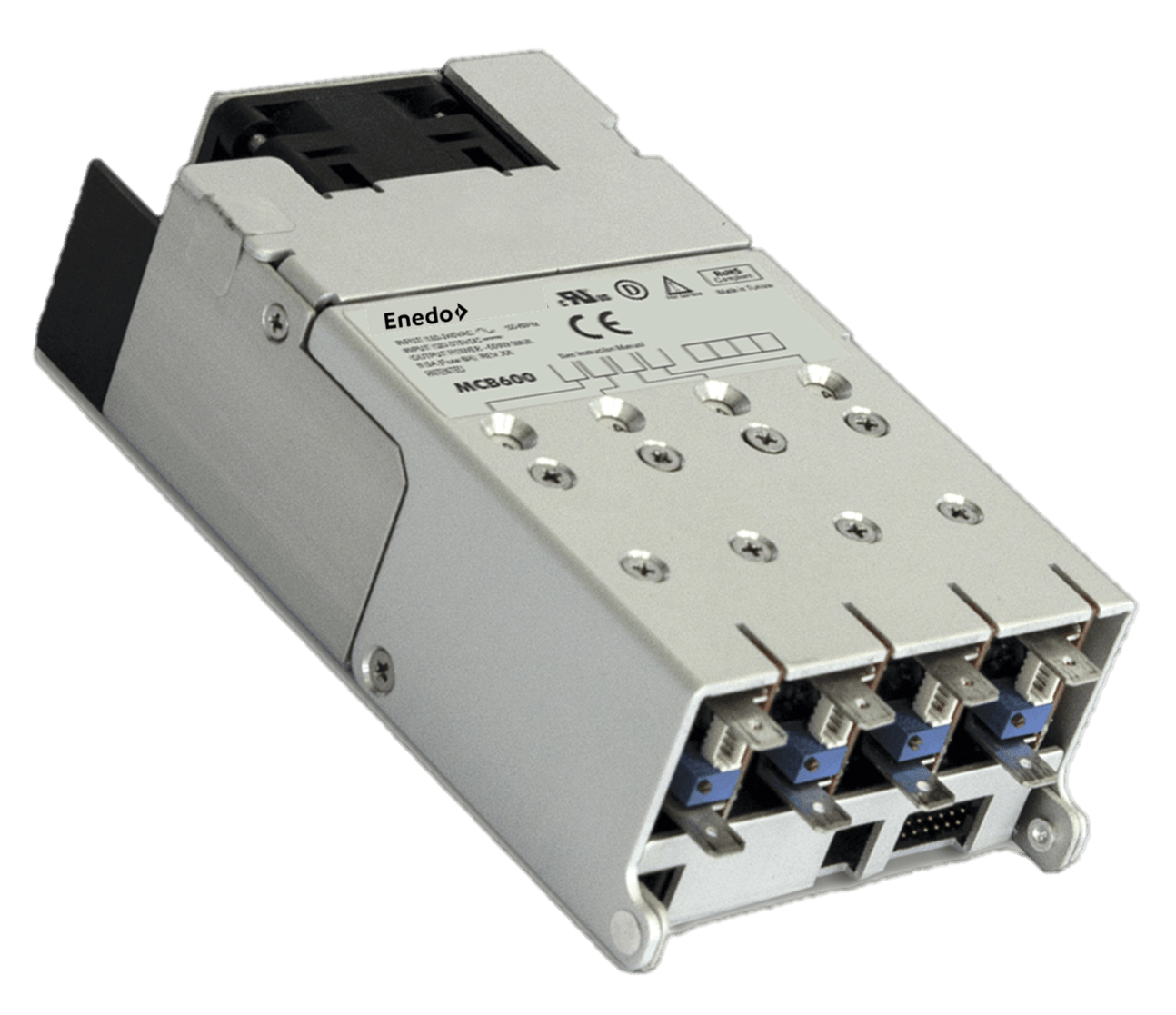

Enedo
MCB600 Series
The MCB600 is a highly configurable medical grade power supply series that provides unrivalled performance and flexibility.
Read More
Delivering 600 W and up to 8 outputs from a 3 x 5.6 x 1.6″ (78 x 144 x 41mm) package, the MCB600 is one of the smallest commercially available configurable power solutions on the market today.
Key features
- Configurable from 1 to 8 outputs
- High power density (23W/in3)
- Wide input voltage (85 – 264 VAC)
- Steady 600 W output power from a 3 x 5.6 x 1.6” form factor
- Fan speed control function for quiet operation
- Output module parallel / serial operation
- Output current monitoring signal
- Power chassis +5V, 200mA bias supply:
- output modules +5V, 1-mA bias supply
- Remote voltage / current programming
- Power good signal for each slot
Applications
- Clinical analysers
- Laboratory diagnostic equipment
- Ventilation equipment
- Clinical monitoring and controls
- Laser medical/aesthetic equipment
- Portable diagnostics
- Dental equipment
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MCB600
Product information "MCB600 Series"
The MCB600 is a highly configurable medical grade power supply series that provides unrivalled performance and flexibility.
Delivering 600 W and up to 8 outputs from a 3 x 5.6 x 1.6″ (78 x 144 x 41mm) package, the MCB600 is one of the smallest commercially available configurable power solutions on the market today.
Key features
- Configurable from 1 to 8 outputs
- High power density (23W/in3)
- Wide input voltage (85 – 264 VAC)
- Steady 600 W output power from a 3 x 5.6 x 1.6” form factor
- Fan speed control function for quiet operation
- Output module parallel / serial operation
- Output current monitoring signal
- Power chassis +5V, 200mA bias supply:
- output modules +5V, 1-mA bias supply
- Remote voltage / current programming
- Power good signal for each slot
Applications
- Clinical analysers
- Laboratory diagnostic equipment
- Ventilation equipment
- Clinical monitoring and controls
- Laser medical/aesthetic equipment
- Portable diagnostics
- Dental equipment
