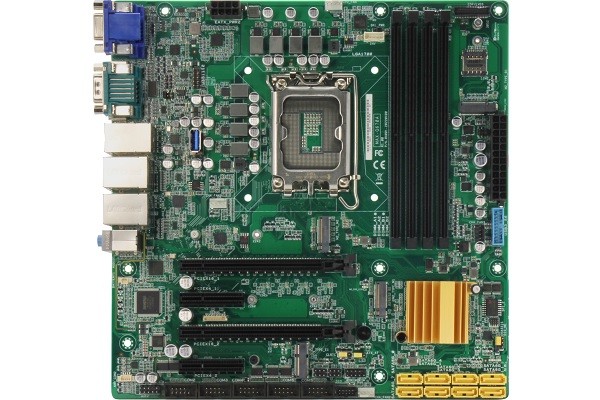

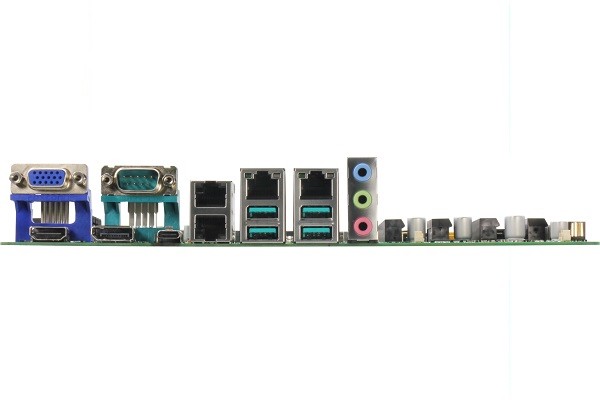

MAX-Q670A
Micro-ATX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors, TDP Max. 125W
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors
- DDR5 4000MHz U-DIMM x 4, up to 128GB
- Four Independent Displays: HDMI 2.0 x1, DP x1, VGA x1, LVDS/eDP x1
- GbE LAN x2 (Optional: Additional 2.5GbE LAN x 2, Intel® I226-LM)
- M.2 2242/2280 M-Key x 2, M.2 3042/3052/2242 B-Key + Micro SIM Slot, M.2 2230 E-Key x 1
- USB 3.2 Gen 2 x 4, USB 3.2 Gen 1 x 3, USB 2.0 x 2 (Optional: USB Type-C x 1)
- SATA x 8
- Switchable USB Power feature for USB device reset
- Bootable feature in rear USB Port for enhanced security
- Onboard TPM 2.0
| PART NUMBER | MAX-Q670A-A10-2L | MAX-Q670A-A10-4LC-226 |
|---|---|---|
| CPU | LGA1700 Socket | LGA1700 Socket |
| RAM | DDR5 4000MHz | DDR5 4000MHz |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | HDMI x 1, DP x 1, VGA x 1 | HDMI x 1, DP x 1, VGA x 1 |
| STORAGE | SATA III x 8 M.2 2242/80 M-Key x 2 | SATA III x 8 M.2 2242/80 M-Key x 2 |
| LVDS | LVDS/eDP x 1 | LVDS/eDP x 1 |
| LAN | Intel® GbE x 2 | Intel® GbE x 4 |
| USB | USB 3.2 Gen 2 x 4, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 3.2 Gen 1 x 1 (Type-A, Vertical) | USB 3.2 Gen 2 x 4, Type C x 1, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 3.2 Gen 1 x 1 (Type-A, Vertical) |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe [x16] x 2, PCIe [x4] x 2, M.2 3042/3052/2242 B-Key x 1, Micro SIM Card Slot x 1, M.2 2230 E-Key x 1 | PCIe [x16] x 2, PCIe [x4] x 2, M.2 3042/3052/2242 B-Key x 1, Micro SIM Card Slot x 1, M.2 2230 E-Key x 1 |
| POWER | ATX | ATX |
| TPM | Onboard TPM 2.0 | Onboard TPM 2.0 |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MAX-Q670A
Product information "MAX-Q670A"
Micro-ATX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors, TDP Max. 125W
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors
- DDR5 4000MHz U-DIMM x 4, up to 128GB
- Four Independent Displays: HDMI 2.0 x1, DP x1, VGA x1, LVDS/eDP x1
- GbE LAN x2 (Optional: Additional 2.5GbE LAN x 2, Intel® I226-LM)
- M.2 2242/2280 M-Key x 2, M.2 3042/3052/2242 B-Key + Micro SIM Slot, M.2 2230 E-Key x 1
- USB 3.2 Gen 2 x 4, USB 3.2 Gen 1 x 3, USB 2.0 x 2 (Optional: USB Type-C x 1)
- SATA x 8
- Switchable USB Power feature for USB device reset
- Bootable feature in rear USB Port for enhanced security
- Onboard TPM 2.0
| PART NUMBER | MAX-Q670A-A10-2L | MAX-Q670A-A10-4LC-226 |
|---|---|---|
| CPU | LGA1700 Socket | LGA1700 Socket |
| RAM | DDR5 4000MHz | DDR5 4000MHz |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | HDMI x 1, DP x 1, VGA x 1 | HDMI x 1, DP x 1, VGA x 1 |
| STORAGE | SATA III x 8 M.2 2242/80 M-Key x 2 | SATA III x 8 M.2 2242/80 M-Key x 2 |
| LVDS | LVDS/eDP x 1 | LVDS/eDP x 1 |
| LAN | Intel® GbE x 2 | Intel® GbE x 4 |
| USB | USB 3.2 Gen 2 x 4, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 3.2 Gen 1 x 1 (Type-A, Vertical) | USB 3.2 Gen 2 x 4, Type C x 1, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 3.2 Gen 1 x 1 (Type-A, Vertical) |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe [x16] x 2, PCIe [x4] x 2, M.2 3042/3052/2242 B-Key x 1, Micro SIM Card Slot x 1, M.2 2230 E-Key x 1 | PCIe [x16] x 2, PCIe [x4] x 2, M.2 3042/3052/2242 B-Key x 1, Micro SIM Card Slot x 1, M.2 2230 E-Key x 1 |
| POWER | ATX | ATX |
| TPM | Onboard TPM 2.0 | Onboard TPM 2.0 |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) |
| CPU: | 12th Generation, 13th Generation, 14th Generation, LGA1700 socket, Max. 125W TDP |
|---|---|
| Processor Family: | Intel® Core™ (12th / 13th / 14th Gen) |
| Memory : | DDR5 4000 MHz DDR5 UDIMM ×4 Max. 128 GB (Non-ECC, un-buffered) |
| Display : | DP 1.4 ×1, DP up to 4096 × 2160 @60Hz, HDMI 2.0 ×1, HDMI up to 4096×2160 @60Hz, LVDS / eDP ×1, LVDS up to 1920 × 1080 @60Hz, VGA, VGA up to 1920 × 1200 @60Hz, eDP up to 3840 × 2160 @30Hz |
| USB Ports: | USB 2.0 x2, USB3.2 GEN1 x 2 (header), USB 3.2 Gen2 x4, USB Type-C x1 |
| Expansion : | M.2 2230 E-Key x 1, PCIe [x16] slot ×1 |
| Expansion : | PCIe Gen 3 [x4] slot ×1 |
| Power Requirement: | ATX 24-pin + ATX 12V connector, ATX power |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Intel® Q670 Chipset, Micro-ATX form factor (244 mm × 244 mm), Watchdog timer |
| Audio Technical Data: | Realtek ALC897/892 Audio x1 |
