MAX-Q470A
MAX-Q470A | Comet Lake | Micro-ATX Industrial Motherboard with 10th Generation Intel® Core™ Processor
Key features:
- 10th Generation Intel® Coreâ„¢ LGA1200 ProcessorÂ
- Supports Power 10 Core 80W max.Â
- DDR4 2933/2666/2400 MHz, max. 128GBÂ

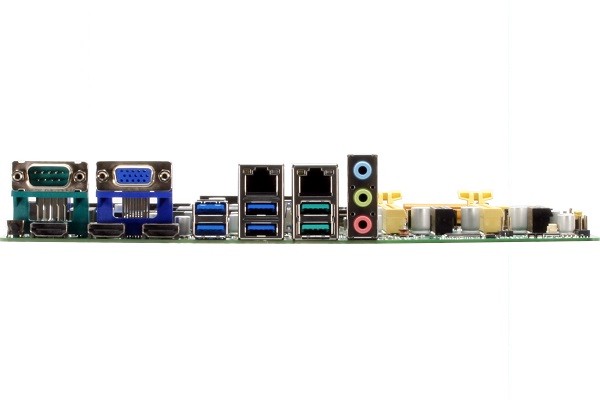

- Three Independent Displays: HDMI x 3 (2.0 x 1, 1.4 x 2), VGA x 1, LVDS x 1Â
- Dual Intel® Gigabit Ethernet, LAN1 Supports iAMT 12.0Â
- USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 7, USB 2.0 x 2Â
- BIOS recovery function, convenient way to flash BIOS if neededÂ
- TPM Onboard
| PART NUMBER | MAX-Q470A-A11-210 |
|---|---|
| CPU | LGA 1200 socket |
| RAM | DDR4 2933/2666/2400 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 3, VGA x 1, LVDS x 1 |
| LVDS | 1 |
| STORAGE | SATA3 x 4, M.2 2280/2242 M-key (PCIex4) x 1 |
| LAN | Intel®GbE x 2 |
| USB | USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 4, USB 3.2 Gen1 box header x 1, USB 3.2 Gen1 (vertical) type A x 1, USB 2.0 header x 1 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x16] (8lanes) x 1, PCIe[x4] x 1, PCIe[x4] (2lanes) x 1, M.2 2230 E-key (PCIe/CNVI) x 1, M.2 2280/2242 M-key (PCIex4) x 1, M.2 3042/3052/2242 B-key (PCIe/USB/SATA) x 1, Micro SIM card Slot x 1 |
| POWER | ATX |
| TPM | Onboard |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MAX-Q470A
Product information "MAX-Q470A"
MAX-Q470A | Comet Lake | Micro-ATX Industrial Motherboard with 10th Generation Intel® Core™ Processor
Key features:
- 10th Generation Intel® Coreâ„¢ LGA1200 ProcessorÂ
- Supports Power 10 Core 80W max.Â
- DDR4 2933/2666/2400 MHz, max. 128GBÂ
- Three Independent Displays: HDMI x 3 (2.0 x 1, 1.4 x 2), VGA x 1, LVDS x 1Â
- Dual Intel® Gigabit Ethernet, LAN1 Supports iAMT 12.0Â
- USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 7, USB 2.0 x 2Â
- BIOS recovery function, convenient way to flash BIOS if neededÂ
- TPM Onboard
| PART NUMBER | MAX-Q470A-A11-210 |
|---|---|
| CPU | LGA 1200 socket |
| RAM | DDR4 2933/2666/2400 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 3, VGA x 1, LVDS x 1 |
| LVDS | 1 |
| STORAGE | SATA3 x 4, M.2 2280/2242 M-key (PCIex4) x 1 |
| LAN | Intel®GbE x 2 |
| USB | USB 3.2 Gen2 x 2, USB 3.2 Gen1 x 4, USB 3.2 Gen1 box header x 1, USB 3.2 Gen1 (vertical) type A x 1, USB 2.0 header x 1 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | PCIe[x16] x 1, PCIe[x16] (8lanes) x 1, PCIe[x4] x 1, PCIe[x4] (2lanes) x 1, M.2 2230 E-key (PCIe/CNVI) x 1, M.2 2280/2242 M-key (PCIex4) x 1, M.2 3042/3052/2242 B-key (PCIe/USB/SATA) x 1, Micro SIM card Slot x 1 |
| POWER | ATX |
| TPM | Onboard |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C |
| CPU: | 10th Generation Intel® Core™ Processors, LGA1200 Socket, Supports up to 10-core CPUs, Max. 80W |
|---|---|
| Processor Family: | Intel® Core™ 10th Generation (Comet Lake) |
| Memory : | Dual-Channel DDR4 DDR4 DIMM ×4 2933 / 2666 / 2400 MHz Max. 128 GB (Non-ECC, un-buffered) |
| Display : | HDMI 1.4 ×2, HDMI 2.0 ×1, HDMI up to 4096×2160 @60Hz, LVDS, LVDS up to 1920 × 1200 @60Hz, VGA, VGA up to 1920 × 1200 @60Hz |
| Storage : | M.2 2280/2242 M-Key ×1 (PCIe x4), SATA III (6.0 Gb/s) ×4 |
| USB Ports: | USB 2.0 x2, USB3.2 GEN2 x 2 (Rear), USB 3.2 Gen 1 ×7 |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1, PCIe [x16] slot ×1, micro SIM x1 |
| Expansion : | PCI-Express x4 slot ×1, PCIe x1 ×2 |
| Power Requirement: | ATX 24-pin + ATX 12V connector, ATX power |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Audio: Realtek ALC897, Line-out / Mic-in, Intel® Ethernet Controller I210-AT ×1, Intel® Q470E Express Chipset, Micro-ATX form factor (244 mm × 244 mm), Watchdog timer, i219, 1GbE RJ-45 x 1 |
