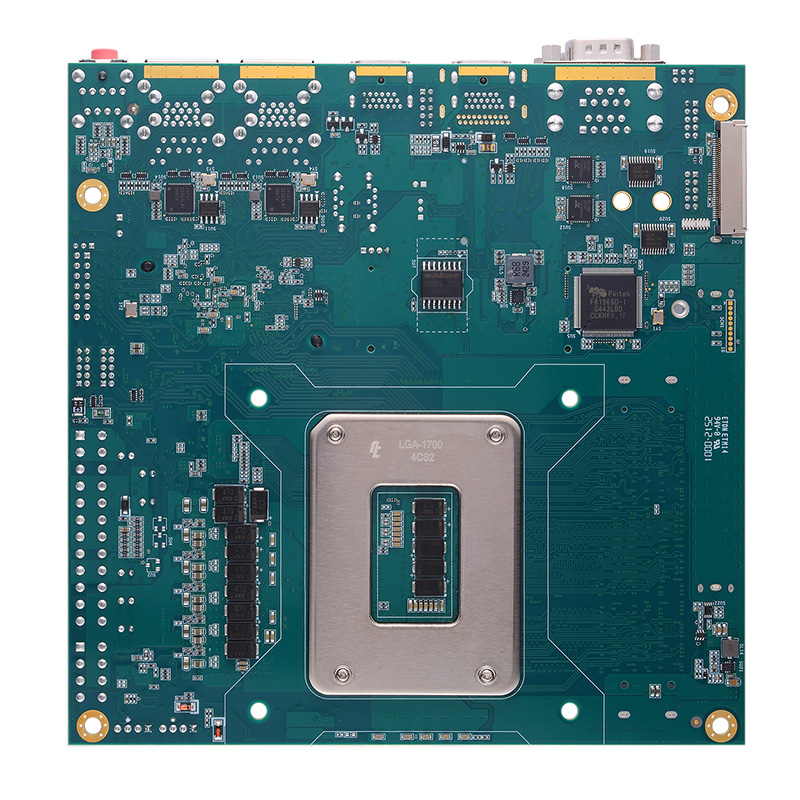

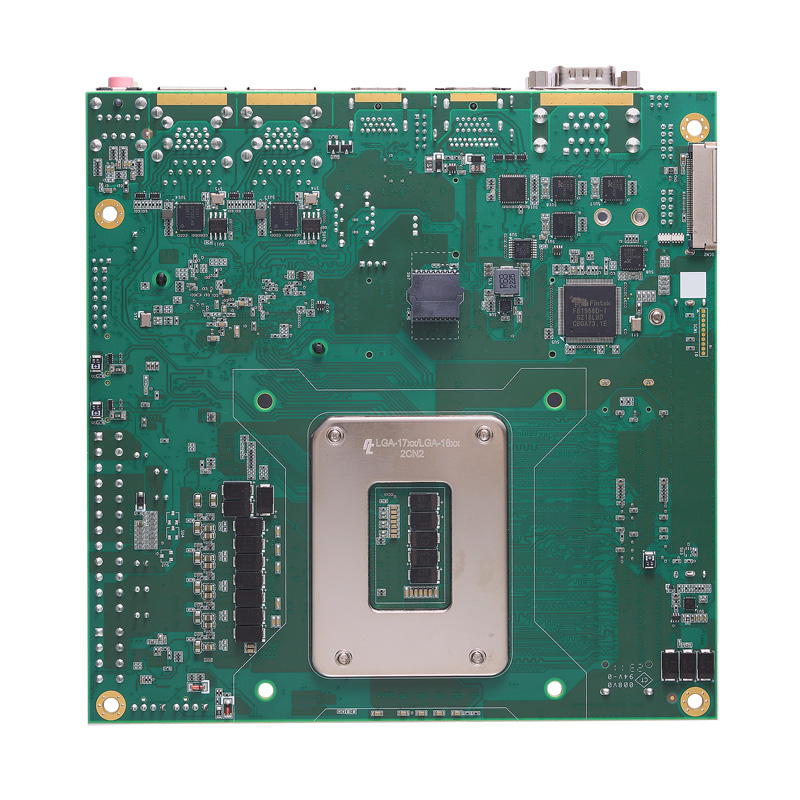

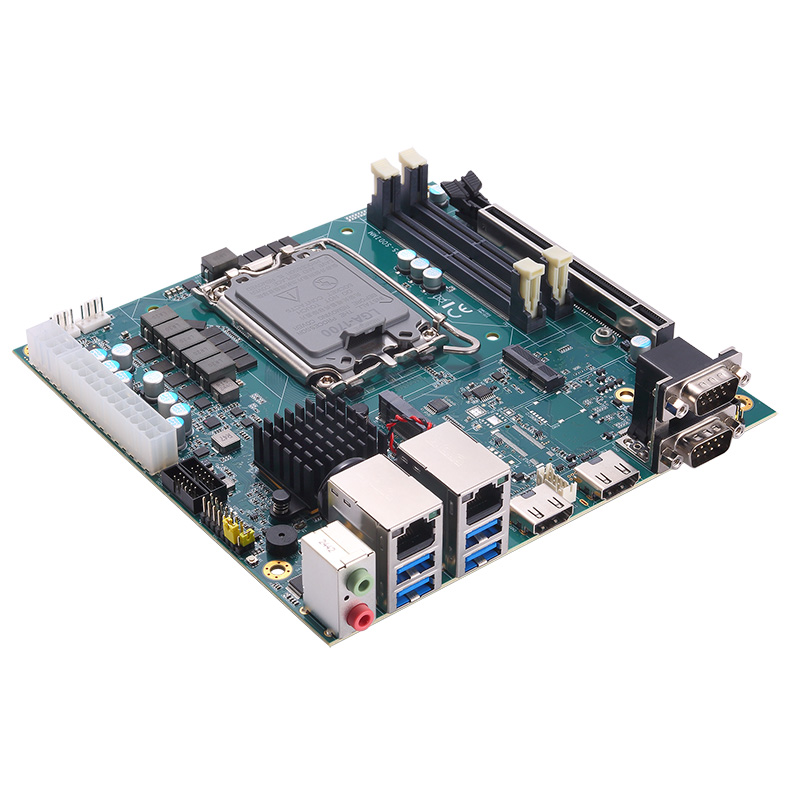

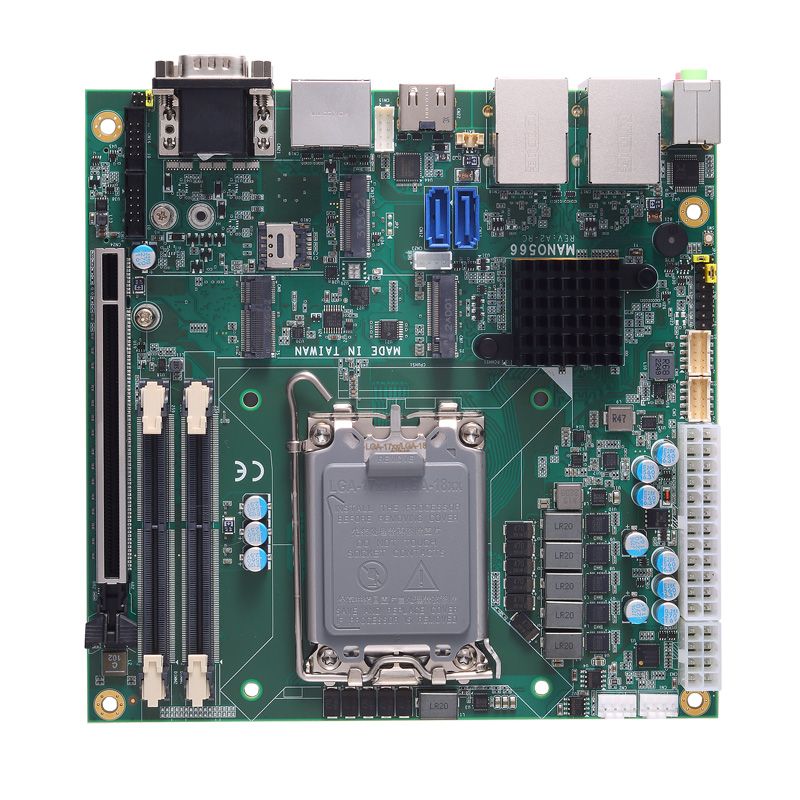

MANO566
Key features:
- LGA1700 socket 14th/13th/12th Gen
- Intel® Core™ i9/i7/i5/i3 processor Intel® Q670E/R680E/H610E/H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB or 2 DDR5 SO-DIMM for up to 96GB of memory
- 4 USB 3.2 and 4 USB 2.0
- 4 COM ports
- 2 SATA-600 and 1 M.2 Key M 2280
- 1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042
| Model | MANO566-Q670E-S | MANO566-H610E-S | MANO566-H610-S5 | MANO566-Q670E-S5 | MANO566-R680E-S5 |
| Processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® Q670E | Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, Intel® R680E |
| Memory | Intel® Q670E | Intel® H610E | Intel® H610, DDR5 | Intel® Q670E, DDR5 | Intel® R680E, DDR5 |
| Display | 2 HDMI, DisplayPort++, eDP | 2 HDMI, DisplayPort++, eDP | 2 HDMI, eDP | 2 HDMI, eDP | 2 HDMI, DisplayPort++ |
| LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN |
| Other | HD audio, and bulk packing | HD audio, and bulk packing | HD audio, fTPM, and bulk packing | HD audio, and bulk packing | HD audio, and bulk packing |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MANO566
Product information "MANO566"
Key features:
- LGA1700 socket 14th/13th/12th Gen
- Intel® Core™ i9/i7/i5/i3 processor Intel® Q670E/R680E/H610E/H610 chipset
- 2 DDR4 SO-DIMM for up to 64GB or 2 DDR5 SO-DIMM for up to 96GB of memory
- 4 USB 3.2 and 4 USB 2.0
- 4 COM ports
- 2 SATA-600 and 1 M.2 Key M 2280
- 1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042
| Model | MANO566-Q670E-S | MANO566-H610E-S | MANO566-H610-S5 | MANO566-Q670E-S5 | MANO566-R680E-S5 |
| Processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® Q670E | Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, Intel® R680E |
| Memory | Intel® Q670E | Intel® H610E | Intel® H610, DDR5 | Intel® Q670E, DDR5 | Intel® R680E, DDR5 |
| Display | 2 HDMI, DisplayPort++, eDP | 2 HDMI, DisplayPort++, eDP | 2 HDMI, eDP | 2 HDMI, eDP | 2 HDMI, DisplayPort++ |
| LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN | 2 GbE LAN |
| Other | HD audio, and bulk packing | HD audio, and bulk packing | HD audio, fTPM, and bulk packing | HD audio, and bulk packing | HD audio, and bulk packing |
| CPU: | 12th / 13th / 14th Generation Intel® Core™ i9 / i7 / i5 / i3 or Celeron® processor, 12th Generation, 13th Generation, 14th Generation, LGA1700 socket, Max. 65W TDP |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core™ (12th / 13th / 14th Gen) |
| Memory : | DDR4: 2 × 260-pin DDR4-3200 SO-DIMM, Max. 64 GB (PCB: V.A), DDR5: 2 × 262-pin DDR5-5600 SO-DIMM, Max. 96 GB (PCB: V.B) |
| Display : | Display Port, HDMI, eDP |
| Storage : | M.2 M-Key 2280 ×1, SATA-600 x2 |
| USB Ports: | USB2.0 x 4 (header), USB 3.2 Gen 1 ×4 |
| Expansion : | M.2 3042 B-Key x1, M.2 3052 B-key x 1 |
| Expansion : | M.2 2230 E-Key ×1, PCIe x16 (Gen5) ×1 |
| Power Requirement: | ATX 24-pin + ATX 12V connector |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2 × 10/100/1000/2500 Mbps with Intel® I226-LM (Q670E/R680E SKU of V.A & R680E SKU of V.B), 2 × 10/100/1000/2500 Mbps with Intel® I226-V (H610E SKU of V.A & Q670E/H610 SKUs of V.B), Audio: HD audio, Mic-in / Line-out with Realtek ALC888S, Board thickness: 1.6 mm, Chipsets supported: Intel® Q670E / R680E / H610E / H610, DDR4 version: 2 × RS-232/422/485 + 2 × RS-232/422/485 (internal), DDR5 version: 2 × RS-232/422/485 + 2 × RS-232 (internal), Digital I/O: 8-channel programmable I/O, Dimensions: 170 × 170 mm, Lithium battery: 220 mAh, TPM: Onboard TPM 2.0 or fTPM (availability depends on SKU / PCB version), Watchdog Timer: 255 levels (1–255 sec) |
