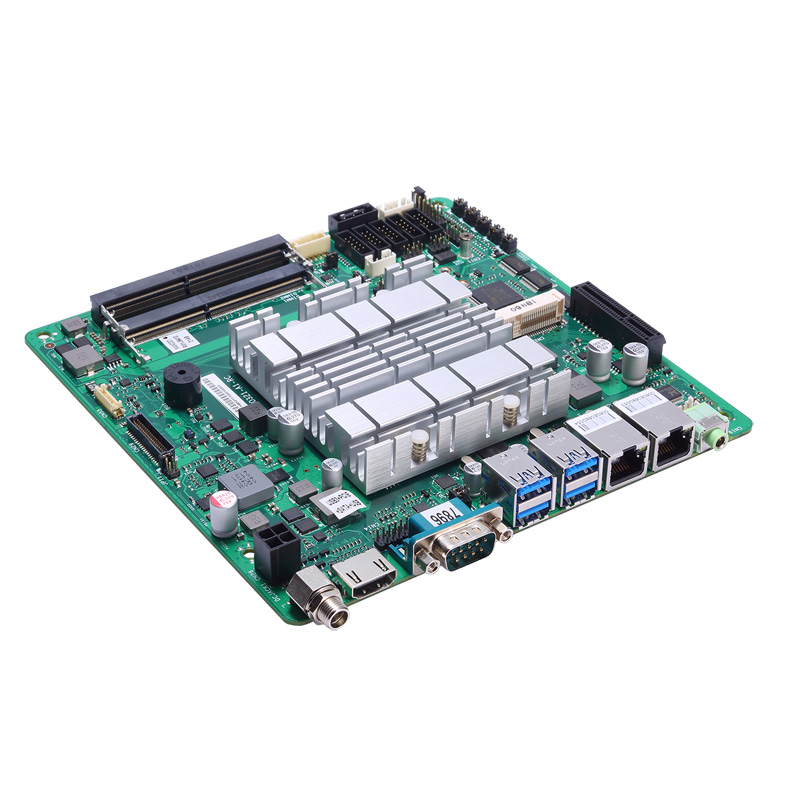

MANO321
Key features:
- Intel® Celeron® processor J6412 2
- DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCIe Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM
- Low profile
- 9 to 20 VDC power in
- HDMI, VGA, LVDS with triple view supported
| Model | MANO321-J-B-U | MANO321-J-S-U | MANO321-J-B-S | MANO321-J-S-S |
| Processor | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 |
| Expansion | USB 3.1, Mini PCIe, M.2 Key B for USB 3.1 | USB 3.1, Mini PCIe, M.2 Key B for USB 3.1 | USB 3.1, Mini PCIe, M.2 Key B for SATA | USB 3.1, Mini PCIe, M.2 Key B for SATA |
| Display | HDMI, VGA, LVDS | HDMI, VGA, LVDS | HDMI, VGA, LVDS | HDMI, VGA, LVDS |
| Other | HD audio, and bulk packing | HD audio, and single box packing | HD audio, and bulk packing | HD audio, and single box packing |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MANO321
Product information "MANO321"
Key features:
- Intel® Celeron® processor J6412 2
- DDR4 SO-DIMM for up to 32GB of memory
- 1 PCIe x2 for PCIe x4 expansion slot
- 1 PCIe Mini Card slot and PCIe x1
- 4 USB 3.1 and 4 USB 2.0
- 1 SATA-600 and 1 M.2 Key B
- Supports 6 COM
- Low profile
- 9 to 20 VDC power in
- HDMI, VGA, LVDS with triple view supported
| Model | MANO321-J-B-U | MANO321-J-S-U | MANO321-J-B-S | MANO321-J-S-S |
| Processor | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 | Thin Mini-ITX SBC with Intel® Celeron® processor J6412 |
| Expansion | USB 3.1, Mini PCIe, M.2 Key B for USB 3.1 | USB 3.1, Mini PCIe, M.2 Key B for USB 3.1 | USB 3.1, Mini PCIe, M.2 Key B for SATA | USB 3.1, Mini PCIe, M.2 Key B for SATA |
| Display | HDMI, VGA, LVDS | HDMI, VGA, LVDS | HDMI, VGA, LVDS | HDMI, VGA, LVDS |
| Other | HD audio, and bulk packing | HD audio, and single box packing | HD audio, and bulk packing | HD audio, and single box packing |
| CPU: | J6412 |
|---|---|
| Processor Family: | Intel® Celeron® (Elkhart Lake) |
| Memory : | 2 × DDR4 SO-DIMM Supported speeds: 3200 / 2666 / 2400 MHz Maximum capacity: 32 GB, DDR4 SODIMM x 2 |
| Display : | HDMI 1.4 ×1, LVDS, VGA |
| Storage : | 1 × M.2 Key B (2242 / 3042 / 3052), SATA (2242 SSD), SATA 6.0 Gb/s x 1, USB 3.1 (3042/3052 5G modules) |
| USB Ports: | USB2.0 x 4 (header), USB 3.1 x4 |
| Expansion : | 1 × M.2 Key B, 1 × PCIe x4 slot (PCIe x2 signal) |
| Expansion : | 1 × PCIe Mini Card slot (PCIe x1 & USB 2.0), 1 × SIM slot (for M.2 Key B) |
| Power Requirement: | 9–20 VDC input, DC jack or 4-pin ATX connector |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Digital I/O: 8-channel programmable I/O, Dual Intel® GbE LAN, RTL8111H |
