MINMAX Technology

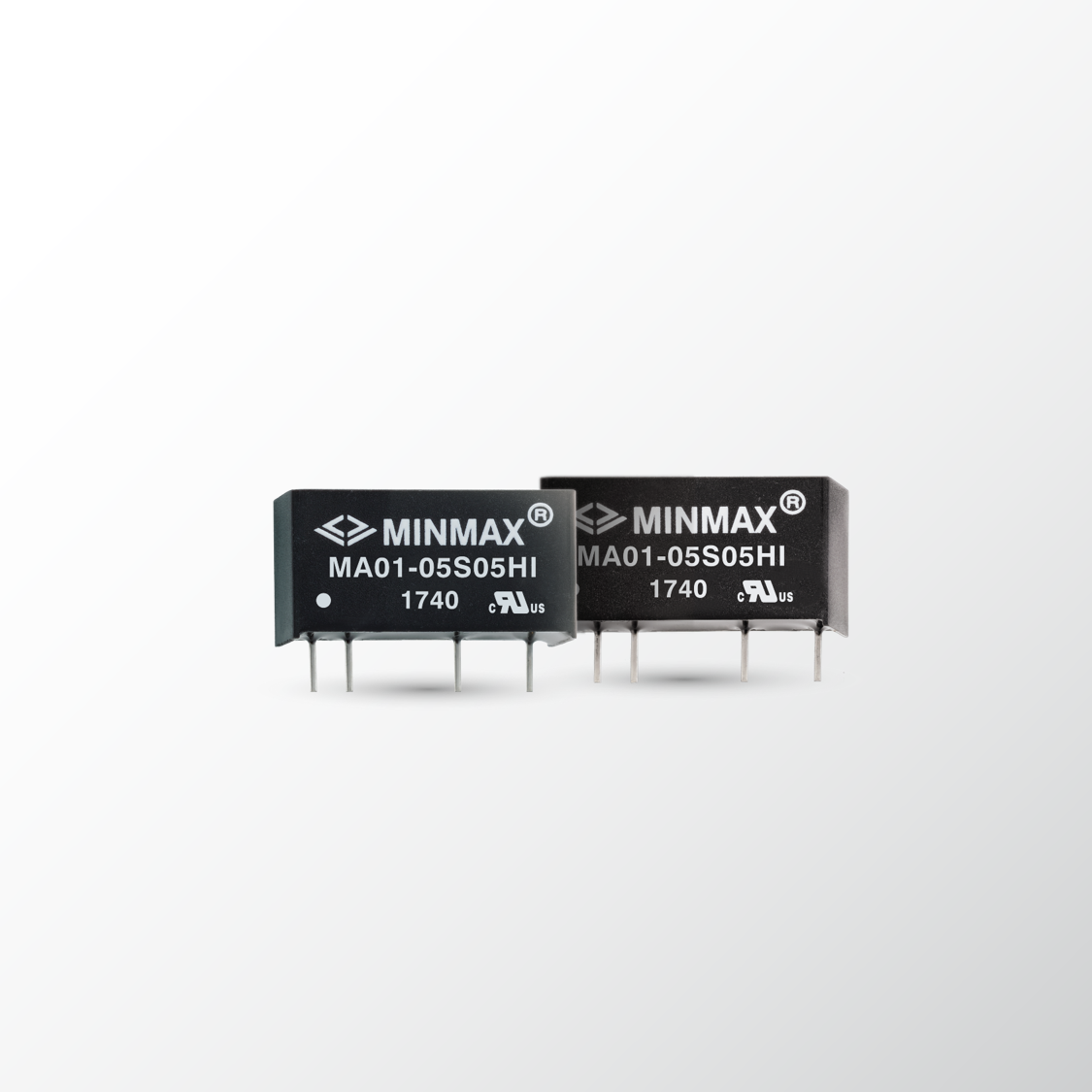

MA01-HI
MA01-HI
DC-DC Power Supply
1W Isolated Power Supply
Key Features:
- Unregulated Output Voltage
- Ultra-high I/O Isolation 5200VDC
- Short Circuit Protection
Approvals: EN62368-1, EN60950-1, RoHS
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MA01-HI
Product information "MA01-HI"
DC-DC Power Supply
1W Isolated Power Supply
Key Features:
- Unregulated Output Voltage
- Ultra-high I/O Isolation 5200VDC
- Short Circuit Protection
Approvals: EN62368-1, EN60950-1, RoHS
| Cooling Method: | Convection |
|---|---|
| Format: | PCB Mount |
| Input Voltage: | 5V, 12V, 15V, 24V |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +90 degC |
| Output Power: | 1W |
| Output Voltage: | 3.3, 5, 9, 12, 15, ±5, ±9, ±12, ±15, +15/-9V |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
