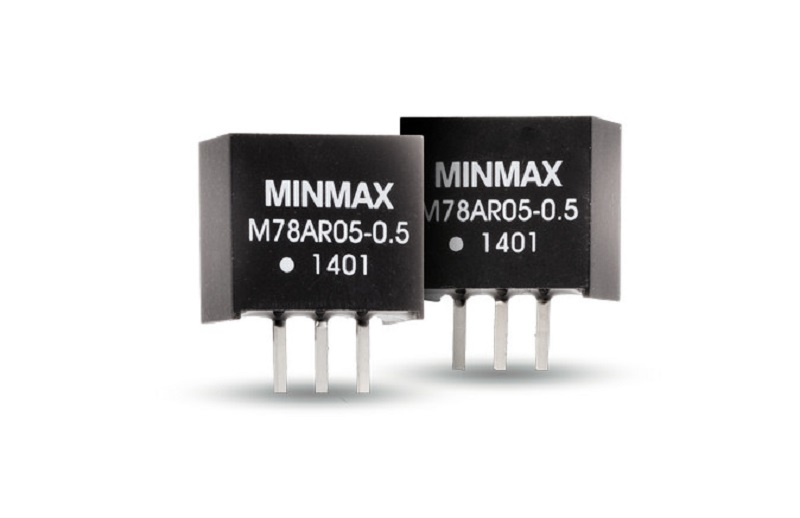

MINMAX Technology
M78AR-0.5
M78AR-0.5
DC-DC Power Supply
7.5W Isolated Power Supply
Key Features:
- Industrial Standard SIP-3 Package
- Pin-out compatible with LM78xx Linear Regulator
- Fully Regulated Output Voltage
- Low Ripple & Noise
- No Min. Load Requirement
- Over Temp. and Short Circuit Protection
Approvals: IEC 62321, RoHS
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
M78AR-0.5
Product information "M78AR-0.5"
DC-DC Power Supply
7.5W Isolated Power Supply
Key Features:
- Industrial Standard SIP-3 Package
- Pin-out compatible with LM78xx Linear Regulator
- Fully Regulated Output Voltage
- Low Ripple & Noise
- No Min. Load Requirement
- Over Temp. and Short Circuit Protection
Approvals: IEC 62321, RoHS
| Cooling Method: | Convection |
|---|---|
| Format: | PCB Mount |
| Input Voltage: | 4.75-32V |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +90 degC |
| Output Power: | 7.5W |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 6.5, 9, 12, 15V |
| Package: | Through Hole |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
