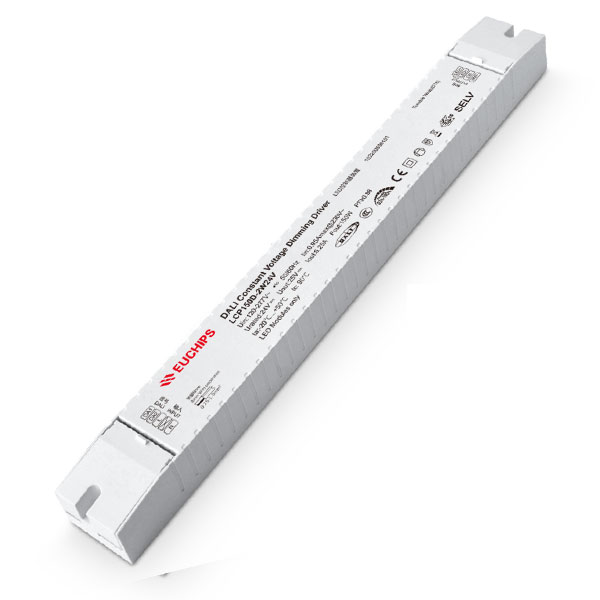

LCP150D-2W
LCP150D-2W12V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Key Features:
- 2 channels of constant voltage output, each carrying 12.5A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 12.5A
- Meet DALI Protocol IEC62386 DT8
- High input voltage of 120VAC ~ 277VAC
- Dimming effect smooth, no flicker
- Over load protection; short circuit protection
- IP20, suitable for indoor LED lighting application
| Model | LCP150D-2W12V | LCP150D-2W24V |
| Output Voltage | 12 Vdc | 24 Vdc |
| Output Current | 12.5 A | 6.25 A |
| Output Power | 150 W | 150 W |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
LCP150D-2W
Product information "LCP150D-2W"
LCP150D-2W12V is a constant voltage mode output LED driver. It supports DALI standard protocol and adjustment of brightness and colour temperature.
Key Features:
- 2 channels of constant voltage output, each carrying 12.5A ; separately ; When carrying multiple loads, the cumulative load shall not exceed 12.5A
- Meet DALI Protocol IEC62386 DT8
- High input voltage of 120VAC ~ 277VAC
- Dimming effect smooth, no flicker
- Over load protection; short circuit protection
- IP20, suitable for indoor LED lighting application
| Model | LCP150D-2W12V | LCP150D-2W24V |
| Output Voltage | 12 Vdc | 24 Vdc |
| Output Current | 12.5 A | 6.25 A |
| Output Power | 150 W | 150 W |
| Dimensions: | 360 x 40 x 32 mm |
|---|---|
| Dimming type: | DALI |
| Efficiency: | 90%, 92% |
| Output Current: | 6.25A, 12.5A |
| Output Power: | 150W |
| Output Voltage: | 12V, 24V |
| Operating Temperature: | -20 to +50 degC |
| Certifications: | IEC/EN 61347-1 |
