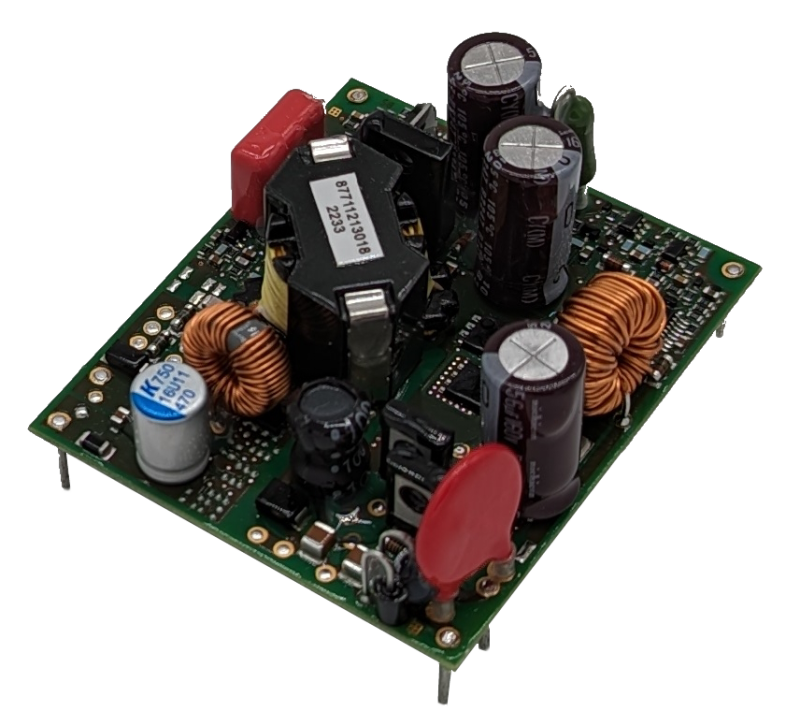

HPBC20W/O
HPBC20W/O
DC DC Converter
20W PCB Mount
- Isolated
- Boostertechnology
- Overtemperature shutdown
- Fixed switching frequency (120 kHz)
- According to Railway Standard EN 50155 and 50121-3-2 (EMC)
- Inrush current limiting
- Passive reverse polarity protection
- Output ripple: <2% pk-pk
- Ambient temperature: -40°C up to +85°C
- Hold up time >10 ms (Class S2)
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
HPBC20W/O
Product information "HPBC20W/O"
DC DC Converter
20W PCB Mount
- Isolated
- Boostertechnology
- Overtemperature shutdown
- Fixed switching frequency (120 kHz)
- According to Railway Standard EN 50155 and 50121-3-2 (EMC)
- Inrush current limiting
- Passive reverse polarity protection
- Output ripple: <2% pk-pk
- Ambient temperature: -40°C up to +85°C
- Hold up time >10 ms (Class S2)
| Cooling Method: | Convection |
|---|---|
| Format: | PCB Mount |
| Input Voltage: | 24, 36, 48, 72, 96, 110V |
| Market Sector: | Rail |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +85 degC |
| Output Power: | Up to 20W |
| Output Voltage: | 4.7, 5.1, 12, 24V |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
