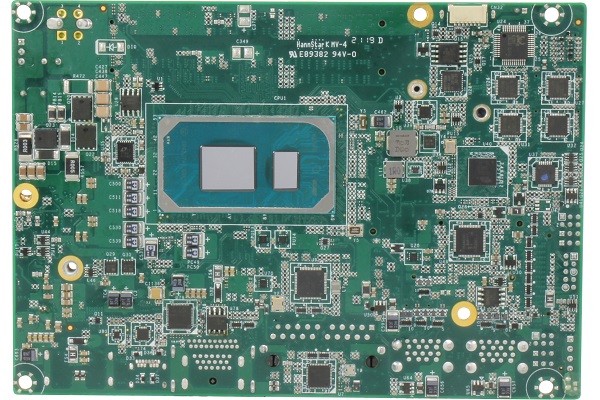

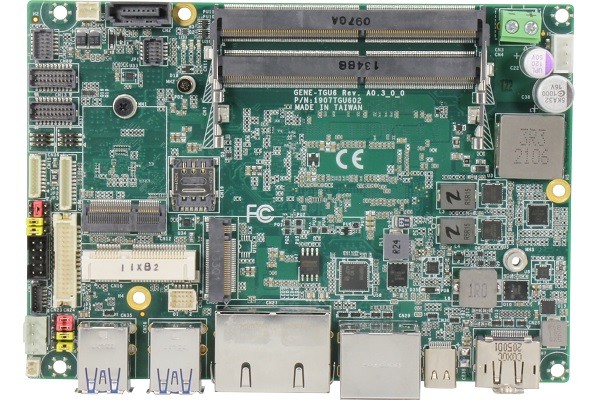

GENE-TGU6
3.5” SubCompact Board with 11th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Key features:
- DDR4 SODIMM Slot x 2, up to 64GB, support IBECC

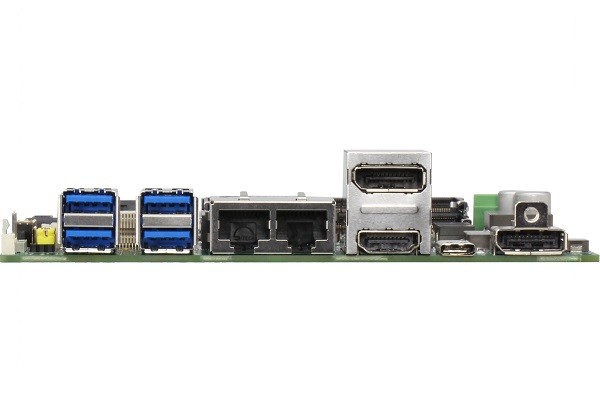

- HDMI 2.0 x 1, DP 1.4 x 2, Type-C DP x 1, LVDS/eDP x 1
- 2.5GbE x 1, GbE x 1
- USB 3.2 Gen 2 x 4, USB 2.0 x 2, USB Type-C x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1
- Wide DC Input 9~36V (Optional: 12V Only)
| PART NUMBER | GENE-TGU6-A10-0011 | GENE-TGU6-A10-0013 | GENE-TGU6-A10-0015 | GENE-TGU6W2-A10-0018 |
|---|---|---|---|---|
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i3-1115G4E | Intel® Core™ i7-1185GRE |
| DISPLAY | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 |
| RS-232 | — | — | — | — |
| RS-232/422/485 | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 |
| TPM | 2.0 | 2.0 | 2.0 | — |
| POWER | 9~36V | 9~36V | 9~36V | 12V |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | W2(-40°C ~85°C ) |
| OTHERS | Audio, DIO x 8, nano SIM, Touch Controller | Audio, DIO x 8, nano SIM, Touch Controller, | Audio, DIO x 8, nano SIM, Touch Controller | DIO x 8, nano SIM |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-TGU6
Product information "GENE-TGU6"
3.5” SubCompact Board with 11th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Key features:
- DDR4 SODIMM Slot x 2, up to 64GB, support IBECC
- HDMI 2.0 x 1, DP 1.4 x 2, Type-C DP x 1, LVDS/eDP x 1
- 2.5GbE x 1, GbE x 1
- USB 3.2 Gen 2 x 4, USB 2.0 x 2, USB Type-C x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1
- Wide DC Input 9~36V (Optional: 12V Only)
| PART NUMBER | GENE-TGU6-A10-0011 | GENE-TGU6-A10-0013 | GENE-TGU6-A10-0015 | GENE-TGU6W2-A10-0018 |
|---|---|---|---|---|
| CPU | Intel® Core™ i7-1185G7E | Intel® Core™ i5-1145G7E | Intel® Core™ i3-1115G4E | Intel® Core™ i7-1185GRE |
| DISPLAY | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 | DP x 2, Type-C DP x 1 HDMI x 1, LVDS x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 | USB 3.2 Gen 2 x 4 USB 3.2 Gen 2 (Type-C) x 1 USB 2.0 x 2 |
| RS-232 | — | — | — | — |
| RS-232/422/485 | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) | SATA x 1 mSATA x 1 (Full-size) |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 |
| TPM | 2.0 | 2.0 | 2.0 | — |
| POWER | 9~36V | 9~36V | 9~36V | 12V |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | W2(-40°C ~85°C ) |
| OTHERS | Audio, DIO x 8, nano SIM, Touch Controller | Audio, DIO x 8, nano SIM, Touch Controller, | Audio, DIO x 8, nano SIM, Touch Controller | DIO x 8, nano SIM |
| CPU: | 6305E, i3-1115G4E, i5-1145G7E, i7-1185G7E, i7-1185GRE |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core |
| Memory : | 64GB |
| Display : | Display Port, HDMI, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB 2.0 x2, USB 3.2 Gen2 x4, USB Type-C x1 |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1, mSATA / mPCIe |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226 |
