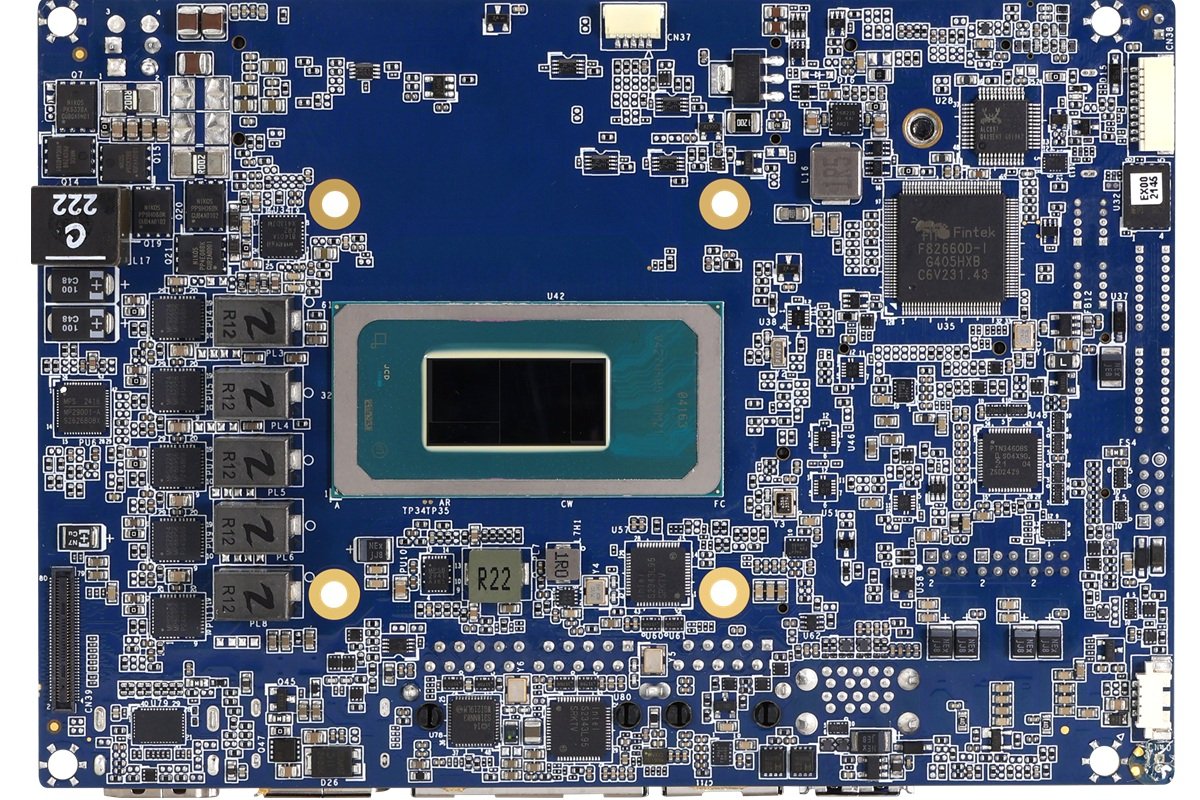

GENE-ARH6
3.5" SubCompact Board with Intel® Core™ Ultra SoC
- Intel® Core™ Ultra processors (Series 2)
- DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 96GB

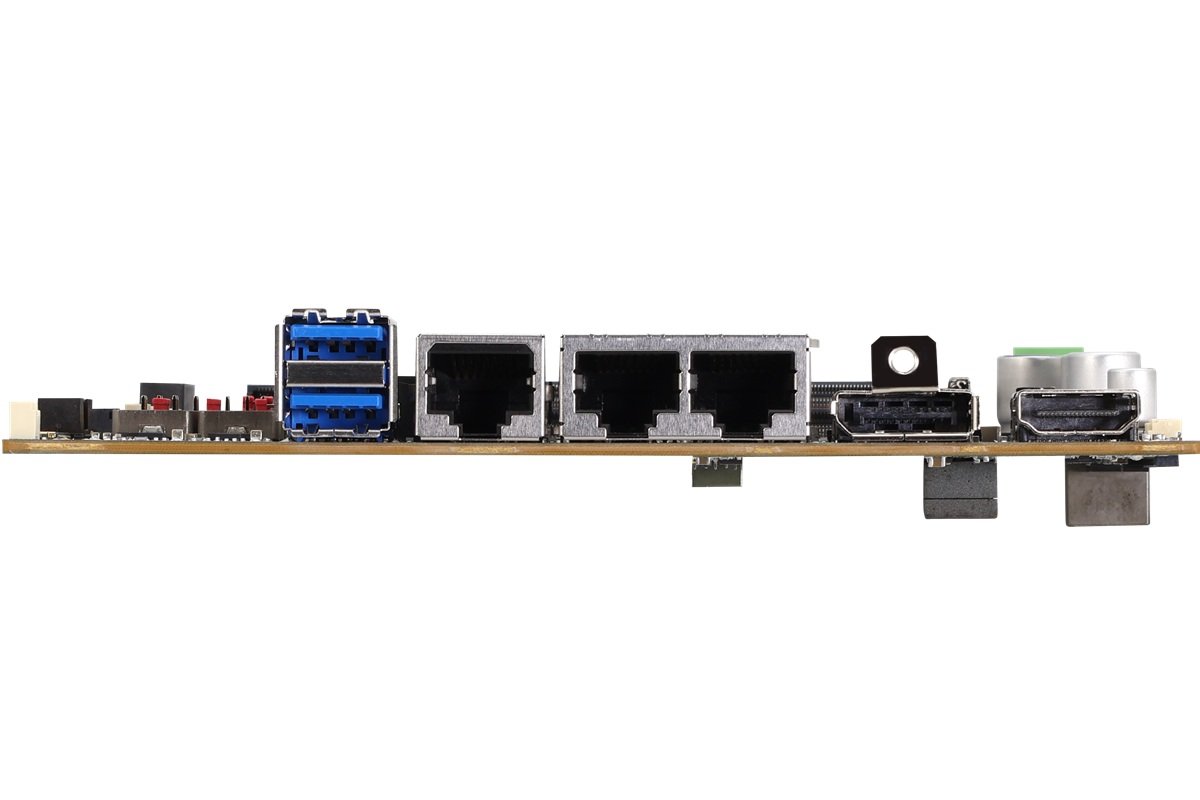

- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9 ~ 36V
| PART NUMBER | PICO-TGU4-A10-0003 | PICO-TGU4-A10-0004 | PICO-TGU4-A10-0005 | PICO-TGU4-A10-0006 | PICO-TGU4-A10-0007 | PICO-TGU4-A10-0008 | PICO-TGU4W1-A10-0005 |
|---|---|---|---|---|---|---|---|
| CPU | i3-1115G4E | i5-1145G7E | i7-1185G7E | i7-1185G7E | i7-1185G7E | i5-1145G7E | i7-1185G7E |
| MEMORY | 8G | 8G | 8G | 32G | 16G | 16G | 8G |
| DISPLAY | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 |
| LAN | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 |
| USB | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -20°C~70°C |
| AUDIO | — | — | — | — | — | — | — |
| OTHERS | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-ARH6
Product information "GENE-ARH6"
3.5" SubCompact Board with Intel® Core™ Ultra SoC
- Intel® Core™ Ultra processors (Series 2)
- DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 96GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9 ~ 36V
| PART NUMBER | PICO-TGU4-A10-0003 | PICO-TGU4-A10-0004 | PICO-TGU4-A10-0005 | PICO-TGU4-A10-0006 | PICO-TGU4-A10-0007 | PICO-TGU4-A10-0008 | PICO-TGU4W1-A10-0005 |
|---|---|---|---|---|---|---|---|
| CPU | i3-1115G4E | i5-1145G7E | i7-1185G7E | i7-1185G7E | i7-1185G7E | i5-1145G7E | i7-1185G7E |
| MEMORY | 8G | 8G | 8G | 32G | 16G | 16G | 8G |
| DISPLAY | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 |
| LAN | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 |
| USB | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -20°C~70°C |
| AUDIO | — | — | — | — | — | — | — |
| OTHERS | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 |
| CPU: | Intel® Core™ Ultra 5 Processor 225U, Ultra 5 Processor 225U, Ultra 7 Processor 255H -, Ultra 7 Processor 255U |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 2x 48GB |
| Display : | DP2.0, HDMI / LVDS / eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 2, i219, 1GbE RJ-45 x 1, i226 |
