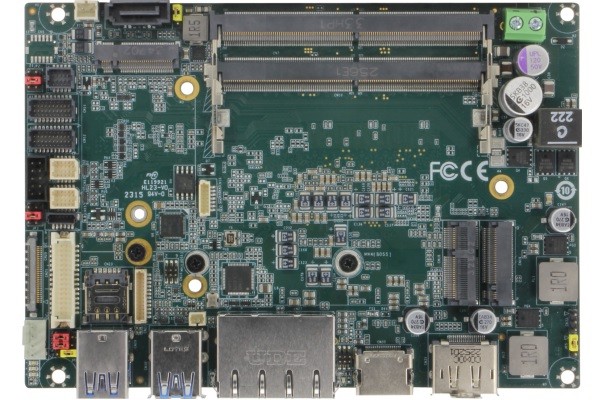

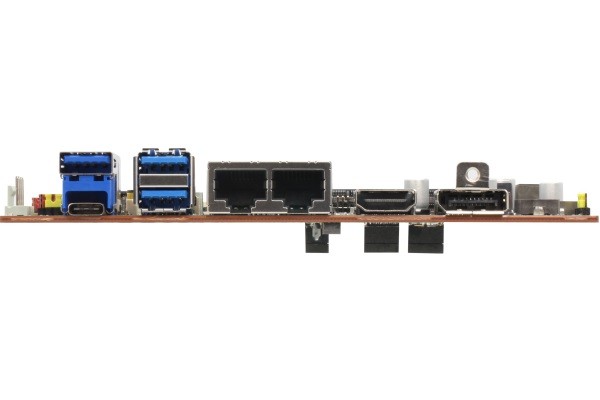

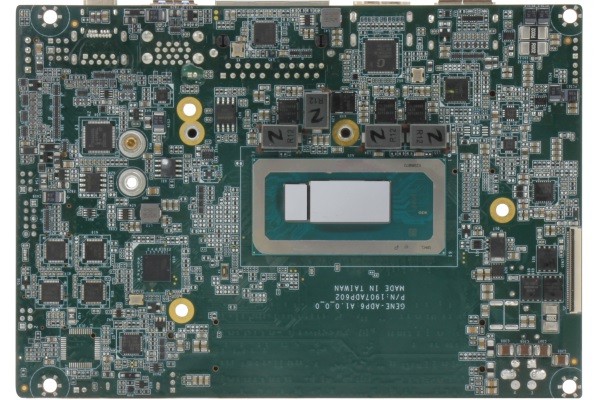

GENE-ADP6
3.5” SubCompact Board with 12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Key features:
- 12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
- DDR5 4800, Dual Channel SODIMM x 2, up to 64GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- 2.5GbE x 1, GbE x 1, SATA 6Gb/s x 1, GPIO 8-bit
- USB 3.2 Gen 2 x 3, USB 2.0 x 4, USB Type C x 1, RS-232/422/485 x 4
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3052/3042/2242 B-Key x 1
- Wide DC Input 9~36V
| PART NUMBER | GENE-ADP6-A10-0001 | GENE-ADP6-A10-0003 | GENE-ADP6-A10-0004 | GENE-ADP6-A10-0005 |
|---|---|---|---|---|
| CPU | Intel® Core™ i7-1270PE | Intel® Core™ i5-1250PE | Intel® Core™ i3-1220PE | Intel® Celeron® Processor 7305E |
| DISPLAY | HDMI x 1 DP++ x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 Type-c DP x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 |
| COM | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 | SATA x 1 | SATA x 1 | SATA x 1 |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 |
| TPM | 2.0 | 2.0 | 2.0 | — |
| POWER | 9~36V | 9~36V | 9~36V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-ADP6
Product information "GENE-ADP6"
3.5” SubCompact Board with 12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
Key features:
- 12th Generation Intel® Core™ i7/i5/i3/Celeron® Processor SoC
- DDR5 4800, Dual Channel SODIMM x 2, up to 64GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- 2.5GbE x 1, GbE x 1, SATA 6Gb/s x 1, GPIO 8-bit
- USB 3.2 Gen 2 x 3, USB 2.0 x 4, USB Type C x 1, RS-232/422/485 x 4
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3052/3042/2242 B-Key x 1
- Wide DC Input 9~36V
| PART NUMBER | GENE-ADP6-A10-0001 | GENE-ADP6-A10-0003 | GENE-ADP6-A10-0004 | GENE-ADP6-A10-0005 |
|---|---|---|---|---|
| CPU | Intel® Core™ i7-1270PE | Intel® Core™ i5-1250PE | Intel® Core™ i3-1220PE | Intel® Celeron® Processor 7305E |
| DISPLAY | HDMI x 1 DP++ x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 Type-c DP x 1 | HDMI x 1 DP x 1 LVDS x 1 Type-c DP x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 | USB 3.2 Gen 2 x 3 USB Type-C x 1 USB 2.0 x 4 |
| COM | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 | SATA x 1 | SATA x 1 | SATA x 1 |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 |
| TPM | 2.0 | 2.0 | 2.0 | — |
| POWER | 9~36V | 9~36V | 9~36V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS | Audio, Nano SIM, GPIO x 8, SMBUS |
| CPU: | 7305E, i3-1220PE, i5-1250PE, i7-1265UE, i7-1270PE |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core |
| Memory : | 64GB |
| Display : | Display Port, HDMI, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 Gen2 x3, USB Type-C x1 |
| Expansion : | M.2 2230 E-Key x 1, M.2 2242 B-Key x 1, M.2 2280 M-key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226 |
