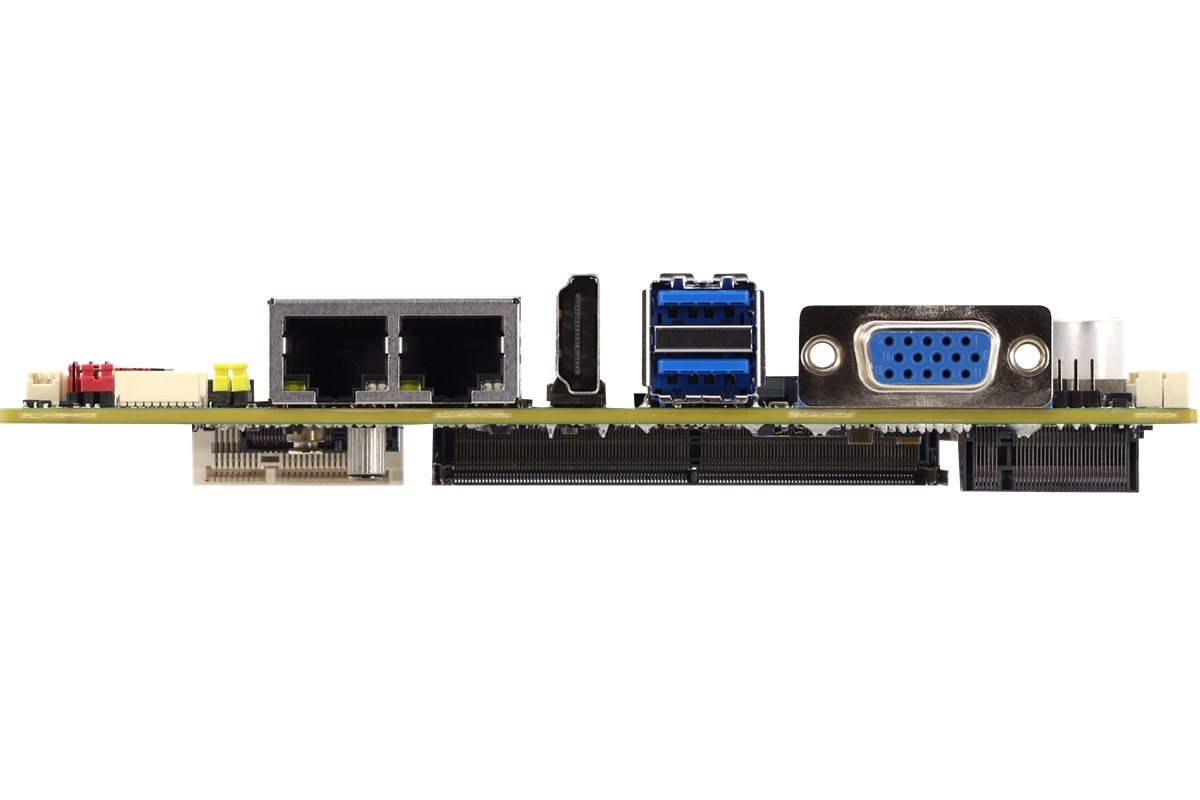

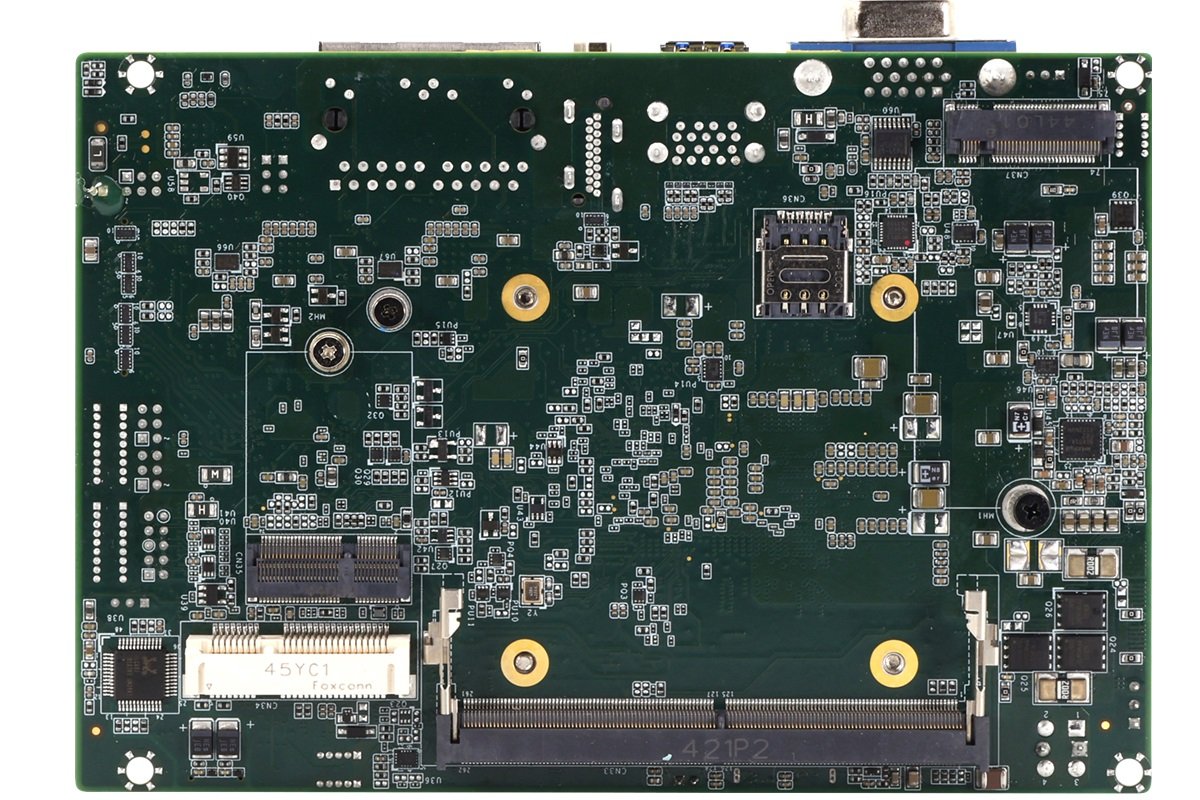

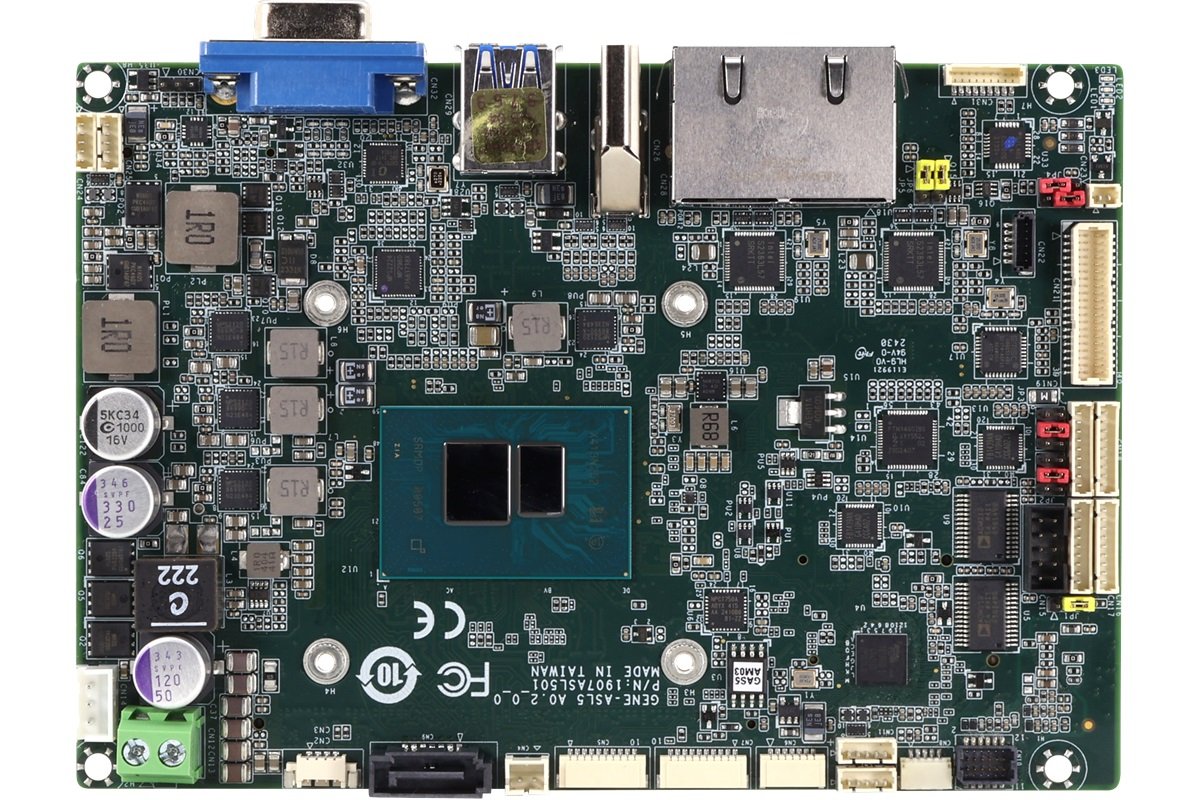

GENE-ADN5
3.5" SubCompact Board with Intel® Processor N Series
Key features:
- DDR5 4800 MHz, Dual Channel SODIMM x 1, Up to 16GB
- LVDS Dual Channel 18/24 bit x 1, VGA x 1, HDMI x 1
- Intel® 2.5GbE x 2 , SATA 6Gb/s x 1, GPIO x 8bit
- USB 3.2 Gen 2 x 2 port , USB 2.0 x 4
- Full size mPCIe/mSATA
- M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9-36V
| PART NUMBER | GENE-ADN5-A10-0001 | GENE-ADN5-A10-0002 |
|---|---|---|
| CPU | Intel® Processor N97 | Intel® Core™ i3-N305 |
| Display | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 |
| LAN | 2.5GbE x 2 | 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| Audio | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| COM | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 |
| TPM | 2.0 | 2.0 |
| Power | 9~36V | 9~36V |
| Temp | -20°C ~ 70°C | 0°C ~ 60°C |
| Others | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-ADN5
Product information "GENE-ADN5"
3.5" SubCompact Board with Intel® Processor N Series
Key features:
- DDR5 4800 MHz, Dual Channel SODIMM x 1, Up to 16GB
- LVDS Dual Channel 18/24 bit x 1, VGA x 1, HDMI x 1
- Intel® 2.5GbE x 2 , SATA 6Gb/s x 1, GPIO x 8bit
- USB 3.2 Gen 2 x 2 port , USB 2.0 x 4
- Full size mPCIe/mSATA
- M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9-36V
| PART NUMBER | GENE-ADN5-A10-0001 | GENE-ADN5-A10-0002 |
|---|---|---|
| CPU | Intel® Processor N97 | Intel® Core™ i3-N305 |
| Display | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 |
| LAN | 2.5GbE x 2 | 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| Audio | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| COM | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 |
| TPM | 2.0 | 2.0 |
| Power | 9~36V | 9~36V |
| Temp | -20°C ~ 70°C | 0°C ~ 60°C |
| Others | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS |
| CPU: | N97, i3-N305 |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 16GB |
| Display : | HDMI / LVDS / eDP / VGA |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 2, i226 |
