G156XW01V312

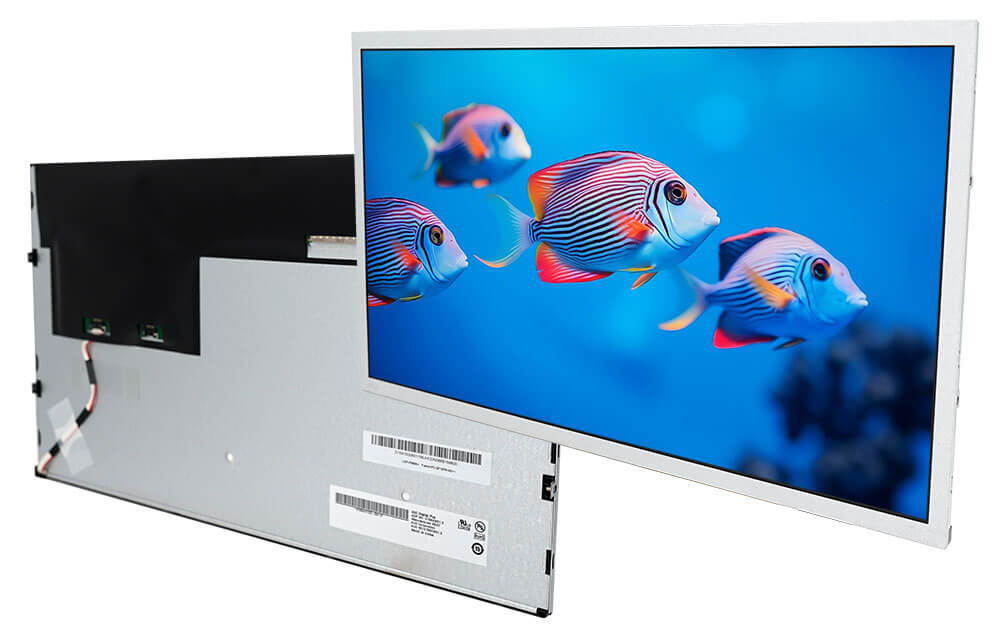

The AUO G156XW01 V3.1 is a 15.6-inch industrial TFT display offering WXGA resolution (1366 × 768) and brightness up to 500 cd/m² for clear, consistent image performance.
Based on TN technology, it provides reliable operation with wide viewing angles and a contrast ratio of around 500:1, supporting accurate visual output across industrial applications.
With a robust WLED backlight, integrated driver, and LVDS interface, the display is designed for straightforward integration into embedded systems. Its durable construction and operating temperature range of 0°C to +60°C make it suitable for industrial, HMI, and medical environments.
If you are interested in our product, you can contact us through our contact page.
The AUO G156XW01 V3.1 is a 15.6-inch industrial TFT display offering WXGA resolution (1366 × 768) and brightness up to 500 cd/m² for clear, consistent image performance.
Based on TN technology, it provides reliable operation with wide viewing angles and a contrast ratio of around 500:1, supporting accurate visual output across industrial applications.
With a robust WLED backlight, integrated driver, and LVDS interface, the display is designed for straightforward integration into embedded systems. Its durable construction and operating temperature range of 0°C to +60°C make it suitable for industrial, HMI, and medical environments.
| Backlight: | LED |
|---|---|
| Converter: | Integrated |
| Dimensions: | 363.8 x 215.9 x 9.3 mm |
| Format: | 16:9 |
| Operating Temp Range: | 0 ~ 60℃ |
| Screen Diagonal: | 15.6" |
| Series: | Standard displays, TFT Displays |
| Storage temperature range: | -20°C to +60°C |
| Technology: | TFT |
| Touch Points: | Optional |
| Brightness: | 500cd/m2 |
| Resolution: | 1366x768 |
| Viewing Angle: | 80°/80°/85°/85° |
