G084SAN01.0

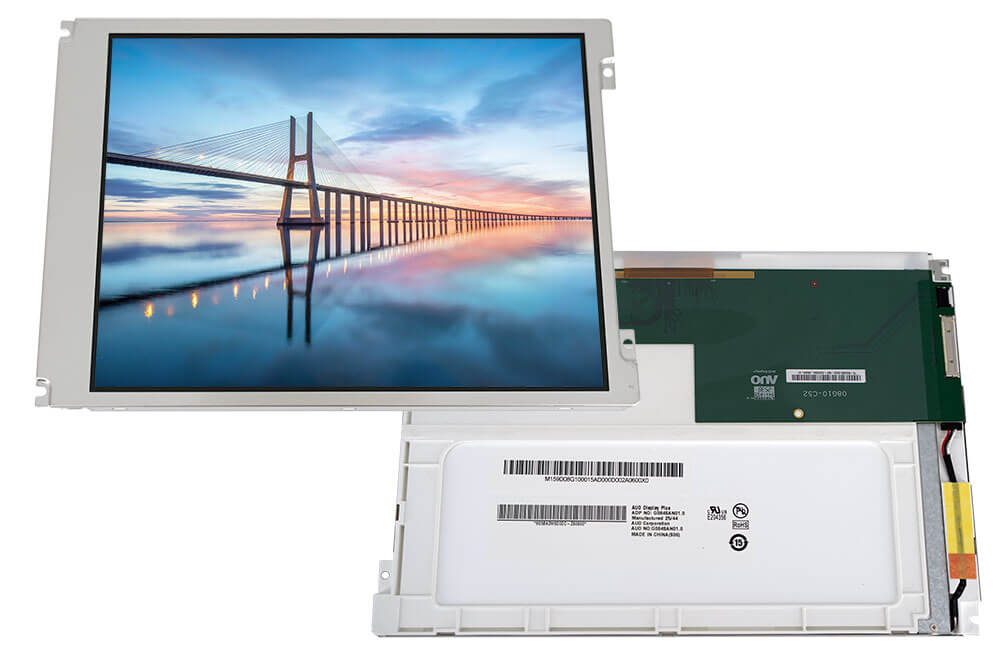

AUO's 8.4" TFT display G084SAN01.0 has a very wide temperature range and includes the LED backlight driving board.
Read More
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
UP-02-285
Product information "G084SAN01.0"
AUO's 8.4" TFT display G084SAN01.0 has a very wide temperature range and includes the LED backlight driving board.
| Backlight: | LED |
|---|---|
| Converter: | Integrated |
| Dimensions: | 203.0 x 142.5 x 8.0 mm |
| Format: | 4:3 |
| Screen Diagonal: | 8.4" |
| Series: | Standard displays, TFT Displays |
| Storage temperature range: | -30°C to +80°C |
| Technology: | TFT |
| Touch Points: | Optional |
| Brightness: | 450cd/m2 |
| Resolution: | 800x600 |
| Viewing Angle: | 89°/89°/89°/89° |
| Interface: | LVDS |
| Ratio: | 1000:1 |
| Operating Temperature: | -30 to +80 degC |
