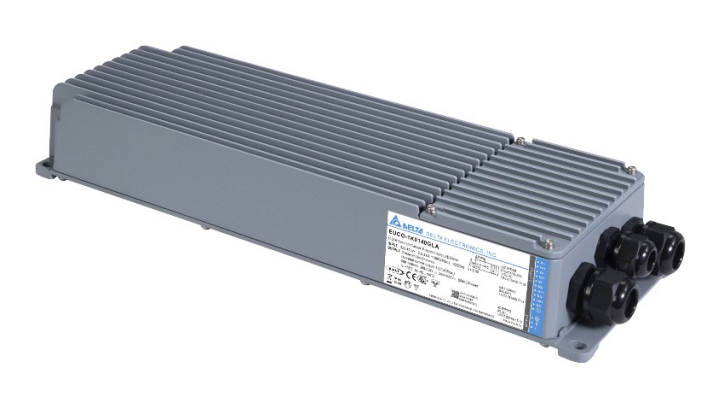

The Delta EUCO ARENA SPORT series features constant current non-isolated LED drivers with DALI 2 / RDM / DMX control functions. They support a wide input voltage range of 220~400Vac, making them compatible with various EU indoor and outdoor applications. These drivers are equipped with IP66 protection and can operate reliably in harsh conditions with a wide temperature range from -40°C to +50°C. The driver's remarkably low output current ripple makes it an excellent choice for outdoor stadium lighting.
Key Features:
- Dimmable built-in constant current 2-channel LED Driver with DALI 2 or DMX / RDM control interface
- Each channel independently programmable with output channels max output power of 700W (2100W total)
- Adjustable output current between 700mA to 2000 mA for each channel via I-programming tool
- Very low pk–pk current ripple to 1% for stadium lighting
- Dimming range 0.1% to 100 %
- Max remote distance 200 meters
- In compliance with Erp (EU) 2019/2020
If you are interested in our product, you can contact us through our contact page.
The Delta EUCO ARENA SPORT series features constant current non-isolated LED drivers with DALI 2 / RDM / DMX control functions. They support a wide input voltage range of 220~400Vac, making them compatible with various EU indoor and outdoor applications. These drivers are equipped with IP66 protection and can operate reliably in harsh conditions with a wide temperature range from -40°C to +50°C. The driver's remarkably low output current ripple makes it an excellent choice for outdoor stadium lighting.
Key Features:
- Dimmable built-in constant current 2-channel LED Driver with DALI 2 or DMX / RDM control interface
- Each channel independently programmable with output channels max output power of 700W (2100W total)
- Adjustable output current between 700mA to 2000 mA for each channel via I-programming tool
- Very low pk–pk current ripple to 1% for stadium lighting
- Dimming range 0.1% to 100 %
- Max remote distance 200 meters
- In compliance with Erp (EU) 2019/2020
| Format: | Wall Mount |
|---|---|
| No. of Outputs: | Triple |
| Operating Temp Range: | -40°C to 50°C |
| Output Power: | Up to 2100W |
| Power Format: | Wall Mount |
| Power Type: | AC-DC |
