AAEON

EPIC-TGH7

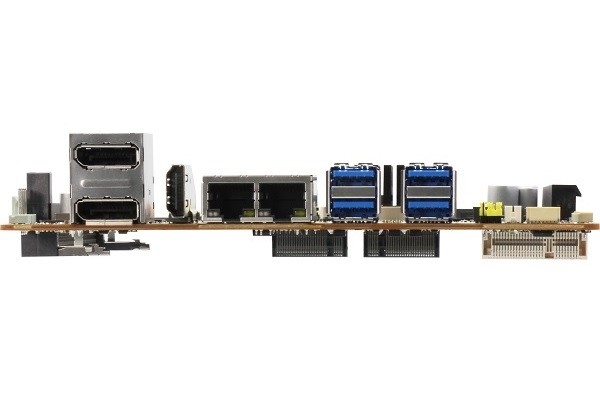

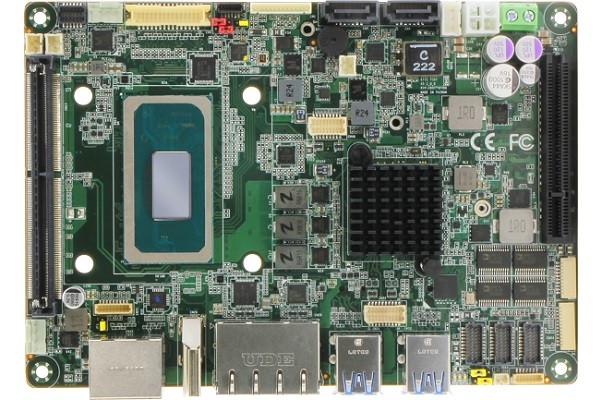

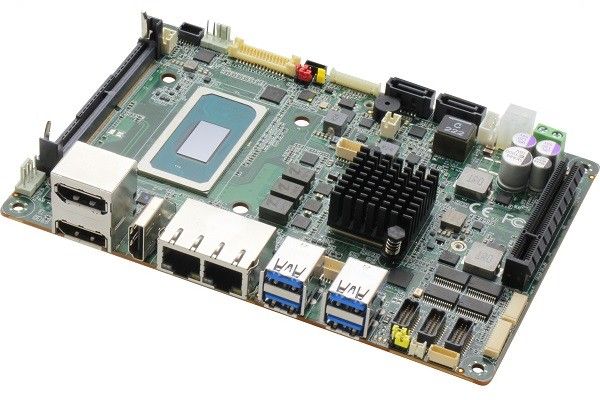

EPIC-TGH7 Single Board Computer with 11th Generation Intel® Core™/Xeon® Processors

Key Features

Onboard 11th Gen Intel® Core™/Xeon® Processors
DDR4 3200 SODIMM x 2, up to 64GB
Dual LAN (2.5GbE + GbE)
HDMI 2.0b, DP++, LVDS/eDP, VGA
8 x USB, 6 x COM, 16-bit GPIO
SATA 6Gb/s x 2, M.2 and Mini Card expansion
PCIe Gen 4 x8 slot
Wide voltage input: +9V to +24V

PART NUMBER	EPIC-TGH7-A11-0001	EPIC-TGH7-A11-0002	EPIC-TGH7-A11-0003	EPIC-TGH7W2-A11-0001
CPU	W-11865MRE (with RM590E)	i7-11850HE (with HM570E)	i5-11500HE (with HM570E)	W-11865MRE (with RM590)
MEMORY	DDR4 SODIMM x 2	DDR4 SODIMM x 2	DDR4 SODIMM x 2	DDR4 SODIMM x 2
DISPLAY	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2, HDMI x 1, VGA x 1
STORAGE	SATA 6Gb/s x 2	SATA 6Gb/s x 2	SATA 6Gb/s x 2	SATA 6Gb/s x 2
LAN	2.5GbE x 1 GbE x 1	2.5GbE x 1 GbE x 1	2.5GbE x 1 GbE x 1	2.5GbE x 1, GbE x 1
USB	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 , USB 2.0 x 4
COM PORT	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2, RS232 x 4
EXPANSION	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 , M.2 2280 M-key x 1 , Mini Card (Half Size) x 1 , FPC Connector x 1
TPM	Optional	Optional	Optional	2.0
POWER	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)
OPERATING TEMPERATURE	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C	-40°C ~ 85°C
OTHERS	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits, Nano SIM x 1, Touch x 1

If you are interested in our product, you can contact us through our contact page.

SKU: EPIC-TGH7

EPIC-TGH7.pdf

Product information "EPIC-TGH7"

EPIC-TGH7 Single Board Computer with 11th Generation Intel® Core™/Xeon® Processors

Key Features

Onboard 11th Gen Intel® Core™/Xeon® Processors
DDR4 3200 SODIMM x 2, up to 64GB
Dual LAN (2.5GbE + GbE)
HDMI 2.0b, DP++, LVDS/eDP, VGA
8 x USB, 6 x COM, 16-bit GPIO
SATA 6Gb/s x 2, M.2 and Mini Card expansion
PCIe Gen 4 x8 slot
Wide voltage input: +9V to +24V

PART NUMBER	EPIC-TGH7-A11-0001	EPIC-TGH7-A11-0002	EPIC-TGH7-A11-0003	EPIC-TGH7W2-A11-0001
CPU	W-11865MRE (with RM590E)	i7-11850HE (with HM570E)	i5-11500HE (with HM570E)	W-11865MRE (with RM590)
MEMORY	DDR4 SODIMM x 2	DDR4 SODIMM x 2	DDR4 SODIMM x 2	DDR4 SODIMM x 2
DISPLAY	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2 HDMI x 1, VGA x 1	LVDS x 1, DP x 2, HDMI x 1, VGA x 1
STORAGE	SATA 6Gb/s x 2	SATA 6Gb/s x 2	SATA 6Gb/s x 2	SATA 6Gb/s x 2
LAN	2.5GbE x 1 GbE x 1	2.5GbE x 1 GbE x 1	2.5GbE x 1 GbE x 1	2.5GbE x 1, GbE x 1
USB	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 USB 2.0 x 4	USB 3.2 Gen 2 x 4 , USB 2.0 x 4
COM PORT	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2 RS232 x 4	RS232/422/485 x 2, RS232 x 4
EXPANSION	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 M.2 2280 M-key x 1 Mini Card (Half Size) x 1 FPC Connector x 1	M.2 3052 B-key x 1 , M.2 2280 M-key x 1 , Mini Card (Half Size) x 1 , FPC Connector x 1
TPM	Optional	Optional	Optional	2.0
POWER	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)	+9V to +24Vin (2 Pin Phoenix Connector + 4 Pin ATX Connector)
OPERATING TEMPERATURE	0°C ~ 60°C	0°C ~ 60°C	0°C ~ 60°C	-40°C ~ 85°C
OTHERS	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits Nano SIM x 1 Touch x 1	GPIO 16 bits, Nano SIM x 1, Touch x 1

CPU:	6600HE, W-11865MRE (with RM590E), i3-11100HE (with HM570E), i5-11500HE (with HM570E), i7-11850HE (with HM570E)
Processor Family:	Intel® Core, Intel® Xeon
Memory :	64GB
Display :	HDMI / Display Port / VGA / LVDS / eDP
Storage :	SATA III x2
USB Ports:	USB2.0 x 4 (header), USB 3.2 Gen2 x4
Expansion :	FPC Connector x 1, M.2 2280 M-key x 1, M.2 3052 B-key x 1, PCle 4.0 [x8] Slot x 1, mSATA / mPCIe
Power Requirement:	12v
Operating Temperature:	0 to +60 degC
Ethernet Technical Data:	2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226
