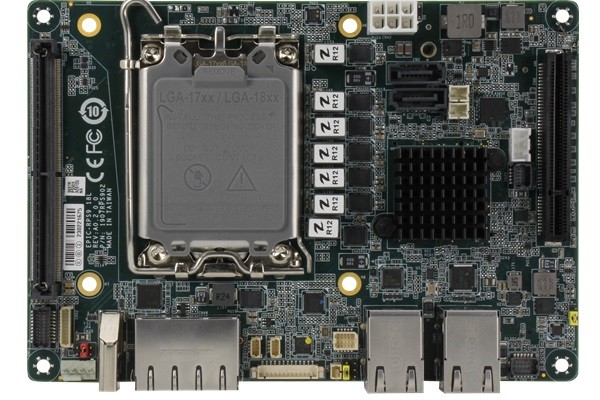

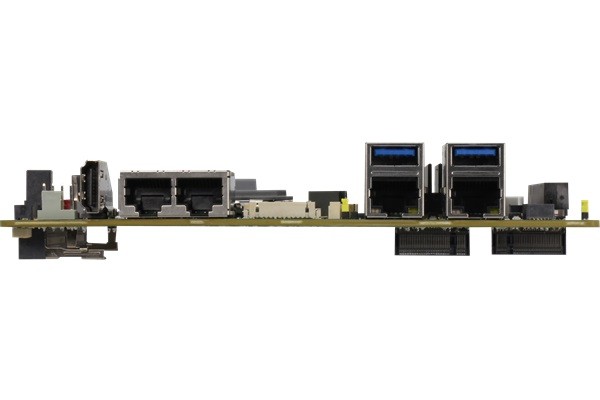

EPIC-RPS9
EPIC Board with 12th/13th Generation Intel® Core™ Processor
Key features:
- 12th/13th Generation Intel® Core™ Processor
- DDR5 SODIMM 4800 x 2, up to 64 GB
- Triple Display: HDMI 2.0 x 1, eDP x 1, VGA x 1
- Intel® I226-LM 2.5GbE x 3, Intel® I219-LM GbE x 1
- USB 3.2 Gen 2 x 2 (Rear I/O), USB 2.0 x 2 (Pin Header)
- M.2 2280 M-key x 1 , M.2 3052 B-key x 1 , M.2 2230 E-key x 1 , FPC (PCIe3.0/[x2/] x 1), PCIe4.0/[x8/] x 1
- COM Port x 2, GPIO 8-bit, DC 12V in
| PART NUMBER | EPIC-RPS9-A10-0001 | EPIC-RPS9-A10-0002 | EPIC-RPS9-A10-0003 |
|---|---|---|---|
| CPU | LGA1700 Socket Type (with R680E) | LGA1700 Socket Type (with Q670E) | LGA1700 Socket Type (with H610E) |
| MEMORY | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 (Non-ECC) | DDR5 SODIMM x 2 (Non-ECC) |
| DISPLAY | eDP x 1, HDMI x 1, VGA x 1 | eDP x 1, HDMI x 1, VGA x 1 | eDP x 1, HDMI x 1, VGA x 1 |
| STORAGE | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 |
| LAN | 2.5GbE x 3 , GbE x 1 | 2.5GbE x 3 , GbE x 1 | 2.5GbE x 1 , GbE x 1 |
| USB | USB3.2 Gen2 x 2 ,USB2.0 x 2 | USB3.2 Gen2 x 2 ,USB2.0 x 2 | USB3.2 Gen2 x 2 ,USB2.0 x 2 |
| COM PORT | RS232/422/485 x 2 | RS232/422/485 x 2 | RS232/422/485 x 2 |
| EXPANSION | M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 | M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 | M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 |
| TPM | Optional | Optional | Optional |
| POWER | +12Vin (3x2 ATX Connector) | +12Vin (3x2 ATX Connector) | +12Vin (3x2 ATX Connector) |
| OPERATINGTEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | GPIO 8 bits, Nano SIM x 1, TCC x 1 | GPIO 8 bits, Nano SIM x 1 | GPIO 8 bits, Nano SIM x 1 |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
EPIC-RPS9
Product information "EPIC-RPS9"
EPIC Board with 12th/13th Generation Intel® Core™ Processor
Key features:
- 12th/13th Generation Intel® Core™ Processor
- DDR5 SODIMM 4800 x 2, up to 64 GB
- Triple Display: HDMI 2.0 x 1, eDP x 1, VGA x 1
- Intel® I226-LM 2.5GbE x 3, Intel® I219-LM GbE x 1
- USB 3.2 Gen 2 x 2 (Rear I/O), USB 2.0 x 2 (Pin Header)
- M.2 2280 M-key x 1 , M.2 3052 B-key x 1 , M.2 2230 E-key x 1 , FPC (PCIe3.0/[x2/] x 1), PCIe4.0/[x8/] x 1
- COM Port x 2, GPIO 8-bit, DC 12V in
| PART NUMBER | EPIC-RPS9-A10-0001 | EPIC-RPS9-A10-0002 | EPIC-RPS9-A10-0003 |
|---|---|---|---|
| CPU | LGA1700 Socket Type (with R680E) | LGA1700 Socket Type (with Q670E) | LGA1700 Socket Type (with H610E) |
| MEMORY | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 (Non-ECC) | DDR5 SODIMM x 2 (Non-ECC) |
| DISPLAY | eDP x 1, HDMI x 1, VGA x 1 | eDP x 1, HDMI x 1, VGA x 1 | eDP x 1, HDMI x 1, VGA x 1 |
| STORAGE | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 |
| LAN | 2.5GbE x 3 , GbE x 1 | 2.5GbE x 3 , GbE x 1 | 2.5GbE x 1 , GbE x 1 |
| USB | USB3.2 Gen2 x 2 ,USB2.0 x 2 | USB3.2 Gen2 x 2 ,USB2.0 x 2 | USB3.2 Gen2 x 2 ,USB2.0 x 2 |
| COM PORT | RS232/422/485 x 2 | RS232/422/485 x 2 | RS232/422/485 x 2 |
| EXPANSION | M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 | M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 | M.2 3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, FPC x 1 |
| TPM | Optional | Optional | Optional |
| POWER | +12Vin (3x2 ATX Connector) | +12Vin (3x2 ATX Connector) | +12Vin (3x2 ATX Connector) |
| OPERATINGTEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | GPIO 8 bits, Nano SIM x 1, TCC x 1 | GPIO 8 bits, Nano SIM x 1 | GPIO 8 bits, Nano SIM x 1 |
| CPU: | 12th Generation, 13th Generation |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 64GB |
| Display : | HDMI, VGA, eDP |
| Storage : | SATA III x2 |
| USB Ports: | USB 2.0 x2, USB3.2 GEN2 x 2 (Rear) |
| Expansion : | FPC Connector x 1, M.2 2230 E-Key x 1, M.2 2280 M-key x 1, M.2 3052 B-key x 1, PCle 4.0 [x8] Slot x 1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 3, i219, 1GbE RJ-45 x 1, i226 |
