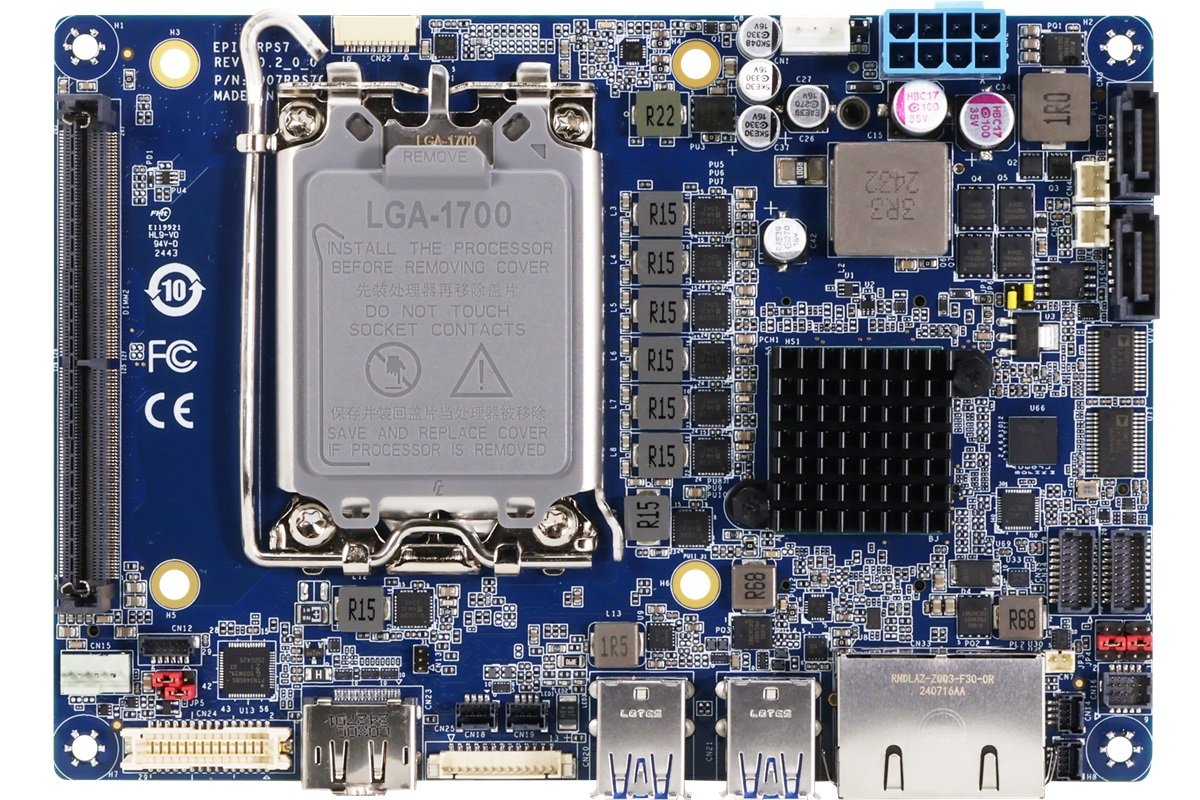

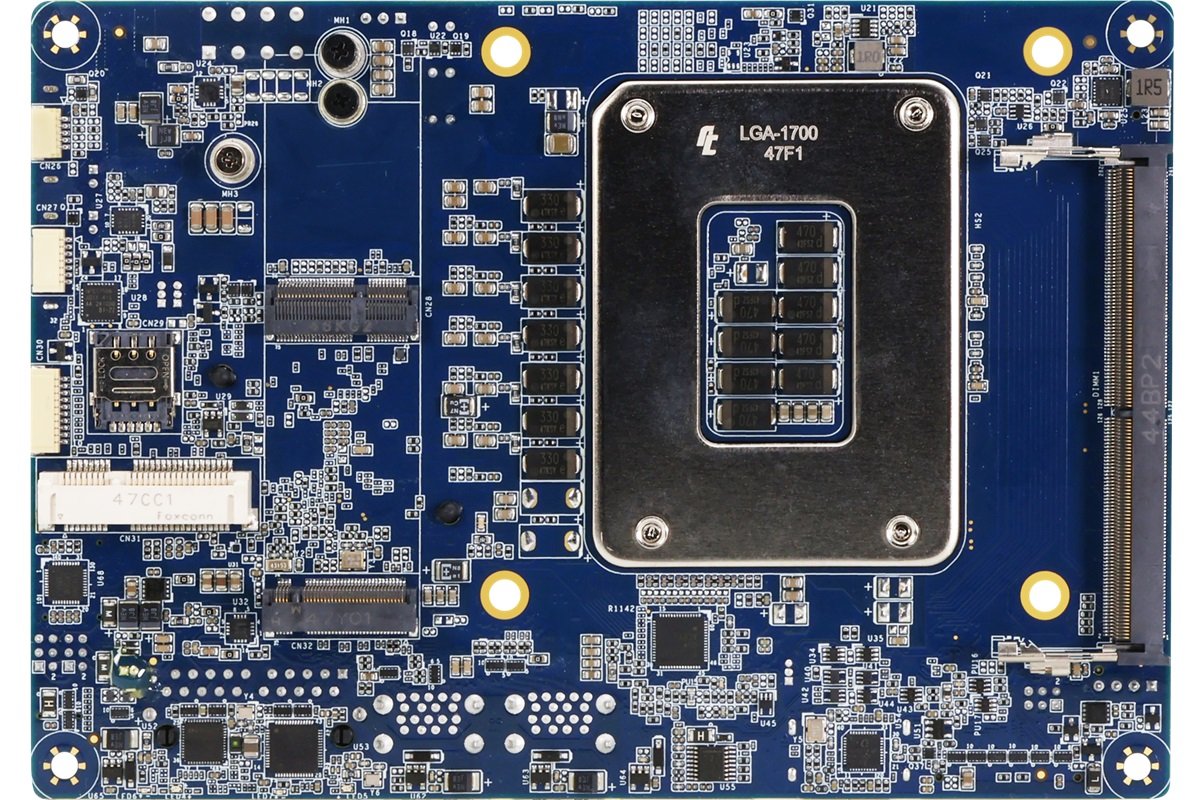

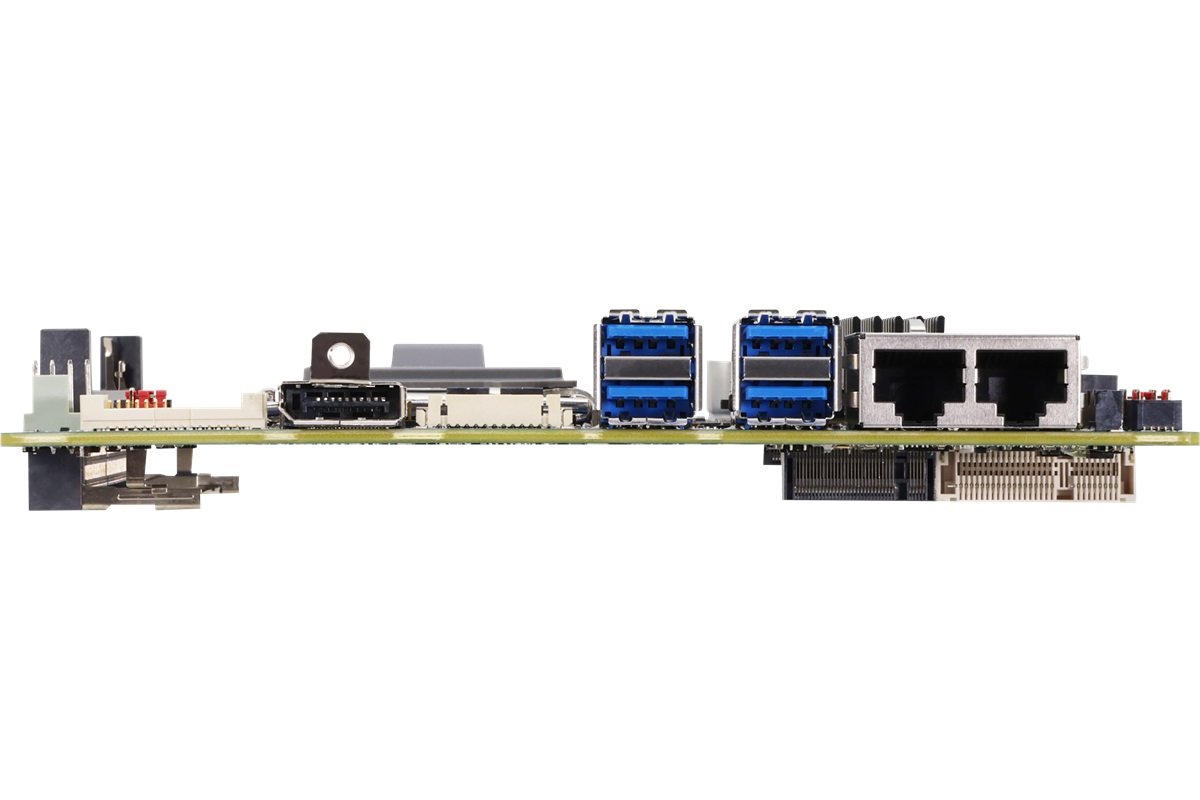

EPIC-RPS7
EPIC Board with 12th/13th/14th Generation Intel® Core™ Processor
Key features:
- 12th/13th/14th Gen Intel® Core™ Processors
- DDR5 SODIMM 4800/5200 MT/s x 2, up to 64 GB
- Triple Display: DP x 1, VGA x 1, LVDS x 1
- 2.5GbE x 1, GbE x 1
- USB 3.2 Gen 2 x 2, SB 3.2 Gen 1 x 2
- M.2 2280 M-Key x 1, M.2 E-Key 2230 x 1, Mini Card x 1
- COM Port x 4 , GPIO 8-bit , TPM 2.0 , DC 12Vin or DC 19Vin ~ 24Vin
| PART NUMBER | EPIC-RPS7-A10-0001 | EPIC-RPS7-A10-0002 |
|---|---|---|
| CPU | LGA 1700 Socket Type (with H610E) | LGA 1700 Socket Type (with H610E) |
| Memory | DDR5 SODIMM x2 | DDR5 SODIMM x2 |
| Display | DP x 1, VGA x 1 (Internal), LVDS x 1 (Optional) | DP x 1 , VGA x 1 (Internal), LVDS x 1 (Internal) |
| Storage | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 |
| LAN | 2.5GbE x 1, GbE x 1 | 2.5GbE x 1, GbE x 1 |
| USB | USB3.2 Gen2 x 2 , USB3.2 Gen1 x 2 , USB2.0 x 4 | USB3.2 Gen2 x 2, USB3.2 Gen1 x 2, USB2.0 x 4 |
| COM Port | COM RS232/422/485 x 2, COM RS232 x 2 | COM RS232/422/485 x 2, COM RS232 x 2 |
| Expansion | mini Card (Full Size), M.2 2280 M key x 1, M.2 2230 E key x 1, | mini Card (Full Size), M.2 2280 M key x 1, M.2 2230 E key x 1 |
| TPM | 2.0 | 2.0 |
| Power | DC+19Vin to +24Vin | DC+12Vin |
| Operating Temperature | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | GPIO 8 bits, Nano SIM x 1 | GPIO 8 bits, Nano SIM x 1 |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
EPIC-RPS7
Product information "EPIC-RPS7"
EPIC Board with 12th/13th/14th Generation Intel® Core™ Processor
Key features:
- 12th/13th/14th Gen Intel® Core™ Processors
- DDR5 SODIMM 4800/5200 MT/s x 2, up to 64 GB
- Triple Display: DP x 1, VGA x 1, LVDS x 1
- 2.5GbE x 1, GbE x 1
- USB 3.2 Gen 2 x 2, SB 3.2 Gen 1 x 2
- M.2 2280 M-Key x 1, M.2 E-Key 2230 x 1, Mini Card x 1
- COM Port x 4 , GPIO 8-bit , TPM 2.0 , DC 12Vin or DC 19Vin ~ 24Vin
| PART NUMBER | EPIC-RPS7-A10-0001 | EPIC-RPS7-A10-0002 |
|---|---|---|
| CPU | LGA 1700 Socket Type (with H610E) | LGA 1700 Socket Type (with H610E) |
| Memory | DDR5 SODIMM x2 | DDR5 SODIMM x2 |
| Display | DP x 1, VGA x 1 (Internal), LVDS x 1 (Optional) | DP x 1 , VGA x 1 (Internal), LVDS x 1 (Internal) |
| Storage | SATA 6.0 Gbps x 2 | SATA 6.0 Gbps x 2 |
| LAN | 2.5GbE x 1, GbE x 1 | 2.5GbE x 1, GbE x 1 |
| USB | USB3.2 Gen2 x 2 , USB3.2 Gen1 x 2 , USB2.0 x 4 | USB3.2 Gen2 x 2, USB3.2 Gen1 x 2, USB2.0 x 4 |
| COM Port | COM RS232/422/485 x 2, COM RS232 x 2 | COM RS232/422/485 x 2, COM RS232 x 2 |
| Expansion | mini Card (Full Size), M.2 2280 M key x 1, M.2 2230 E key x 1, | mini Card (Full Size), M.2 2280 M key x 1, M.2 2230 E key x 1 |
| TPM | 2.0 | 2.0 |
| Power | DC+19Vin to +24Vin | DC+12Vin |
| Operating Temperature | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | GPIO 8 bits, Nano SIM x 1 | GPIO 8 bits, Nano SIM x 1 |
| CPU: | 12th Generation, 13th Generation, 14th Generation |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 64GB |
| Display : | Display Port, LVDS, VGA |
| Storage : | SATA III x2 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN1 x 2 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1, mSATA / mPCIe |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226 |
