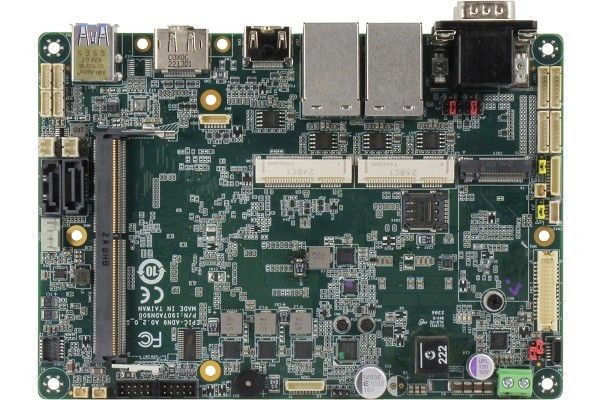

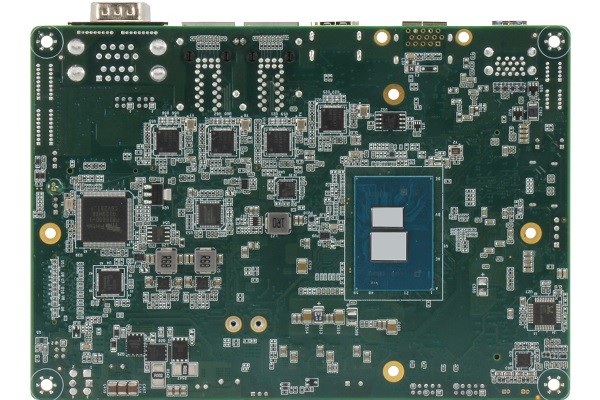

EPIC-ADN9
EPIC Board with Intel Atom® x7000E Series, Intel® Processor N Series, and Intel® Core™ i3-N305 Processors

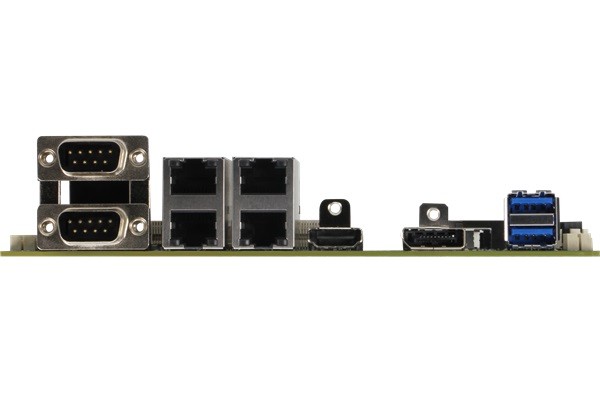

Key features:
- Intel Atom® x7000E Series, Intel® Processor N Series, and Intel®Core™ i3-N305 Processors
- DDR4 3200MHz SODIMM x 1, up to 16GB
- HDMI 1.4b x 1, Dual-Channel LVDS x 1, DP or VGA x 1
- Full Sized mSATA x 1 + SATA III x 1
- Intel® I226-V 2.5GbE x 2 (Up to I226V 2.5GbE x 4 support)
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2242 B-Key x 1, NanoSIM x 1
- COM Port x 6, GPIO 16-bit x 1
- Supports +9V ~ +36V Wide Voltage Input
| PART NUMBER | EPIC-ADN9-A11-0001 | EPIC-ADN9-A11-0002 | EPIC-ADN9-A11-0003 | EPIC-ADN9-A11-0004 |
|---|---|---|---|---|
| CPU | Intel® Core™ i3- N305 | Intel Atom® x7425E | Intel® Processor N97 | Intel® Processor N97 |
| MEMORY | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 |
| DISPLAY | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, VGA x 1, HDMI x 1 |
| STORAGE | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 2 |
| LAN | I226V 2.5GbE x 4 | I226V 2.5GbE x 4 | I226V 2.5GbE x 2 | I226V 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 |
| COM PORT | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 |
| EXPANSION | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, M.2 2242 B-key x 1 |
| TPM | TPM2.0 | Optional | Optional | Optional |
| POWER | +9V to +36V (2 Pin Phoenix Connector) | +9V to +36V (2 Pin Phoenix Connector) | +9V to +36V (2 Pin Phoenix Connector) | +12VIN (2 Pin Phoenix Connector) |
| OPERATING TEMPERATURE | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| OTHERS | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
EPIC-ADN9
Product information "EPIC-ADN9"
EPIC Board with Intel Atom® x7000E Series, Intel® Processor N Series, and Intel® Core™ i3-N305 Processors
Key features:
- Intel Atom® x7000E Series, Intel® Processor N Series, and Intel®Core™ i3-N305 Processors
- DDR4 3200MHz SODIMM x 1, up to 16GB
- HDMI 1.4b x 1, Dual-Channel LVDS x 1, DP or VGA x 1
- Full Sized mSATA x 1 + SATA III x 1
- Intel® I226-V 2.5GbE x 2 (Up to I226V 2.5GbE x 4 support)
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2242 B-Key x 1, NanoSIM x 1
- COM Port x 6, GPIO 16-bit x 1
- Supports +9V ~ +36V Wide Voltage Input
| PART NUMBER | EPIC-ADN9-A11-0001 | EPIC-ADN9-A11-0002 | EPIC-ADN9-A11-0003 | EPIC-ADN9-A11-0004 |
|---|---|---|---|---|
| CPU | Intel® Core™ i3- N305 | Intel Atom® x7425E | Intel® Processor N97 | Intel® Processor N97 |
| MEMORY | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 | DDR4 SODIMM x 1 |
| DISPLAY | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, DP x 1, HDMI x 1 | LVDS x 1, VGA x 1, HDMI x 1 |
| STORAGE | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 1 | SATA 6.0Gbps x 2 |
| LAN | I226V 2.5GbE x 4 | I226V 2.5GbE x 4 | I226V 2.5GbE x 2 | I226V 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 | USB 3.2 Gen 2 x 2, USB 2.0 x 4 |
| COM PORT | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 | RS232/422/485 x 2, RS232 x 4 |
| EXPANSION | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, Full Sized mSATA x 1, M.2 2242 B-key x 1 | Full Sized mPCIe x 1, M.2 2242 B-key x 1 |
| TPM | TPM2.0 | Optional | Optional | Optional |
| POWER | +9V to +36V (2 Pin Phoenix Connector) | +9V to +36V (2 Pin Phoenix Connector) | +9V to +36V (2 Pin Phoenix Connector) | +12VIN (2 Pin Phoenix Connector) |
| OPERATING TEMPERATURE | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| OTHERS | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker | NanoSIM x 1 GPIO 16 bits 5W Speaker |
| Output Voltage: | 12V |
|---|---|
| CPU: | N50, N97, i3-N305, x7425E |
| Processor Family: | Intel® Atom®, Intel® Core |
| Memory : | 16GB |
| Display : | Display Port, HDMI, LVDS, eDP |
| Storage : | SATA III x2 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2242 B-Key x 1, mPCle, mSATA |
| Operating Temperature: | -20 to +70 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 2, i226 |
