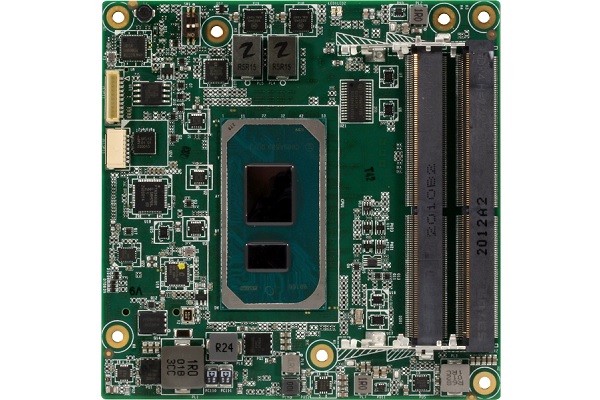

COM-TGUC6
Tiger Lake, COM Express Compact Type 6 with 11th Generation Intel® Core™ Processor Family (formerly Tiger Lake UP3)
Key features:
- DDR4 3200MHz SODIMM x 2, up to 64GB
- VGA x 1, LVDS x 1, DDI x 3
- USB 2.0 x 8, USB 3.2 Gen2 x 4
- PCIe [x1] x 5, PEG [x4] x1
- Intel® Ethernet Controller i225/i226-LM 2.5GbE x 1
- COM Express Type 6, 3.74" x 3.74" (95mm x 95mm)
| PART NUMBER | COM-TGUC6-A10-0001 | COM-TGUC6-A10-0002 | COM-TGUC6W2-A10-0005 |
|---|---|---|---|
| COM EXPRESS TYPE | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 1185G7E | Intel® Core™ i5- 1145G7E | Intel® Core™ i7- 1185GRE |
| MEMORY | DDR4 SODIMM x 2 | DDR4 SODIMM x 2 | DDR4 SODIMM x 2 |
| ECC SUPPORT | — | — | — |
| DISPLAY | VGA x 1, LVDS x 1, DDI x 3 | VGA x 1, LVDS x 1, DDI x 3 | VGA x 1, LVDS x 1, DDI x 3 |
| STORAGE | SATA III x 2 | SATA III x 2 | SATA III x 2 |
| LAN | Intel® i225/i226- LM x 1 | Intel® i225/i226- LM x 1 | Intel® i225/i226- LM x 1 |
| USB | USB 3.2 Gen 2 x 4, USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| EXPANSION | PCIe [x1] x 5 PEG [x4] x 1 | PCIe [x1] x 5 PEG [x4] x 1 | PCIe [x1] x 5 PEG [x4] x 1 |
| POWER | 12V | 12V | 12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
COM-TGUC6
Product information "COM-TGUC6"
Tiger Lake, COM Express Compact Type 6 with 11th Generation Intel® Core™ Processor Family (formerly Tiger Lake UP3)
Key features:
- DDR4 3200MHz SODIMM x 2, up to 64GB
- VGA x 1, LVDS x 1, DDI x 3
- USB 2.0 x 8, USB 3.2 Gen2 x 4
- PCIe [x1] x 5, PEG [x4] x1
- Intel® Ethernet Controller i225/i226-LM 2.5GbE x 1
- COM Express Type 6, 3.74" x 3.74" (95mm x 95mm)
| PART NUMBER | COM-TGUC6-A10-0001 | COM-TGUC6-A10-0002 | COM-TGUC6W2-A10-0005 |
|---|---|---|---|
| COM EXPRESS TYPE | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 1185G7E | Intel® Core™ i5- 1145G7E | Intel® Core™ i7- 1185GRE |
| MEMORY | DDR4 SODIMM x 2 | DDR4 SODIMM x 2 | DDR4 SODIMM x 2 |
| ECC SUPPORT | — | — | — |
| DISPLAY | VGA x 1, LVDS x 1, DDI x 3 | VGA x 1, LVDS x 1, DDI x 3 | VGA x 1, LVDS x 1, DDI x 3 |
| STORAGE | SATA III x 2 | SATA III x 2 | SATA III x 2 |
| LAN | Intel® i225/i226- LM x 1 | Intel® i225/i226- LM x 1 | Intel® i225/i226- LM x 1 |
| USB | USB 3.2 Gen 2 x 4, USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| EXPANSION | PCIe [x1] x 5 PEG [x4] x 1 | PCIe [x1] x 5 PEG [x4] x 1 | PCIe [x1] x 5 PEG [x4] x 1 |
| POWER | 12V | 12V | 12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI |
| Output Voltage: | 12V |
|---|---|
| CPU: | 6305E, i3-1115G4E, i5-1145G7E, i7-1185G7E, i7-1185GRE |
| Processor Family: | Intel® Celeron®, Intel® Core |
| Memory : | 64GB |
| Display : | LVDS, VGA, eDP |
| Storage : | SATA III x2 |
| USB Ports: | USB 2.0 x8, USB 3.2 Gen2 x4 |
| Expansion : | LPC x 1, PCIe 3.0 [x1] x 5, PEG 4.0 [x4] x 1 |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | i225/i226-LM 2.5GbE x 1 |
