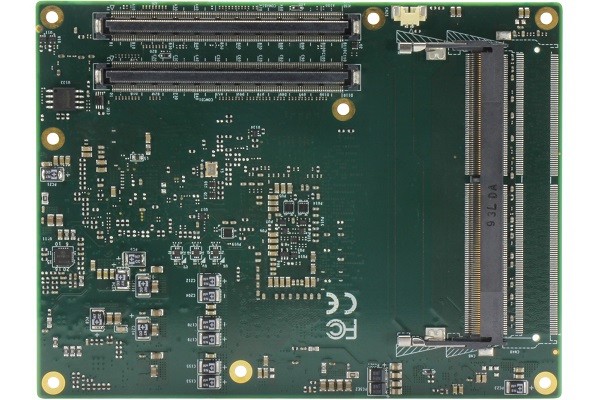

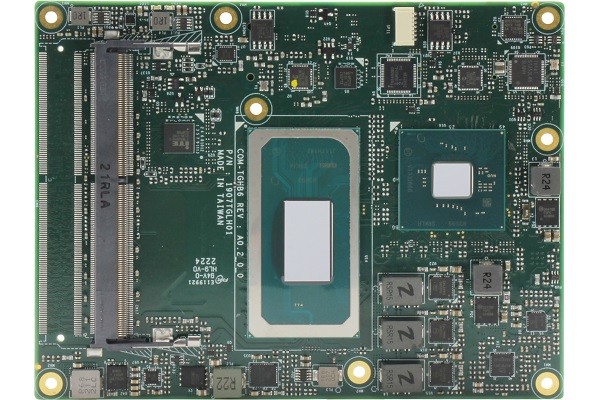

COM-TGHB6
COM Express Type 6 with 11th Gen Intel® Core™/Xeon® W Processors
Key features:
- DDR4 3200MHz SODIMM x 2, up to 64GB
- VGA x 1, LVDS x 1, DDI x 3
- USB 2.0 x 8, USB 3.2 Gen 2 x 4
- PCIe [x1] x 8, PCIe [x16] x 1
- Intel® I226-LM 2.5GbE x 1
- COM Express Type 6, 4.92” x 3.75” (125mm x 95mm)
| PART NUMBER | COM-TGHB6-A11-0001 | COM-TGHB6-A11-0002 | COM-TGHB6-A11-0003 | COMTGHB6W2-A11-0001 |
|---|---|---|---|---|
| COM EXPRESSTYPE | Type 6 | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 11850HE | Intel® Core™ i5- 11500HE | Intel® Core™ i3- 11100HE | Intel® Xeon® W-11865MRE |
| MEMORY | DDR4 SODIMMx 2 | DDR4 SODIMMx 2 | DDR4 SODIMMx 2 | DDR4 SODIMM x 2 |
| ECC SUPPORT | — | — | — | Yes |
| DISPLAY | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1,LVDS x 1 , DDI x 3 |
| STORAGE | SATA III x 4 | SATA III x 4 | SATA III x 4 | SATA III x 4 |
| LAN | Intel® I226-LM x 1 | Intel® I226-LM x 1 | Intel® I226-LM x 1 | Intel® I226-IT x 1 |
| USB | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx / Rx) |
| EXPANSION | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIE [x1] x 8, PEG [x16] x 1 |
| POWER | 12V | 12V | 12V | 12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C~85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
COM-TGHB6
Product information "COM-TGHB6"
COM Express Type 6 with 11th Gen Intel® Core™/Xeon® W Processors
Key features:
- DDR4 3200MHz SODIMM x 2, up to 64GB
- VGA x 1, LVDS x 1, DDI x 3
- USB 2.0 x 8, USB 3.2 Gen 2 x 4
- PCIe [x1] x 8, PCIe [x16] x 1
- Intel® I226-LM 2.5GbE x 1
- COM Express Type 6, 4.92” x 3.75” (125mm x 95mm)
| PART NUMBER | COM-TGHB6-A11-0001 | COM-TGHB6-A11-0002 | COM-TGHB6-A11-0003 | COMTGHB6W2-A11-0001 |
|---|---|---|---|---|
| COM EXPRESSTYPE | Type 6 | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 11850HE | Intel® Core™ i5- 11500HE | Intel® Core™ i3- 11100HE | Intel® Xeon® W-11865MRE |
| MEMORY | DDR4 SODIMMx 2 | DDR4 SODIMMx 2 | DDR4 SODIMMx 2 | DDR4 SODIMM x 2 |
| ECC SUPPORT | — | — | — | Yes |
| DISPLAY | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1, LVDS x 1,DDI x 3 | VGA x 1,LVDS x 1 , DDI x 3 |
| STORAGE | SATA III x 4 | SATA III x 4 | SATA III x 4 | SATA III x 4 |
| LAN | Intel® I226-LM x 1 | Intel® I226-LM x 1 | Intel® I226-LM x 1 | Intel® I226-IT x 1 |
| USB | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4 , USB 2.0 x 8 | USB 3.2 Gen 2 x 4, USB 2.0 x 8 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx / Rx) |
| EXPANSION | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIe [x1] x 8 , PCIe [x16] x 1 | PCIE [x1] x 8, PEG [x16] x 1 |
| POWER | 12V | 12V | 12V | 12V |
| TEMPERATURE | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C~85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI | LPC, GPIO 8-bit, I2C, SMBus, SPI |
| Output Voltage: | 12V |
|---|---|
| CPU: | W-11865MLE, W-11865MRE, i3-11100HE, i5-11500HE, i7-11850HE |
| Processor Family: | Intel® Core, Intel® Xeon |
| Memory : | 64GB |
| Display : | LVDS, VGA, eDP |
| Storage : | SATA III X 4 |
| USB Ports: | USB 2.0 x8, USB 3.2 Gen2 x4 |
| Expansion : | LPC x 1 |
| Expansion : | PCIe 3.0 [x1] x 8, PEG 4.0 x 16 |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | Intel® Ethernet Controller I226-V ×1 (2.5GbE) |
