COM-RAPC6

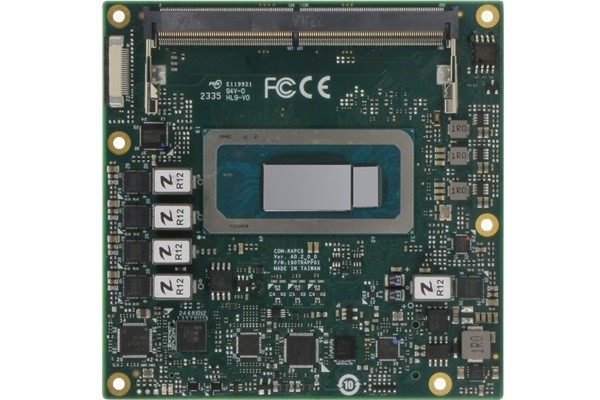

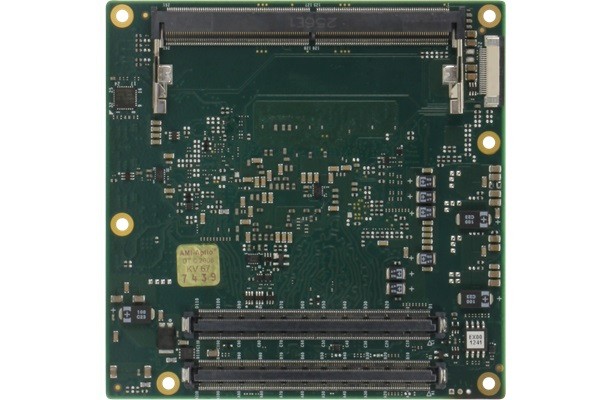

COM Express Type 6 Compact Size with 13th Generation Intel® Core™ i7/i5/i3 Processor SoC
Key features:
- 13th Generation Intel® Core™ i7/i5/i3 Processor SoC, max TDP 45W
- DDR5 SODIMM x 2, up to 64GB (non-ECC)
- Intel i226 2.5GbE x 1
- SATA 6.0Gbps x 2
- USB3.2 Gen2 x 4, USB2.0 x 8
- Up to 6 PCIe devices
- 12V DC input
- COM Express Type 6, Compact size, 95 x 95mm
| PART NUMBER | COM-RAPC6-A10-0001 | COM-RAPC6-A10-0003 | COM-RAPC6-A10-0005 | COM-RAPC6W2-A10-0001 |
|---|---|---|---|---|
| COM EXPRESS TYPE | Type 6 | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 13800HE | Intel® Core™ i3- 1320PE | Intel® Processor U300E | Intel® Core™ i7- 13800HRE |
| MEMORY | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 |
| ECC SUPPORT | — | — | — | — |
| DISPLAY | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 |
| LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS |
| STORAGE | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 |
| LAN | I226-ITx1 | I226-ITx1 | I226-ITx1 | I226-ITx1 |
| USB | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| EXPANSION | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1) + PCIe [x4] x 1 + PCIe [x8] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1), PCIe [x4] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1), PCIe [x4] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1) + PCIe [x4] x 1 + PCIe [x8] x 1 |
| POWER | 12V | 12V | 12V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
COM-RAPC6
Product information "COM-RAPC6"
COM Express Type 6 Compact Size with 13th Generation Intel® Core™ i7/i5/i3 Processor SoC
Key features:
- 13th Generation Intel® Core™ i7/i5/i3 Processor SoC, max TDP 45W
- DDR5 SODIMM x 2, up to 64GB (non-ECC)
- Intel i226 2.5GbE x 1
- SATA 6.0Gbps x 2
- USB3.2 Gen2 x 4, USB2.0 x 8
- Up to 6 PCIe devices
- 12V DC input
- COM Express Type 6, Compact size, 95 x 95mm
| PART NUMBER | COM-RAPC6-A10-0001 | COM-RAPC6-A10-0003 | COM-RAPC6-A10-0005 | COM-RAPC6W2-A10-0001 |
|---|---|---|---|---|
| COM EXPRESS TYPE | Type 6 | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ i7- 13800HE | Intel® Core™ i3- 1320PE | Intel® Processor U300E | Intel® Core™ i7- 13800HRE |
| MEMORY | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 |
| ECC SUPPORT | — | — | — | — |
| DISPLAY | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 |
| LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS |
| STORAGE | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 |
| LAN | I226-ITx1 | I226-ITx1 | I226-ITx1 | I226-ITx1 |
| USB | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| EXPANSION | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1) + PCIe [x4] x 1 + PCIe [x8] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1), PCIe [x4] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1), PCIe [x4] x 1 | PCIe x 4 lanes ([x1] x 4 or [x2] x 2 or [x4] x 1) + PCIe [x4] x 1 + PCIe [x8] x 1 |
| POWER | 12V | 12V | 12V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus |
| CPU: | i3-1315UE, i3-1320PE, i3-13300HE, i5-1340PE, i5-13600HE, i7-1370PE, i7-13800HE, i7-13800HRE |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 64GB |
| Display : | LVDS, VGA, eDP |
| Storage : | SATA 6Gb/s x 2 |
| USB Ports: | USB 2.0 x8, USB 3.2 Gen2 x4 |
| Expansion : | 1 × PCIe x1, PCIe[x8] x 1, PCIe x4 x 1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | Intel® Ethernet Controller I226-V ×1 (2.5GbE) |
