COM-ARHC6

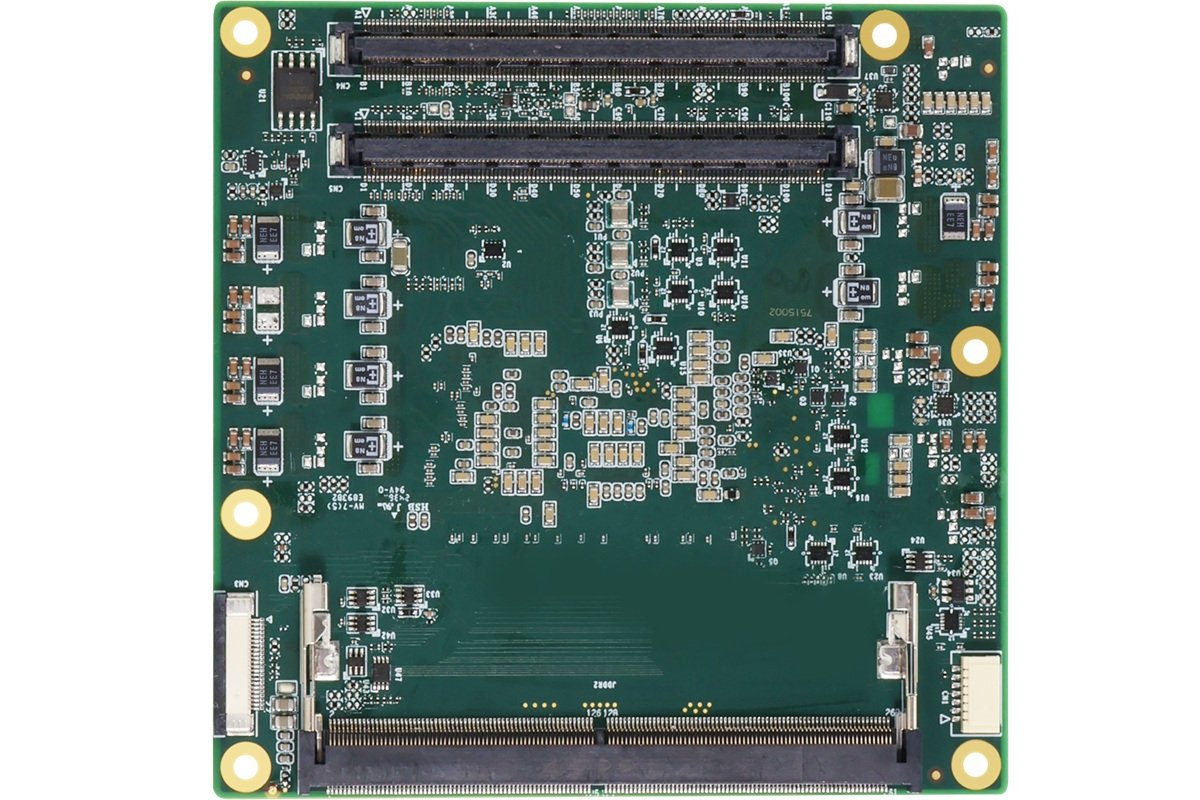

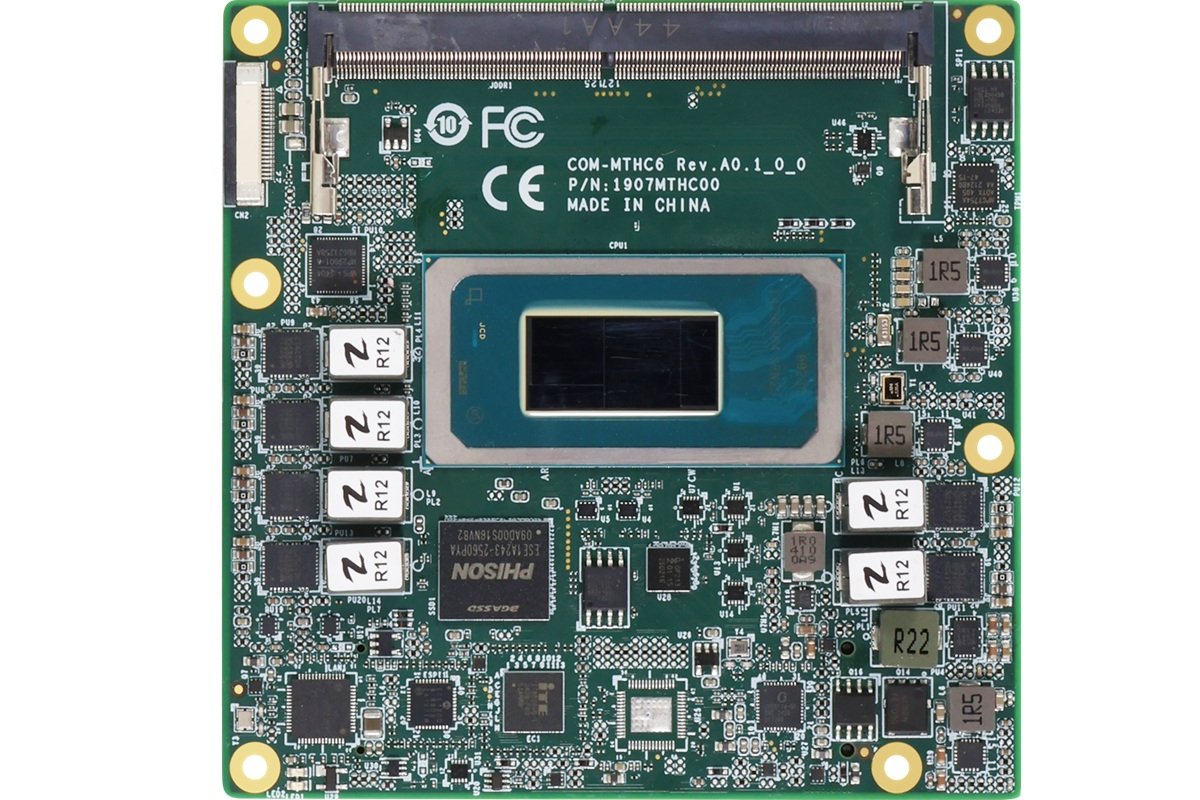

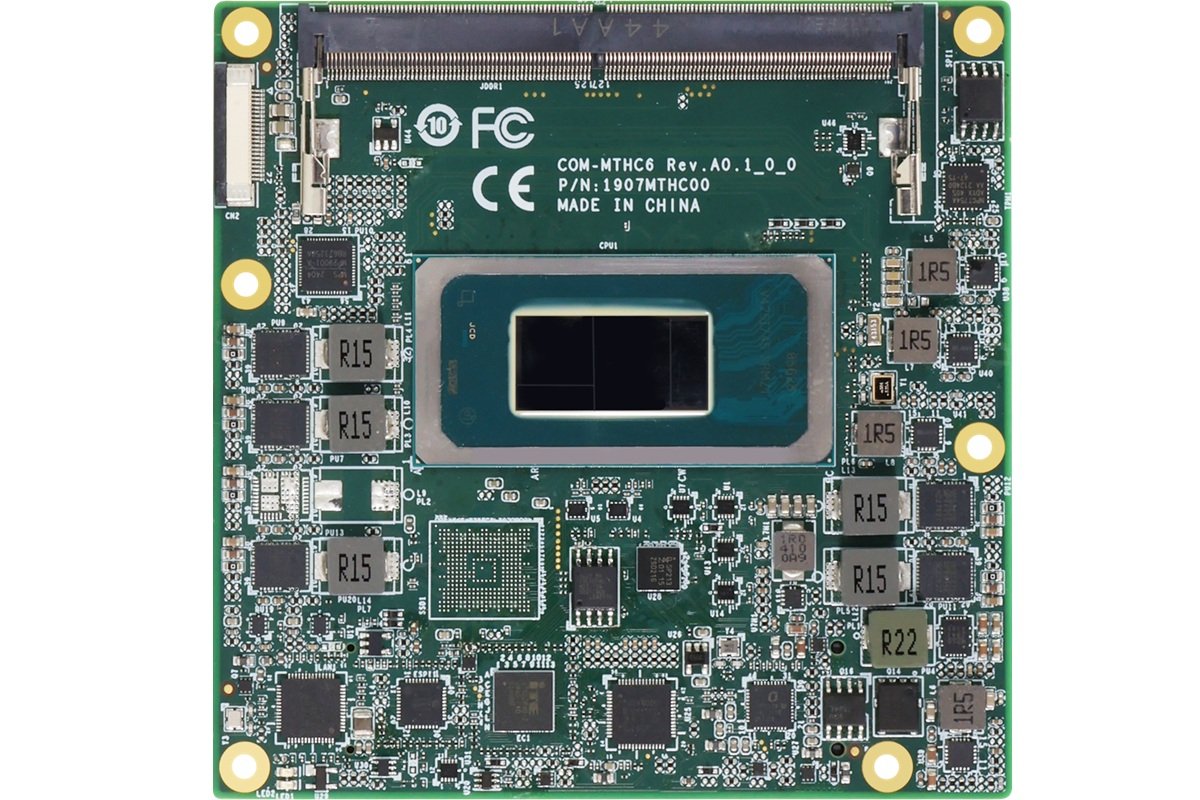

COM-ARHC6: High-Performance COM Express Type 6 Board
The COM-ARHC6 sets the benchmark for compact, high-efficiency computing solutions. Powered by Intel® Core™ Ultra 200H Series Processors, it brings exceptional processing capability paired with robust features ideal for a variety of applications. With support for DDR5 6400MHz Dual-Channel SODIMM, the board can support up to 128GB of RAM, ensuring seamless multitasking and performance.
Enjoy versatile display support through VGA Switch DDI, LVDS colay eDP, and dual DDI options, along with extensive connectivity via USB 2.0 and USB 3.2 Gen 2 ports. Expansion potential is maximized through multiple PCIe configurations, making it adaptable for specialized applications. Featuring an Intel® Ethernet Controller I226 for high-speed 2.5GbE connectivity, this board is built for the future of industrial and embedded solutions.
Designed with a compact footprint of 3.75” x 3.75” and supporting a 9V to 16V power input, the COM-ARHC6 is engineered for powerful performance in a small form factor.
COM Express Type 6 Compact Size with Intel® Core™ Ultra 200H Series Processors
Key features:
- DDR5 6400MHz Dual-Channel SODIMM x 2, up to 128GB
- VGA Switch DDI x 1, LVDS colay eDP x 1, DDI x 2
- USB 2.0 x 8, USB 3.2 Gen 2 x 4
- PCIe [x1] x 4, PCIe [x4] x 1, PEG [x8] + [x4] + [x4]
- Intel® Ethernet Controller I226, 2.5GbE x 1
- 9V ~ 16V Power Input
- COM Express Type 6, 3.75” x 3.75” (95mm x 95mm)
| PART NUMBER | COM-ARHC6-A10-0001 | COM-ARHC6-A10-0002 | COM-ARHC6-A10-0003 |
|---|---|---|---|
| COM Express Type | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ Ultra 9 285H | Intel® Core™ Ultra 7 255H | Intel® Core™ Ultra 5 225H |
| Memory | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 |
| ECC support | — | — | — |
| Display | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 |
| LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS |
| Storage | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 |
| LAN | I226-ITx1 | I226-ITx1 | I226-ITx1 |
| USB | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| Expansion | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 |
| Power | 9V~16V | 9V~16V | 9V~16V |
| Temp | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus |
If you are interested in our product, you can contact us through our contact page.
COM-ARHC6: High-Performance COM Express Type 6 Board
The COM-ARHC6 sets the benchmark for compact, high-efficiency computing solutions. Powered by Intel® Core™ Ultra 200H Series Processors, it brings exceptional processing capability paired with robust features ideal for a variety of applications. With support for DDR5 6400MHz Dual-Channel SODIMM, the board can support up to 128GB of RAM, ensuring seamless multitasking and performance.
Enjoy versatile display support through VGA Switch DDI, LVDS colay eDP, and dual DDI options, along with extensive connectivity via USB 2.0 and USB 3.2 Gen 2 ports. Expansion potential is maximized through multiple PCIe configurations, making it adaptable for specialized applications. Featuring an Intel® Ethernet Controller I226 for high-speed 2.5GbE connectivity, this board is built for the future of industrial and embedded solutions.
Designed with a compact footprint of 3.75” x 3.75” and supporting a 9V to 16V power input, the COM-ARHC6 is engineered for powerful performance in a small form factor.
COM Express Type 6 Compact Size with Intel® Core™ Ultra 200H Series Processors
Key features:
- DDR5 6400MHz Dual-Channel SODIMM x 2, up to 128GB
- VGA Switch DDI x 1, LVDS colay eDP x 1, DDI x 2
- USB 2.0 x 8, USB 3.2 Gen 2 x 4
- PCIe [x1] x 4, PCIe [x4] x 1, PEG [x8] + [x4] + [x4]
- Intel® Ethernet Controller I226, 2.5GbE x 1
- 9V ~ 16V Power Input
- COM Express Type 6, 3.75” x 3.75” (95mm x 95mm)
| PART NUMBER | COM-ARHC6-A10-0001 | COM-ARHC6-A10-0002 | COM-ARHC6-A10-0003 |
|---|---|---|---|
| COM Express Type | Type 6 | Type 6 | Type 6 |
| CPU | Intel® Core™ Ultra 9 285H | Intel® Core™ Ultra 7 255H | Intel® Core™ Ultra 5 225H |
| Memory | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 | DDR5 SODIMM x 2 |
| ECC support | — | — | — |
| Display | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 | VGA x 1, DDI x 3 |
| LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS | 18/24bits 2CH LVDS |
| Storage | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 | SATA 6.0Gbps x 2 |
| LAN | I226-ITx1 | I226-ITx1 | I226-ITx1 |
| USB | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 | USB 2.0 x 8, USB3.2 Gen 2 x 4 |
| UART | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) | 2-Wire UART x 2 (Tx/Rx) |
| Expansion | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 | PEG 4.0 [x8] + [x4] + [x4] PCIe 4.0 [x4] x 1 PCIe 4.0 [x1] x 4 |
| Power | 9V~16V | 9V~16V | 9V~16V |
| Temp | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus | LPC, GPIO 8-bit, I2C, SMBus |
| CPU: | Ultra 5 Processor 225H, Ultra 7 Processor 255H -, Ultra 9 Processor 285H |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 128GB |
| Display : | Display Port, HDMI, LVDS, VGA |
| Storage : | SATA 6Gb/s x 2 |
| USB Ports: | USB 2.0 x8, USB 3.2 Gen2 x4 |
| Expansion : | NVMe SSD PCIe 4.0 x1, PCIe x4, PCIe x4 x 1, PEG 4.0 x 16 |
| Power Requirement: | 9-16V |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | Intel® Ethernet Controller I226-V ×1 (2.5GbE) |
