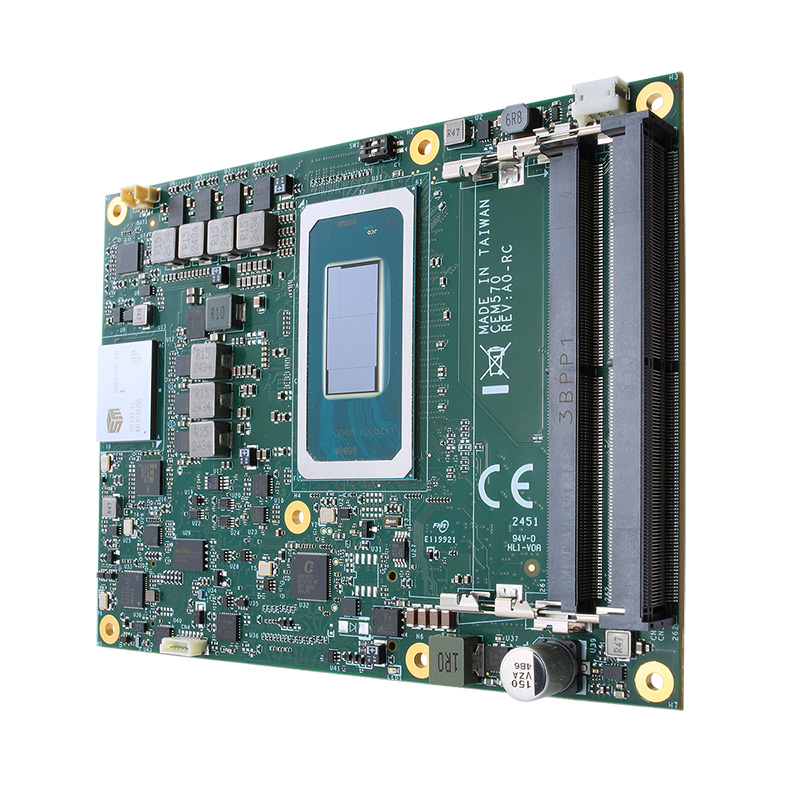

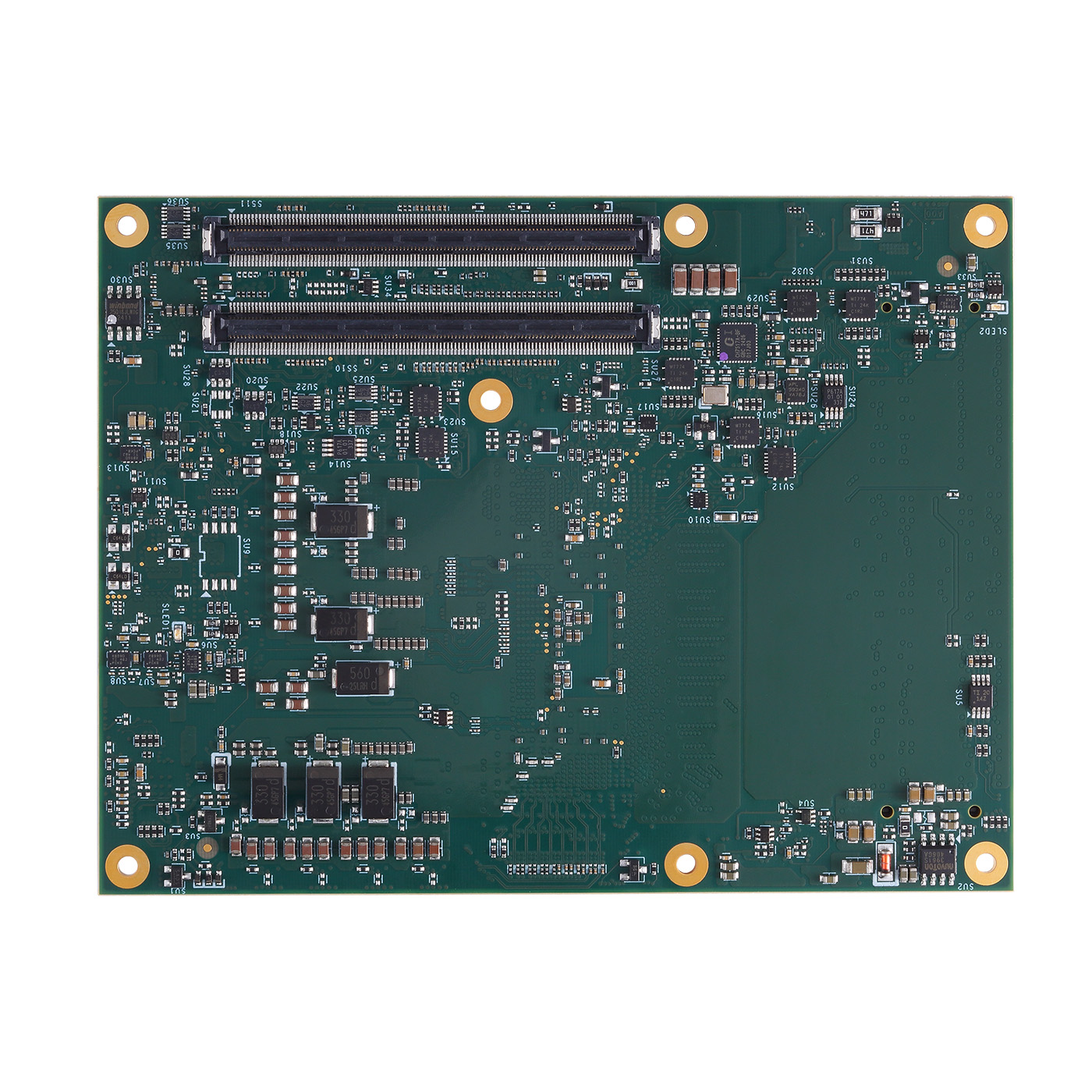

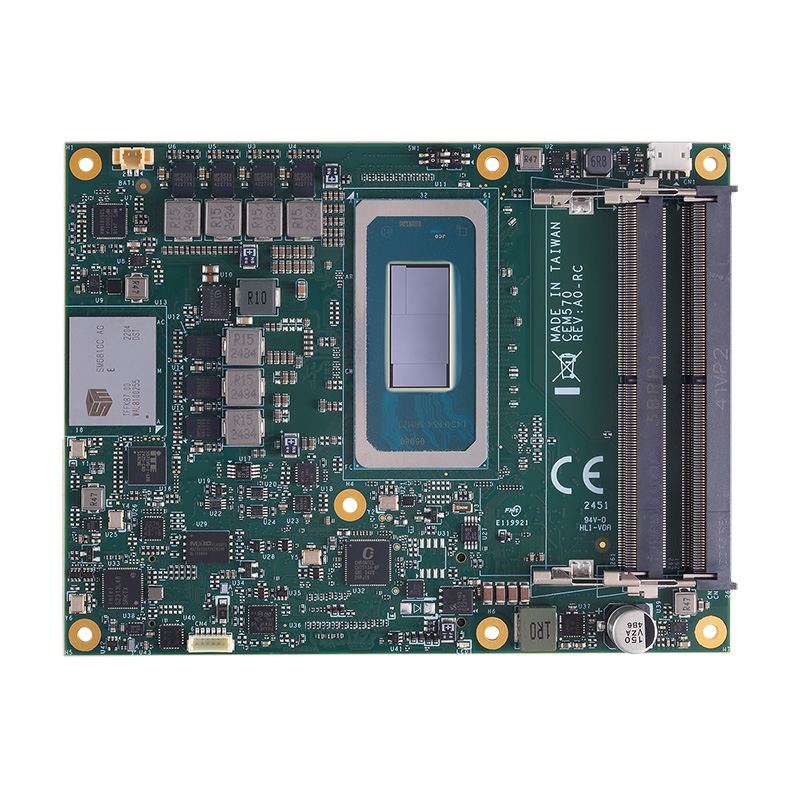

CEM570
Key features:
- Intel® Core™ Ultra processors family (Meteor Lake U/H)
- Dual channel DDR5-5600 SO-DIMM, up to 96GB
- Up to 20 PCIe lanes
- 2 SATA Gen3
- 4 USB 3.2 Gen2 and 8 USB 2.0
- Supports up to 1TB NVMe storage
- Supports TPM 2.0
| Model | CEM570 U7-155H | CEM570 U5-125U |
| CPU | COM Express Type 6 Basic module with Intel® Core™ U7-155H | COM Express Type 6 Basic module with Intel® Core™ U5-125U |
| Display | DDI, LVDS | DDI, LVDS |
| Storage | 64GB NVMe | 64GB NVMe |
| LAN | 2.5GbE LAN | 2.5GbE LAN |
| Other | TPM | TPM |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
CEM570
Product information "CEM570"
Key features:
- Intel® Core™ Ultra processors family (Meteor Lake U/H)
- Dual channel DDR5-5600 SO-DIMM, up to 96GB
- Up to 20 PCIe lanes
- 2 SATA Gen3
- 4 USB 3.2 Gen2 and 8 USB 2.0
- Supports up to 1TB NVMe storage
- Supports TPM 2.0
| Model | CEM570 U7-155H | CEM570 U5-125U |
| CPU | COM Express Type 6 Basic module with Intel® Core™ U7-155H | COM Express Type 6 Basic module with Intel® Core™ U5-125U |
| Display | DDI, LVDS | DDI, LVDS |
| Storage | 64GB NVMe | 64GB NVMe |
| LAN | 2.5GbE LAN | 2.5GbE LAN |
| Other | TPM | TPM |
| CPU: | Intel® Core™ Ultra processors |
|---|---|
| Processor Family: | Intel® Core™ Ultra processors family (Meteor Lake U/H) |
| Memory : | DDR5: 2 × 262-pin DDR5-5600 SO-DIMM, Max. 96 GB (PCB: V.B) |
| Display : | 18/24-bit single/dual channel (optional eDP 1.4b HBR3: 5120 x 3200@60Hz), DisplayPort 2.1 HBR3 (4096 x 2304 @60Hz), HDMI 2.1 (4096 x 2304 @60Hz), LVDS |
| Storage : | NVMe for up to 1TB, SATA 6Gb/s x 2 |
| USB Ports: | USB 3.2 Gen2 x4 |
| Expansion : | 1 x PCIe Gen4 x8 (PEG), 8 x PCIe Gen3 x1 (HSIO) |
| Power Requirement: | RTC battery: 2.0V to 3.3V, VSB: 4.75 to 5.25V, Vin: 8.5 to 20V, support for AT and ATX modes |
| Operating Temperature : | 0 to +60 degC / -40 to +85 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | 1 x I²C, 1 x LPC, 1 x SPI, 2 x TX/RX , 4-CH in/out GPIO, 10/100/1000/2500 Mbps Ethernet with Intel® I226 x 1, Smart Battery support |
