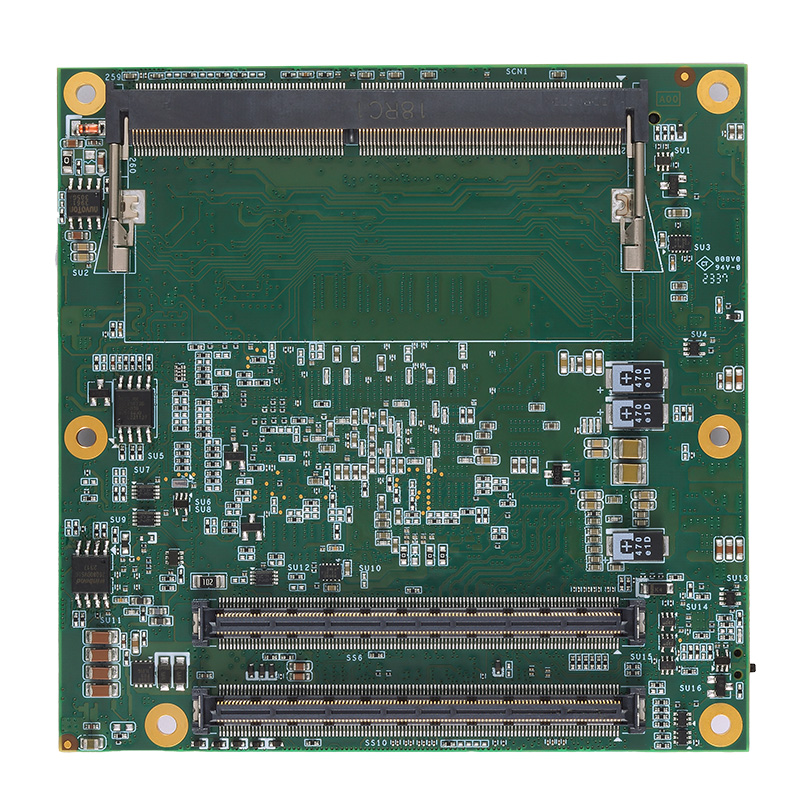

CEM322
Key features:
- Intel® Pentium®/Celeron® or Atom® x6000 series processors
- Dual-channel DDR4-3200 SO-DIMM, up to 32GB
- Up to 6 lanes of PCI Express
- 2 SATA 3.0
- 2 USB 3.2 Gen1 and 8 USB 2.0
- Supports up to 64GB eMMC 5.1 (by request)
- Supports TPM 2.0
| Model | CEM322-x6413E | CEM322-x6414RE |
| CPU | COM Express Type 6 Compact module with Intel Atom® x6413E | COM Express Type 6 Compact module with Intel Atom® x6414RE |
| Display | DDI, LVDS | DDI, LVDS |
| USB | 3.2 Gen 1 | 3.2 Gen 1 |
| LAN | GbE LAN | GbE LAN |
| Other | N/A | wide temperature support |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
CEM322
Product information "CEM322"
Key features:
- Intel® Pentium®/Celeron® or Atom® x6000 series processors
- Dual-channel DDR4-3200 SO-DIMM, up to 32GB
- Up to 6 lanes of PCI Express
- 2 SATA 3.0
- 2 USB 3.2 Gen1 and 8 USB 2.0
- Supports up to 64GB eMMC 5.1 (by request)
- Supports TPM 2.0
| Model | CEM322-x6413E | CEM322-x6414RE |
| CPU | COM Express Type 6 Compact module with Intel Atom® x6413E | COM Express Type 6 Compact module with Intel Atom® x6414RE |
| Display | DDI, LVDS | DDI, LVDS |
| USB | 3.2 Gen 1 | 3.2 Gen 1 |
| LAN | GbE LAN | GbE LAN |
| Other | N/A | wide temperature support |
| CPU: | Intel Atom® x6000E Series, Intel Atom® x6425RE/x6413E/x6414RE, Intel® Pentium® J6426 |
|---|---|
| Memory : | Dual-Channel DDR4 DDR4 SO-DIMM ×2 Max. 32 GB (Non-ECC) |
| Display : | 18/24-bit single/dual channel (optional eDP 1.4b HBR3: 5120 x 3200@60Hz), DDI, LVDS |
| Storage : | SATA III x2, eMMC 5.1, up to 64GB |
| USB Ports: | USB 2.0 x8, USB3.2 GEN1 x 2 (header) |
| Expansion : | PCIe x1 x 5, PCIe x1 x 6 |
| Power Requirement: | AT: +12V, ATX: +12V, +5VSB |
| Operating Temperature : | 0 to +60 degC / -40 to +85 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | 1 x I²C, 1 x LPC, 1 x SPI, 2 x TX/RX , 4-CH in/out GPIO, 10/100/1000/2500 Mbps Ethernet with Intel® I226 x 1, Smart Battery support |
