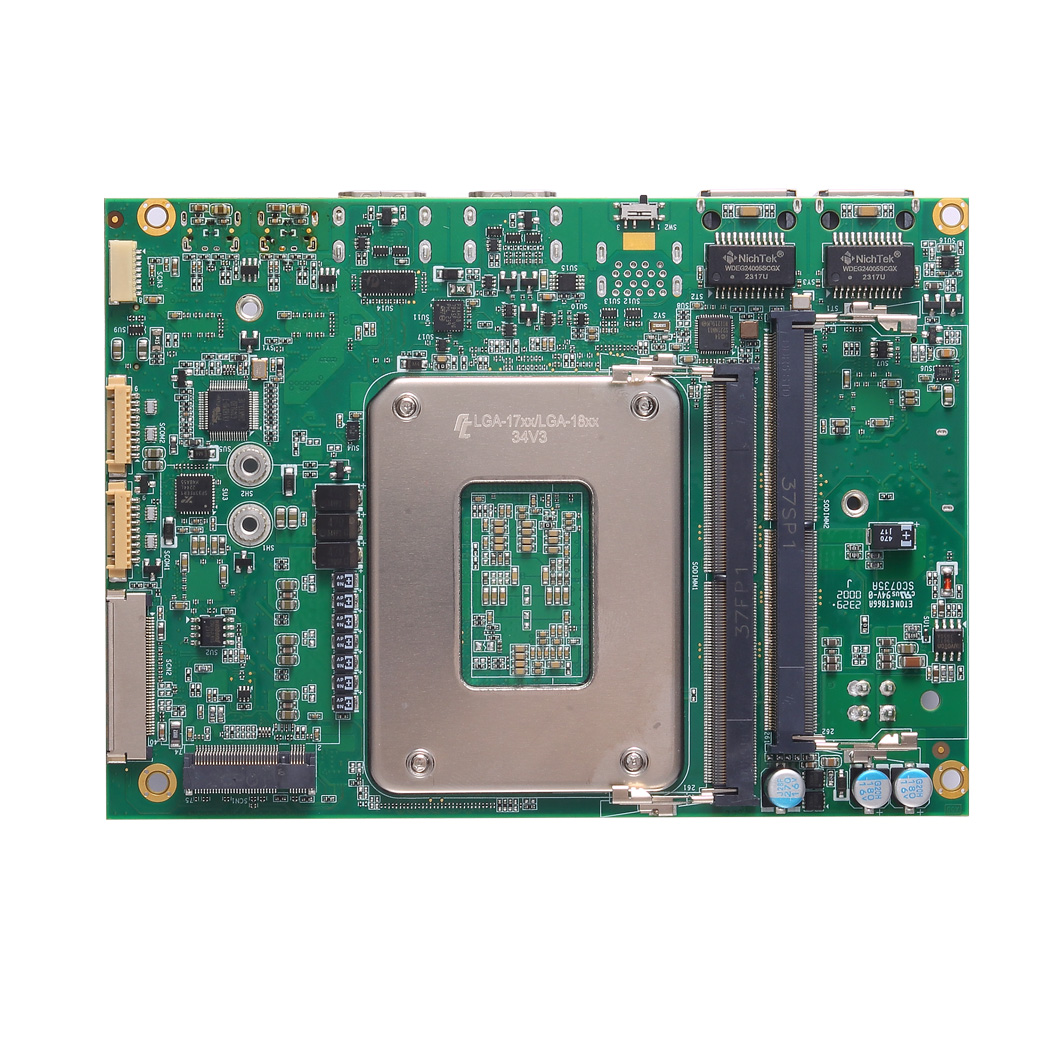

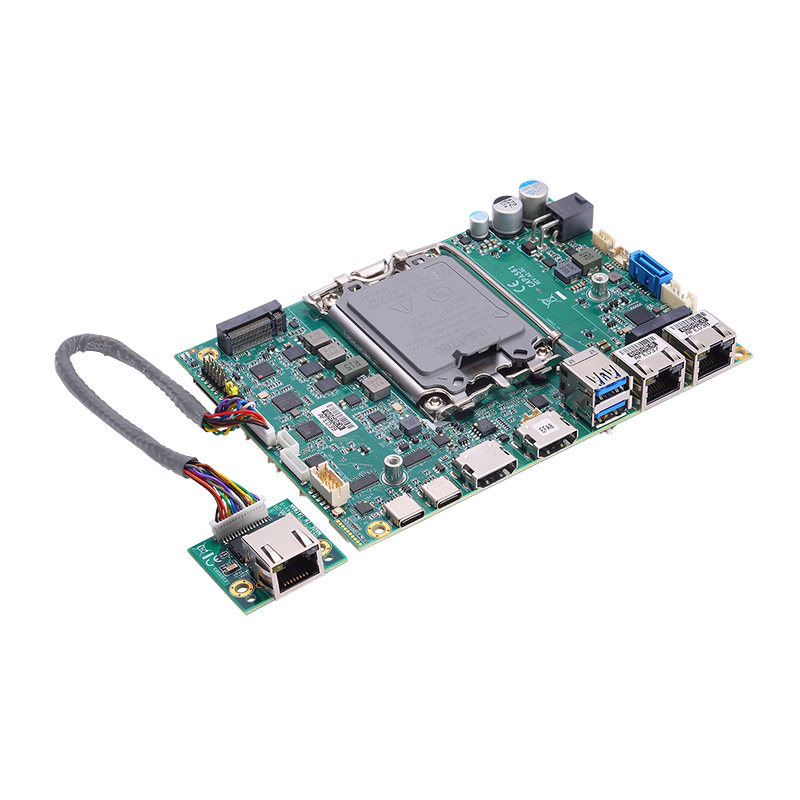

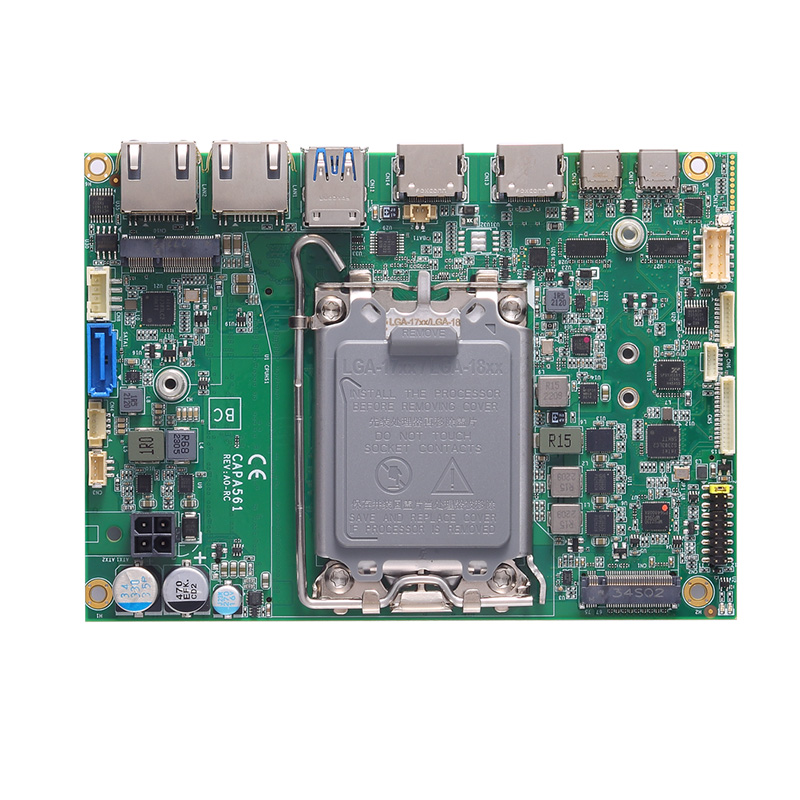

CAPA561
Key features:
- LGA1700 socket
- 2 DDR5 SO-DIMM for up to 64GB of memory
- GbE LAN and 2.5GbE LAN ports
- 3 M.2 expansion slots
| Model | CAPA561-LGA-3LH | CAPA561-LGA-3LC | CAPA561-LGA-2LH | CAPA561-LGA-2LC |
| Board | 3.5" embedded SBC | 3.5" embedded SBC | 3.5" embedded SBC | 3.5" embedded SBC |
| Processor | LGA1700 socket | LGA1700 socket | LGA1700 socket | LGA1700 socket |
| Display | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP |
| LAN | GbE & 2 2.5GbE LAN | GbE & 2 2.5GbE LAN | GbE LAN, 2.5GbE LAN | GbE LAN, 2.5GbE LAN |
| Other | heatsink | cooler | heatsink | cooler |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
CAPA561
Product information "CAPA561"
Key features:
- LGA1700 socket
- 2 DDR5 SO-DIMM for up to 64GB of memory
- GbE LAN and 2.5GbE LAN ports
- 3 M.2 expansion slots
| Model | CAPA561-LGA-3LH | CAPA561-LGA-3LC | CAPA561-LGA-2LH | CAPA561-LGA-2LC |
| Board | 3.5" embedded SBC | 3.5" embedded SBC | 3.5" embedded SBC | 3.5" embedded SBC |
| Processor | LGA1700 socket | LGA1700 socket | LGA1700 socket | LGA1700 socket |
| Display | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP | DisplayPort in USB Type-C, HDMI, eDP |
| LAN | GbE & 2 2.5GbE LAN | GbE & 2 2.5GbE LAN | GbE LAN, 2.5GbE LAN | GbE LAN, 2.5GbE LAN |
| Other | heatsink | cooler | heatsink | cooler |
| CPU: | LGA1700 socket |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core |
| Memory : | 64GB |
| Display : | Display Port, HDMI, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB 2.0 x2, USB3.2 GEN2 x 2 (Rear), USB Type-C x2 |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, SIM |
| Power Requirement: | 12v |
| Operating Temperature: | -20 to +70 degC |
| Ethernet Technical Data: | I226-V/IT 2.5GbE x 2, i219, 1GbE RJ-45 x 1 |
