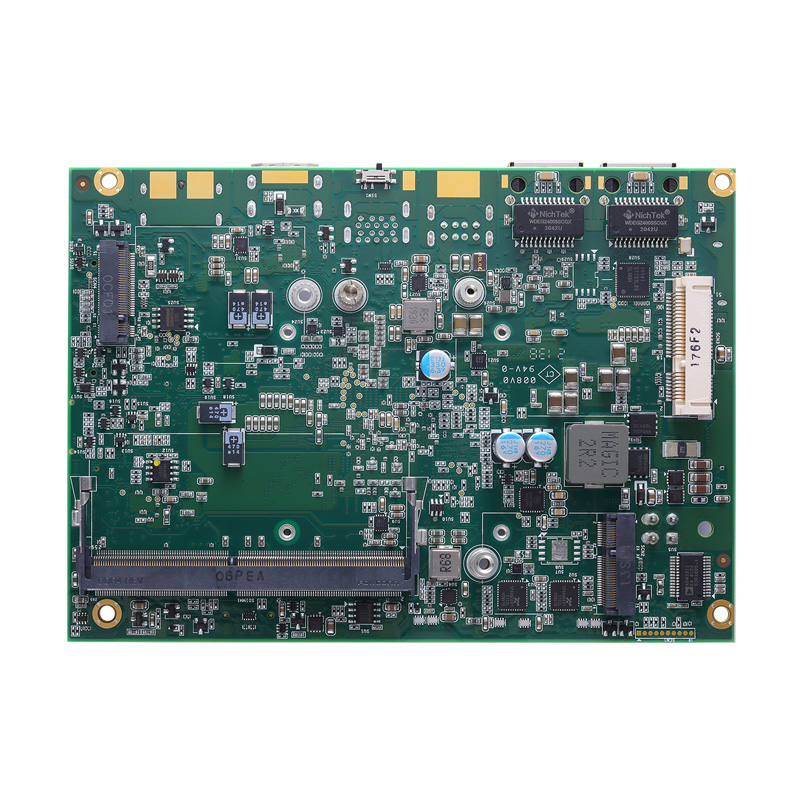

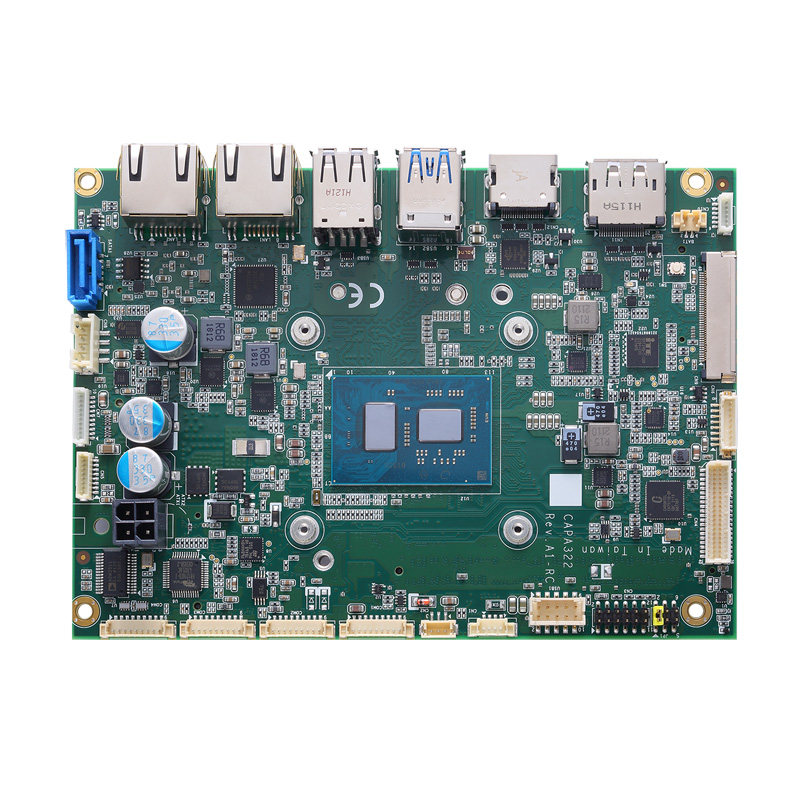

CAPA322
Key features:
- Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor
- 1 DDR4 SO-DIMM for up to 32GB
- 4 USB 2.0 and 2 USB 3.2 Gen2
- 1 PCI Express Mini Card or mSATA
- 1 M.2 Key E and 1 M.2 Key B
| Model | CAPA322-J6412-A | CAPA322-N6210-A | CAPA322-x6413E-A | CAPA322-N6210-B | CAPA322-J6412-B | CAPA322-x6413E-B |
| Processor | Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W | Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W) | Intel Atom® x6413E processor (1.5-3.0 GHz, 9W) | Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W) | Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W) | Intel Atom® x6413E processor (1.5-3.0 GHz, 9W) |
| Display | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort |
| LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN |
| Storage | mSATA | mSATA | mSATA | NvMe M.2 Key B | NvMe M.2 Key B | NvMe M.2 Key B |
| Other | heatsink | heatsink | heatsink | heatsink | heatsink | heatsink |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
CAPA322
Product information "CAPA322"
Key features:
- Intel® Celeron® processor N6210/J6412 or Intel Atom® x6413E processor
- 1 DDR4 SO-DIMM for up to 32GB
- 4 USB 2.0 and 2 USB 3.2 Gen2
- 1 PCI Express Mini Card or mSATA
- 1 M.2 Key E and 1 M.2 Key B
| Model | CAPA322-J6412-A | CAPA322-N6210-A | CAPA322-x6413E-A | CAPA322-N6210-B | CAPA322-J6412-B | CAPA322-x6413E-B |
| Processor | Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W | Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W) | Intel Atom® x6413E processor (1.5-3.0 GHz, 9W) | Intel® Celeron® processor N6210 (1.2-2.6 GHz, 6.5W) | Intel® Celeron® processor J6412 (2.0-2.6 GHz, 10W) | Intel Atom® x6413E processor (1.5-3.0 GHz, 9W) |
| Display | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort | HDMI/LVDS/DisplayPort |
| LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN | 2.5GbE LAN |
| Storage | mSATA | mSATA | mSATA | NvMe M.2 Key B | NvMe M.2 Key B | NvMe M.2 Key B |
| Other | heatsink | heatsink | heatsink | heatsink | heatsink | heatsink |
| CPU: | J6412, N6210, x6413E |
|---|---|
| Processor Family: | Intel® Atom®, Intel® Celeron® |
| Memory : | 32GB |
| Display : | Display Port, HDMI, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, mSATA |
| Power Requirement: | 12V to 24V |
| Operating Temperature: | -40 to +80 degC |
| Ethernet Technical Data: | RJ45 x2, Intel I226LM 2.5GbE |
