Artista-IoT M4
Key features:

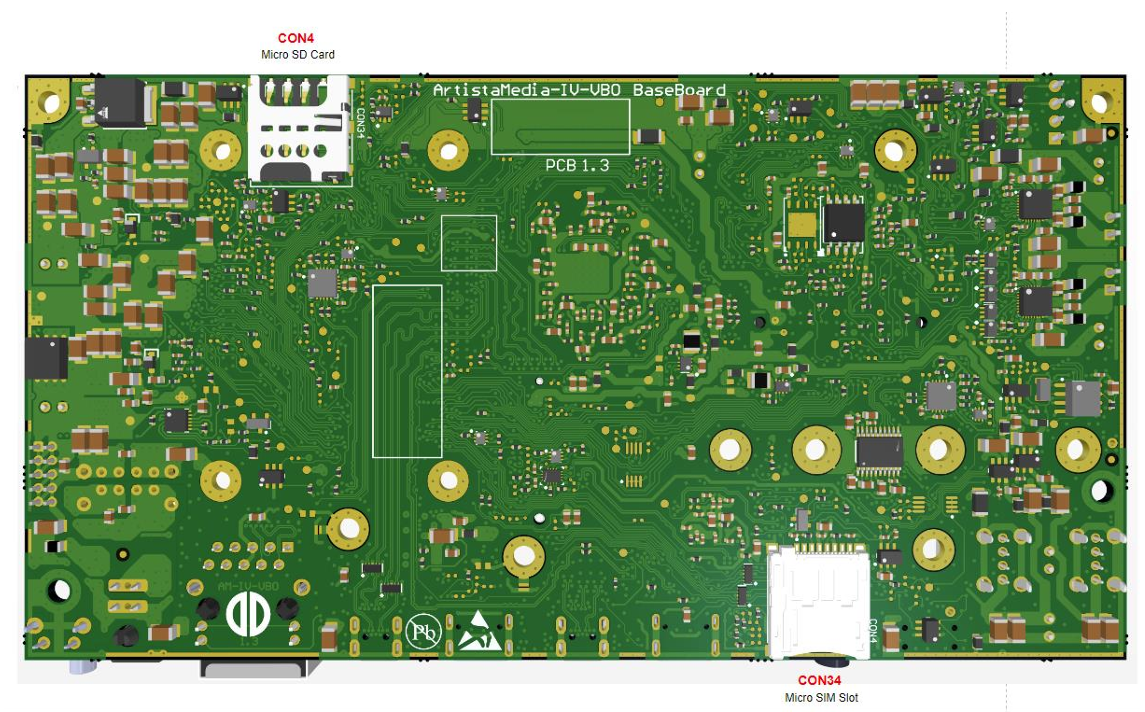

- Baseboard ArtistaMEDIA-IV
- with Raspberry Pi Compute Module CM4 or CM5
- CM4: 64-bit quad-core ARM Cortex-A72 processor @1.5GHz, up to 8GB RAM (LPDDR4)
- CM5: 64-bit quad-core ARM Cortex-A76 processor @2.5GHz, up to 16GB RAM (LPDDR4)
- for V-by-One TFT displays up to 4K resolution (3840x2160)
- 4K eDP version (coming soon in Q1/2026)
- 1GB Ethernet, supports IEEE1588
- 1x HDMI 2.0 Input (only for VBO variant)
- 1x HDMI 2.0 Output
- Up to 4Kp60 dual HDMI
- Vcc 24V
- M.2 B Key interface e.g. for connecting wireless modules
- Camera interface available (only with CM4)
- Options: dualband Wi-Fi 5, Bluetooth 5.0, internal or external antenna
- CAN bus via add-on I/O boardÂ
- Lite module enabling external SD card boot functionality
Software options:
Various operating systems and specially adapted softwares are available -Â See more
Accessories:
- Artista-IO Board (our SAP no. AR-01-100)
- IF406 IR Sensor (our SAP no.ZU-02-406)
- IR Remote Control (our SAP no. RC-10-007)
- IF440 Light Sensor (our SAP no. ZU-02-509)
- IF389 Temperature Sensor (our SAP no. ZU-02-389)
- IF398 OSD Keypad (our SAP no. ZU-02-398)
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
Artista-IoT_M4
Product information "Artista-IoT M4"
Key features:
- Baseboard ArtistaMEDIA-IV
- with Raspberry Pi Compute Module CM4 or CM5
- CM4: 64-bit quad-core ARM Cortex-A72 processor @1.5GHz, up to 8GB RAM (LPDDR4)
- CM5: 64-bit quad-core ARM Cortex-A76 processor @2.5GHz, up to 16GB RAM (LPDDR4)
- for V-by-One TFT displays up to 4K resolution (3840x2160)
- 4K eDP version (coming soon in Q1/2026)
- 1GB Ethernet, supports IEEE1588
- 1x HDMI 2.0 Input (only for VBO variant)
- 1x HDMI 2.0 Output
- Up to 4Kp60 dual HDMI
- Vcc 24V
- M.2 B Key interface e.g. for connecting wireless modules
- Camera interface available (only with CM4)
- Options: dualband Wi-Fi 5, Bluetooth 5.0, internal or external antenna
- CAN bus via add-on I/O boardÂ
- Lite module enabling external SD card boot functionality
Software options:
Various operating systems and specially adapted softwares are available -Â See more
Accessories:
- Artista-IO Board (our SAP no. AR-01-100)
- IF406 IR Sensor (our SAP no.ZU-02-406)
- IR Remote Control (our SAP no. RC-10-007)
- IF440 Light Sensor (our SAP no. ZU-02-509)
- IF389 Temperature Sensor (our SAP no. ZU-02-389)
- IF398 OSD Keypad (our SAP no. ZU-02-398)
