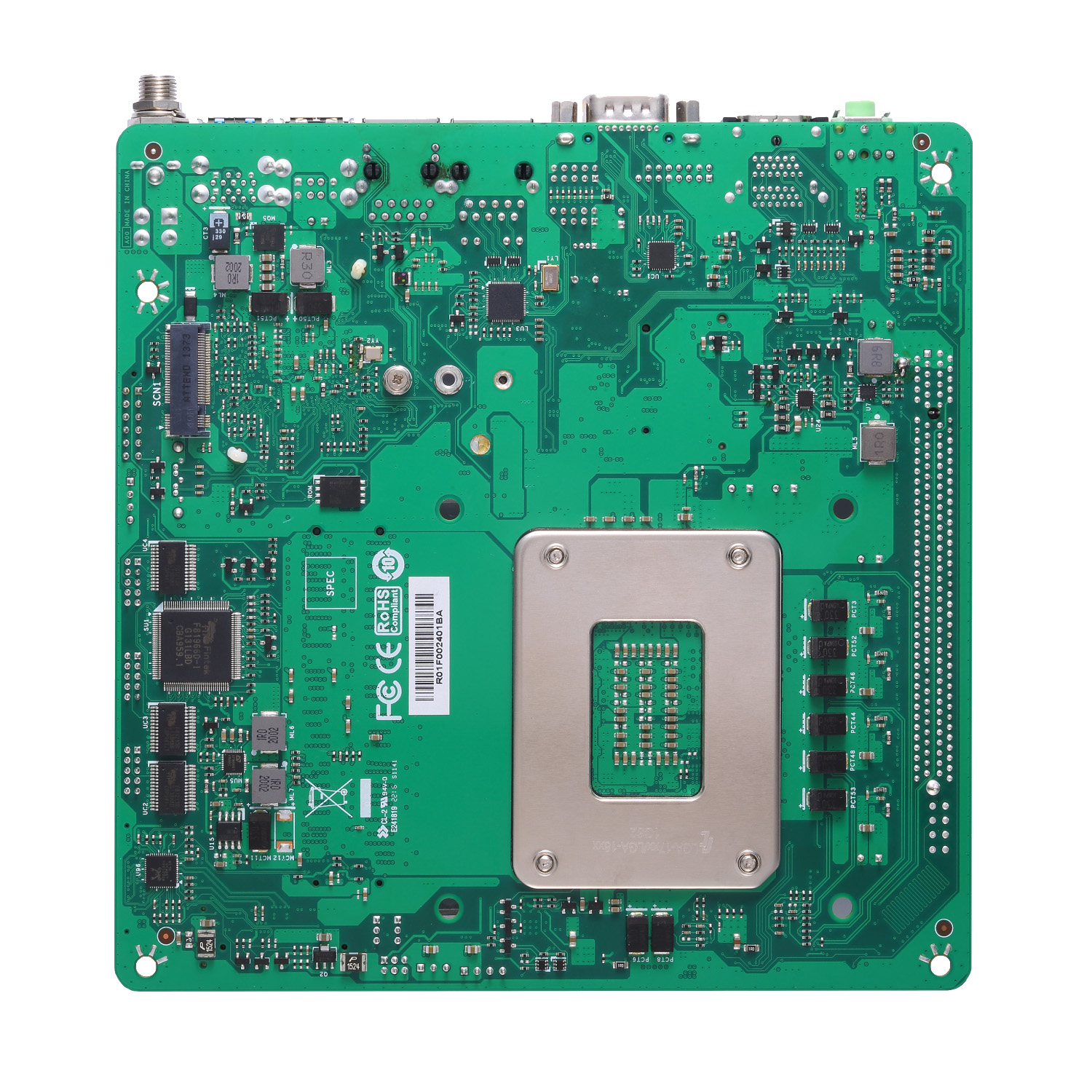

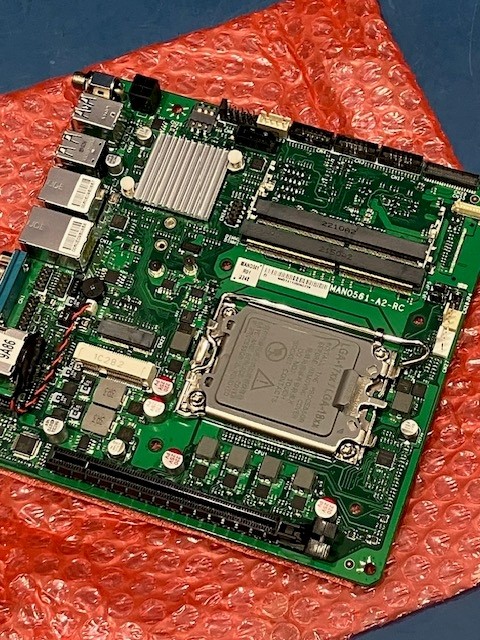

AXIOMTEK MANO561 Mini-ITX LGA1700
10 xÂ
| AXIOMTEK
MANO561 Mini-ITX LGA1700 Key features:Â |
- LGA1700 14th/13th/12th gen Intel® Coreâ„¢ i9/i7/i5/i3, Pentium® or Celeron® processorÂ
- Intel® H610 chipsetÂ
- 2 DDR4 SO-DIMM for up to 64GB memoryÂ
- 2 USB 3.2 Gen1 and 5 USB 2.0Â
- 2.5GbE LAN and 4 COM portsÂ
- 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key BÂ
- 1 full-size PCI Express Mini Card slotÂ
- 1 SATA-600Â
- 12 to 24 VDC power in
| Model | MANO561-H-B | MANO561-H-S |
| Processor | Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor |
| Storage | USB 3.2, M.2 | USB 3.2, M.2 |
| LAN | dual GbE LAN | dual GbE LAN |
| Display | HDMI, VGA, LVDS | HDMI, VGA, LVDS |
| Other | HD audio, and bulk packing | HD audio, and single box packing |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
DT-00-438
Product information " AXIOMTEK MANO561 Mini-ITX LGA1700"
10 xÂ
| AXIOMTEK
MANO561 Mini-ITX LGA1700 Key features:Â |
- LGA1700 14th/13th/12th gen Intel® Coreâ„¢ i9/i7/i5/i3, Pentium® or Celeron® processorÂ
- Intel® H610 chipsetÂ
- 2 DDR4 SO-DIMM for up to 64GB memoryÂ
- 2 USB 3.2 Gen1 and 5 USB 2.0Â
- 2.5GbE LAN and 4 COM portsÂ
- 1 PCIe x16, 1 M.2 Key E, and 1 M.2 Key BÂ
- 1 full-size PCI Express Mini Card slotÂ
- 1 SATA-600Â
- 12 to 24 VDC power in
| Model | MANO561-H-B | MANO561-H-S |
| Processor | Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor | Mini-ITX SBC with LGA1700 14th/13th/12th gen Intel® Core™ processor |
| Storage | USB 3.2, M.2 | USB 3.2, M.2 |
| LAN | dual GbE LAN | dual GbE LAN |
| Display | HDMI, VGA, LVDS | HDMI, VGA, LVDS |
| Other | HD audio, and bulk packing | HD audio, and single box packing |
| CPU: | LGA1700 socket supporting 14th / 13th / 12th Gen Intel® Core™ i9 / i7 / i5 / i3, Pentium® and Celeron® processors (up to 65W) |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core™ (12th / 13th / 14th Gen), Intel® Pentium® |
| Memory : | DDR4: 2 × 260-pin DDR4-3200 SO-DIMM, Max. 64 GB (PCB: V.A) |
| Display : | HDMI 1.4 ×2, LVDS, VGA |
| Storage : | 1 × M.2 Key B (2242 / 3042 / 3052), SATA 6.0 Gb/s x 1 |
| USB Ports: | USB 2.0 x5, USB3.2 GEN1 x 2 (header) |
| Expansion : | 1 × M.2 Key B (2242 / 3042 / 3052), 1 × PCIe Mini Card slot (PCIe x1 & USB 2.0), M.2 2230 E-Key ×1, PCIe x16 (Gen5) ×1 |
| Power Requirement: | 12–24V 4-pin ATX connector, 12–24V DC Jack |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | 1 × Intel® I219-V (1GbE), 1 × Intel® I225-V (2.5GbE), 3 × RS-232, Audio: Realtek ALC897, Line-out / Mic-in, Board thickness: 1.6 mm, Digital I/O: 8-channel programmable I/O, Dimensions: 170 × 170 mm, Watchdog Timer: 255 levels (1–255 sec) |
