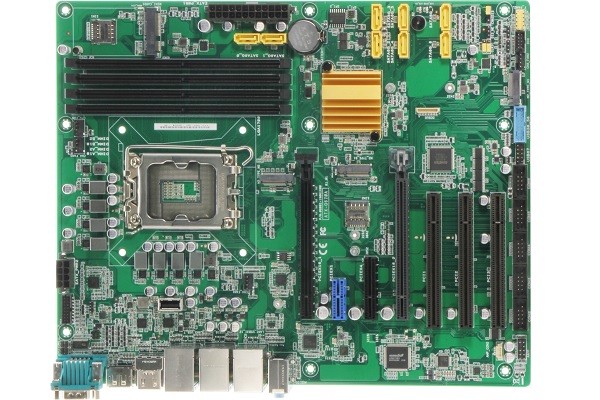

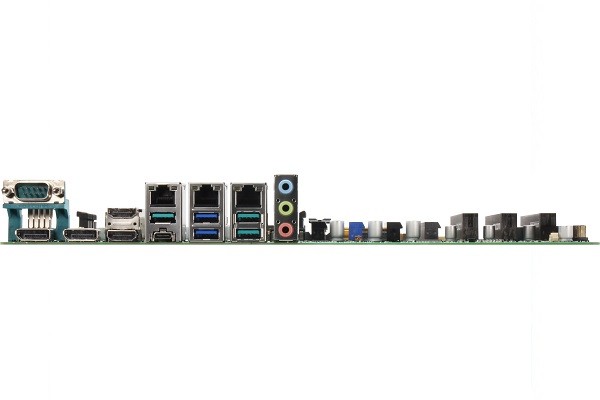

ATX-Q670A
ATX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors, TDP Max. 125W, DDR5 DRAM, Multiple Display Ports
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors
- DDR5 DRAM Support, 4000MHz, Max. 192GB
- Four Independent Display: HDMI 2.0 x 2, DP x 2, VGA x 1
- Dual Intel® GbE (Optional: additional LAN 3 I226-LM x 1)
- M.2 2280/2242 M-Key x 2, M.2 3042/3052 B-Key x 1 + Micro SIM Slot x 1, Mini PCIe x 1 + Micro SIM Slot x 1
- USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 4, USB 2.0 x 3 (Optional: USB Type-C x 1, USB 3.2 Gen 2 x 3)
- SATA x 8
- Switchable USB Power feature for USB device reset
- Bootable feature in rear USB Port for enhanced security
- Onboard TPM 2.0
| PART NUMBER | ATX-Q670A-A10-2L | ATX-Q670A-A10-3L-226 |
|---|---|---|
| CPU | LGA1700 Socket | LGA1700 Socket |
| RAM | DDR5 4000MHz | DDR5 4000MHz |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | HDMI x 2, DP x 2, VGA Header x 1 | HDMI x 2 DP x 2 VGA Header x 1 |
| STORAGE | SATA III x 8, M.2 2280 M-Key x 1, M.2 2242/80 M-Key x 1 | SATA III x 8 M.2 2280 M-Key x 1 M.2 2242/80 M-Key x 1 |
| LVDS | — | — |
| LAN | Intel®GbE x 2 | Intel®GbE x 3 |
| USB | USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 2, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 2.0 x 1 (Vertical Type A) | USB 3.2 Gen 2 x 3 USB 3.2 Gen 1 x 2 USB 3.0 Header x 1 USB 2.0 Header x 1 USB 2.0 x 1 (Vertical Type A) |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe [x16] x 1, PCIe [x1] x 1, PCIe [x4] x 1, PCIe [x16] x 1 (4 Lanes), PCI Slot x 3, M.2 3042/3052 B-Key x 1 (PCIe/USB), Mini PCIe Slot x 1 (PCIe/USB), Micro SIM Card Slot x 1 | PCIe [x16] x 1 PCIe [x1] x 1 PCIe [x4] x 1 PCIe [x16] x 1 (4 Lanes) PCI Slot x 3 M.2 3042/3052 B-Key x 1 (PCIe/USB) Mini PCIe Slot x 1 (PCIe/USB) Micro SIM Card Slot x 1 |
| POWER | ATX | ATX |
| TPM | TPM2.0 onboard | TPM2.0 onboard |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
ATX-Q670A
Product information "ATX-Q670A"
ATX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors, TDP Max. 125W, DDR5 DRAM, Multiple Display Ports
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors
- DDR5 DRAM Support, 4000MHz, Max. 192GB
- Four Independent Display: HDMI 2.0 x 2, DP x 2, VGA x 1
- Dual Intel® GbE (Optional: additional LAN 3 I226-LM x 1)
- M.2 2280/2242 M-Key x 2, M.2 3042/3052 B-Key x 1 + Micro SIM Slot x 1, Mini PCIe x 1 + Micro SIM Slot x 1
- USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 4, USB 2.0 x 3 (Optional: USB Type-C x 1, USB 3.2 Gen 2 x 3)
- SATA x 8
- Switchable USB Power feature for USB device reset
- Bootable feature in rear USB Port for enhanced security
- Onboard TPM 2.0
| PART NUMBER | ATX-Q670A-A10-2L | ATX-Q670A-A10-3L-226 |
|---|---|---|
| CPU | LGA1700 Socket | LGA1700 Socket |
| RAM | DDR5 4000MHz | DDR5 4000MHz |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | HDMI x 2, DP x 2, VGA Header x 1 | HDMI x 2 DP x 2 VGA Header x 1 |
| STORAGE | SATA III x 8, M.2 2280 M-Key x 1, M.2 2242/80 M-Key x 1 | SATA III x 8 M.2 2280 M-Key x 1 M.2 2242/80 M-Key x 1 |
| LVDS | — | — |
| LAN | Intel®GbE x 2 | Intel®GbE x 3 |
| USB | USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 2, USB 3.0 Header x 1, USB 2.0 Header x 1, USB 2.0 x 1 (Vertical Type A) | USB 3.2 Gen 2 x 3 USB 3.2 Gen 1 x 2 USB 3.0 Header x 1 USB 2.0 Header x 1 USB 2.0 x 1 (Vertical Type A) |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | PCIe [x16] x 1, PCIe [x1] x 1, PCIe [x4] x 1, PCIe [x16] x 1 (4 Lanes), PCI Slot x 3, M.2 3042/3052 B-Key x 1 (PCIe/USB), Mini PCIe Slot x 1 (PCIe/USB), Micro SIM Card Slot x 1 | PCIe [x16] x 1 PCIe [x1] x 1 PCIe [x4] x 1 PCIe [x16] x 1 (4 Lanes) PCI Slot x 3 M.2 3042/3052 B-Key x 1 (PCIe/USB) Mini PCIe Slot x 1 (PCIe/USB) Micro SIM Card Slot x 1 |
| POWER | ATX | ATX |
| TPM | TPM2.0 onboard | TPM2.0 onboard |
| TEMP | 32°F ~ 140°F (0°C ~ 60°C) | 32°F ~ 140°F (0°C ~ 60°C) |
| CPU: | 12th Generation, 13th Generation, 14th Generation, LGA1700 socket, Max. 125W TDP |
|---|---|
| Processor Family: | Intel® Core™ (12th / 13th / 14th Gen) |
| Memory : | DDR5 4000 MHz DDR5 UDIMM ×4 Max. 192 GB |
| Display : | DP 1.4 ×2, DP up to 4096 × 2160 @60Hz, HDMI 2.0 ×2, HDMI up to 4096×2160 @60Hz, VGA, VGA up to 1920 × 1200 @60Hz |
| Storage : | SATA ×8 |
| USB Ports: | USB 2.0 ×3, USB3.2 GEN2 x 2 (Rear), USB 3.2 Gen 1 ×4 |
| Expansion : | M.2 3042 B-Key x1, M.2 3052 B-key x 1, micro SIM x1 |
| Expansion : | M.2 2230 E-Key ×1, Mini PCIe ×1, PCIe Gen 3 [x1] slot ×2, PCIe Gen 3 [x4] slot ×1, PCIe [x16] slot ×1 |
| Power Requirement: | ATX 24-pin + ATX 12V connector, ATX power |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | ATX form factor (305 mm × 244 mm), Audio: Realtek ALC897, Line-out / Mic-in, Bootable rear USB port for enhanced security, Dual Intel® GbE LAN, Intel® Q670 Chipset, Switchable USB power for USB device reset, Watchdog timer |
