Product information "STMGF_Series"

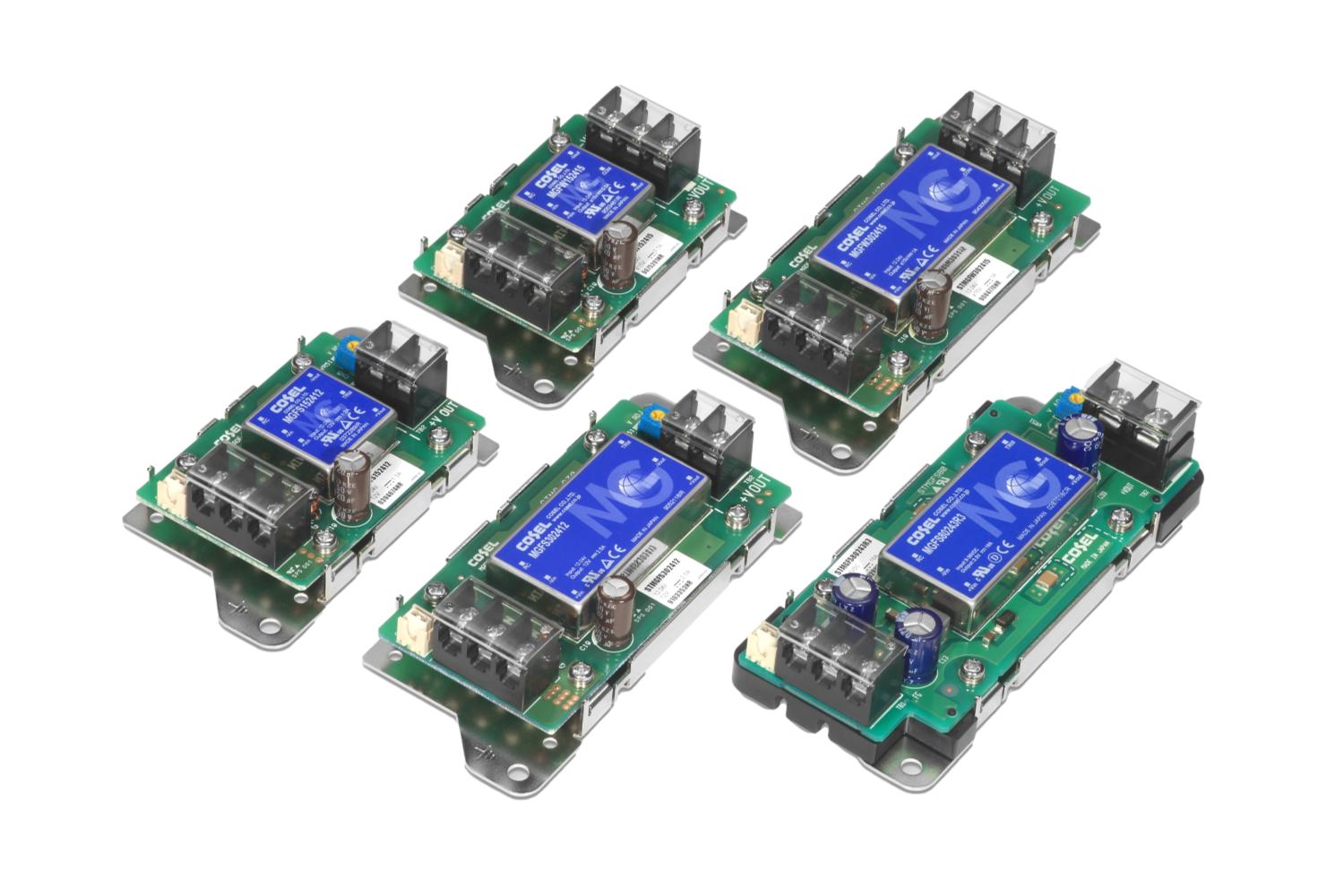

The STMGFS Series from Cosel is a plug and play isolated DC/DC power converter, with a wide input range.



Available in the following power ratings: 15W / 30W / 80W



Features:

  •          Built in output voltage adjustment
  •          Available with dual outputs
  •          Overvoltage and overcurrent protection
  •          Remote on/off
  •          High efficiency up to 92%
  •          5 year warranty
  •          < 1U high
  •          Available with case cover and DIN rail attachment
  •          EN60950-1, EN62368-1

 Example of model numbers: STMGFS152405 / STMGFW302405 / STMGFS802415

Cooling Method: Convection
Format: PCB Mount
Input Voltage: 9 - 36V, 18 - 76V
No. of Outputs: Single
Operating Temp Range: -20 to +70 degC
Output Power: 80W
Power Format: PCB Mount
Power Type: DC-DC
